How to Calculate Solar Panel, Battery, and Inverter Size for a Solar Energy System

Designing a solar power system requires more than simply choosing solar panels and batteries. To ensure reliable performance and cost effectiveness, it is important to correctly calculate the required solar panel capacity, battery storage capacity, and solar inverter size. Whether you are planning a residential solar installation, an off-grid system, or a commercial energy storage project, understanding these calculations can help you build a system that meets your energy needs.

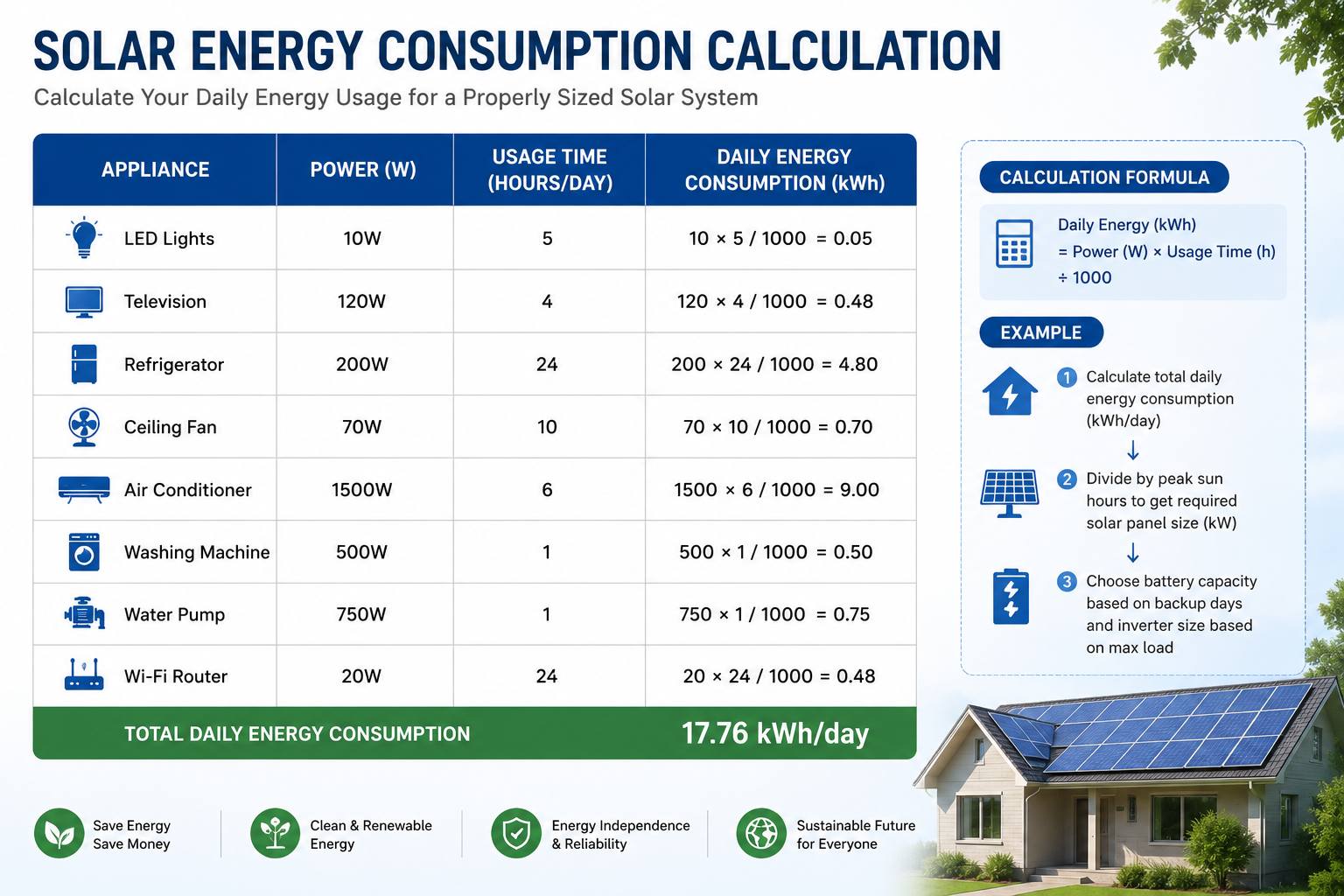

Step 1: Calculate Your Daily Energy Consumption

The first step is determining how much electricity you use each day. This is usually measured in kilowatt-hours (kWh).

You can calculate daily energy consumption using the following formula:

Daily Energy Consumption (kWh) = Power (W) × Operating Hours ÷ 1000

For example:

Total Daily Consumption:0.5 + 9 + 4.8 = 14.3 kWh/day

This number becomes the foundation for sizing your solar panels, battery bank, and inverter.

Step 2: Calculate Solar Panel Capacity

After determining daily energy usage, calculate how much solar generation is required.

Formula:

Solar Panel Size (kW) = Daily Energy Consumption ÷ Peak Sun Hours

Assume:

• Daily consumption = 14.3 kWh
• Peak sunlight = 5 hours/day

Calculation:14.3 ÷ 5 = 2.86 kW

Considering system losses (10%–20%), it is recommended to increase capacity:

Recommended Solar Array Size = 3.2–3.5 kW

If using 550W solar panels:

3.3 kW ÷ 550W ≈ 6 panels

Choosing slightly larger capacity can improve performance during cloudy weather and seasonal variations.

Step 3: Calculate Battery Storage Capacity

Battery sizing depends on how many hours or days of backup power are required.

Formula:

Battery Capacity (kWh) = Daily Energy Consumption × Backup Days

For one day of backup:

14.3 kWh ×1 = 14.3 kWh

Considering 90% usable depth of discharge for lithium batteries:

14.3 ÷ 0.9 = 15.9 kWh

Recommended battery capacity:

16 kWh lithium battery system

For commercial and industrial projects, battery capacity may range from 50 kWh to several MWh depending on operational requirements.

Step 4: Calculate Solar Inverter Size

The inverter must be capable of handling the maximum simultaneous load.

Formula:

Inverter Size (kW) = Total Running Load × Safety Factor

Suppose the maximum load operating at one time is:

• Air Conditioner = 1.5 kW
• Refrigerator = 0.2 kW
• Lighting = 0.1 kW

Total:1.8 kW

Applying a 25% safety margin:1.8 × 1.25 = 2.25 kW

Recommended inverter:3 kW solar inverter

For larger commercial systems, common inverter sizes include:

• 30kW solar inverter
• 50kW solar inverter
• 100kW solar inverter
• 110kW solar inverter
• 125kW solar inverter

Selecting a properly sized inverter improves system reliability and future expansion flexibility.

Why Proper System Sizing Matters

Oversized systems increase project costs unnecessarily, while undersized systems can lead to insufficient power generation, battery shortages, and inverter overloads. Accurate sizing helps maximize return on investment, improve energy efficiency, and ensure long-term system stability.

Solarasia Power specializes in solar panels, lithium battery systems, solar inverters, and complete energy storage solutions. We provide customized system design and one-stop procurement services for residential, commercial, and industrial solar projects worldwide.

Whether you need a small off-grid solar system or a large-scale battery energy storage project, our team can help you calculate the right configuration based on your specific energy requirements.
