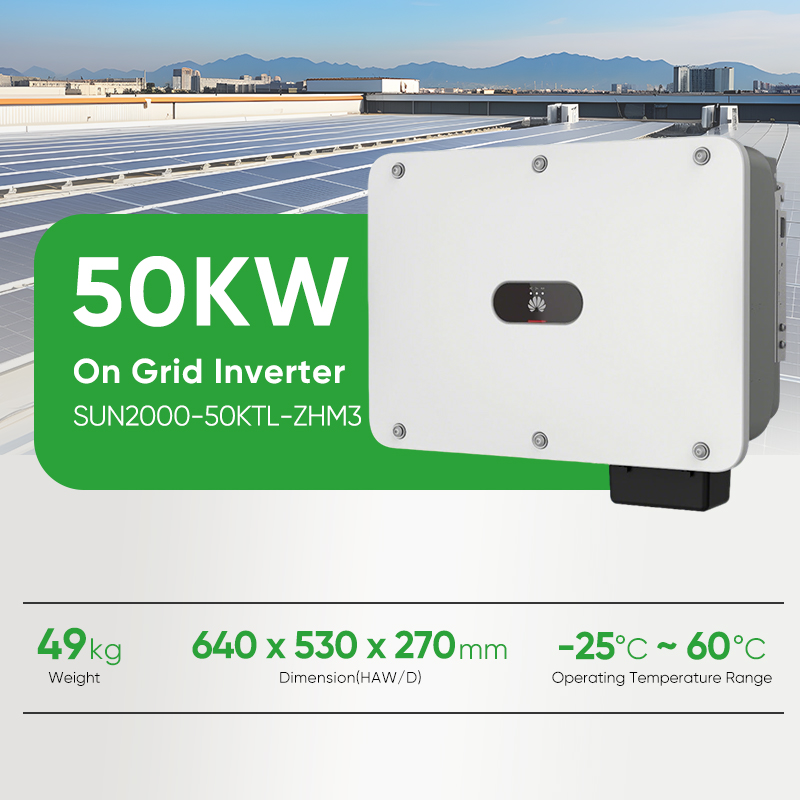

The Huawei SUN2000-50KTL-ZHM3 is a 50KW three phase string inverter for commercial and industrial solar power plants. It delivers superior energy yield and simplified O&M with features like up to 99% efficiency, Smart IV Curve Diagnosis, and a fuse less design.

  • Model No :

    SUN2000-50KTL-ZHM3

  • Weight :

    49Kg

  • Dimension :

    640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Inquiry now
categories
New Products

Products Description

huawei 50kw on grid solar inverter

huawei 50kw on grid solar inverter
SUN2000-50KTL-ZHM3 On Grid Solar Inverter

1. Maximize Energy, Minimize Cost
Achieve superior energy yield and a faster return on investment. Advanced multi MPPT technology ensures maximum power harvest,even from complex rooftop layouts, delivering outstanding value.


2. AI-Driven Smart O&M
Revolutionize plant maintenance with built-in smart diagnostics. Enable predictive maintenance and remote fault detection to significantly reduce operational costs and prevent downtime.




3. Ultra Safe & Grid Friendly
Engineered for reliability, it integrates critical safety protection and advanced grid support functions. This ensures stable,code-compliant performance for demanding commercial and industrial applications.

Detailed Parameters

Technical Specification SUN2000-50KTL-ZHM3

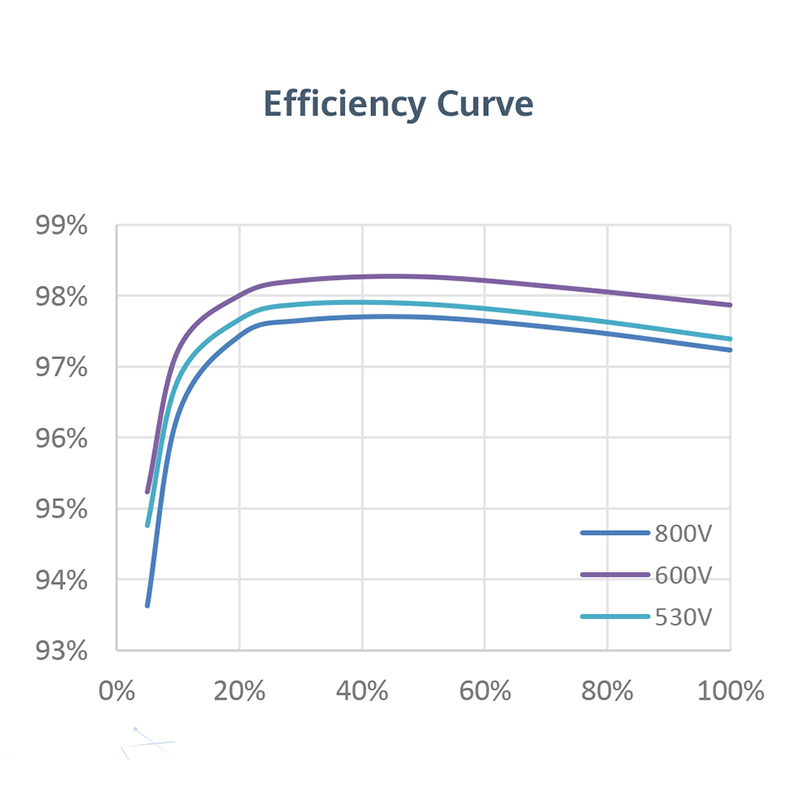

Efficiency
Max. Efficiency 98.5%
European Efficiency 98.0%
Input
Recommended max. PV power 50,000 W
Max. input voltage 1100V
Start voltage 200v
Max. input current per MPPT 20A
Maximum short circuit current 40A
Operating voltage range 200 V ~ 1000 V
Rated input voltage 600V
Maximum input number 8
Max. input number per MPP tracker 4
The output
Rated AC Active Power 50,000 W
Max. AC Apparent Power 55,000 VA
Max. AC Active Power (cosφ=1) 55,000 W
Rated output voltage 400 Vac / 480 Vac, 3W+(N) + PE
Output voltage frequency 50HZ/60HZ
Rated Output Current 72.2 A @ 400Vac, 60.1 A @ 480Vac
Max. Output Current 79.8 A @ 400Vac, 66.5 A @ 480Vac
Adjustable Power Factor Range 0.8 LG ... 0.8 LD
Max. total harmonic distortion <3%
Communication
Display LED Indicators, Bluetooth + APP
RS485 YES
Smart Dongle 4G / 3G / 2G via Smart Dongle-4G (Optional)
Monitoring BUS (MBUS) Yes (Isolation Transformer required)
General Data
Weight (with mounting plate) 49Kg
Dimensions (W x H x D) 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Protection Degree IP66

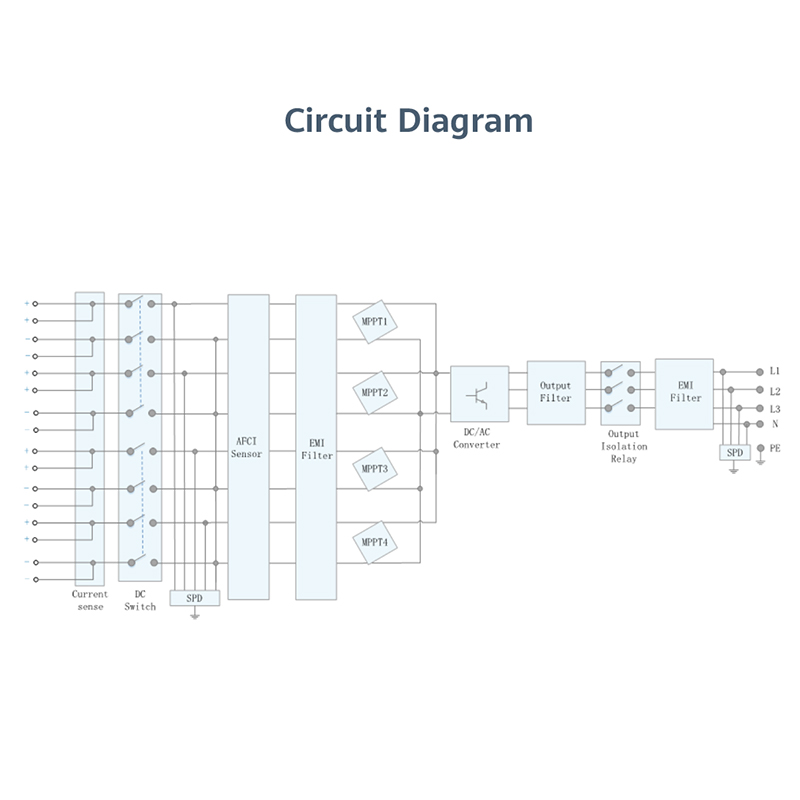

How does it work?

huawei 50kw on grid solar inverter

huawei 50kw on grid solar inverter

huawei 50kw on grid solar inverter

FAQ

Q1: What is the key advantage of the multi MPPT design?
A1: It allows for flexible string arrangement on complex rooftops with different orientations or shading, ensuring each string operates at its maximum power point. This design significantly minimizes energy loss and maximizes the overall energy yield of your solar system.

Q2: How does the Smart IV Curve Diagnosis actually save me money?
A2: It moves your maintenance from a reactive to a predictive model. By remotely identifying issues like module shading,degradation, or soiling, it prevents small problems from causing major downtime or energy loss. This reduces the need for costly on site inspections and manual checks, lowering your operational expenses.

Q3: How does this inverter ensure stable grid operation?
A3: It features advanced grid-support functions like Low Voltage Ride Through (LVRT) and reactive power control. This ensures the inverter remains connected and supports the grid during minor disturbances, complying with stringent international grid codes and making it ideal for utility scale and large commercial projects.

Q4: How about the delivery time?
A4: Delivery time 7~20 days for bulk order.

Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.



Hot Tags : 50 kva 3 Phase Solar Inverter Solar Inverters Huawei 50kva Solar Inverter Huawei PV Inverter Huawei Solar Inverter 50KW Huawei 50KW
