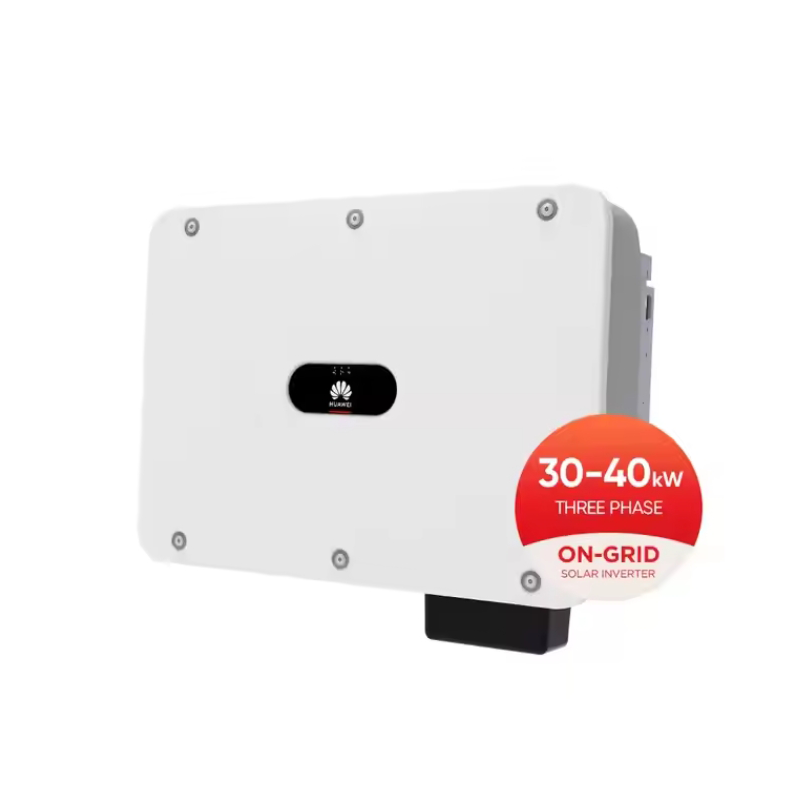

Huawei Inverter 30kw 36kw 40kw On Grid 3-phase PV High Efficiency

Home

On Grid Inverter

Huawei Inverter 30kw 36kw 40kw On Grid 3-phase PV High Efficiency

Huawei Inverter 30kw 36kw 40kw On Grid 3-phase PV High Efficiency

Smart: 8 strings intelligent monitoring; Efficient: Max efficiency 98.7%; Safe: Fuse free design; Reliable: Type Il surge arresters for DC & AC.

  • Model No :

    SUN2000-40KTL-M3
  • Rated Power :

    40KW
  • Weight :

    43 kg
  • Dimension :

    640 x 530 x 270 mm(25.2 x 20.9 x 10.6 inch)

Huawei Inverter 30kw 36kw 40kw On Grid 3-phase PV High Efficiency

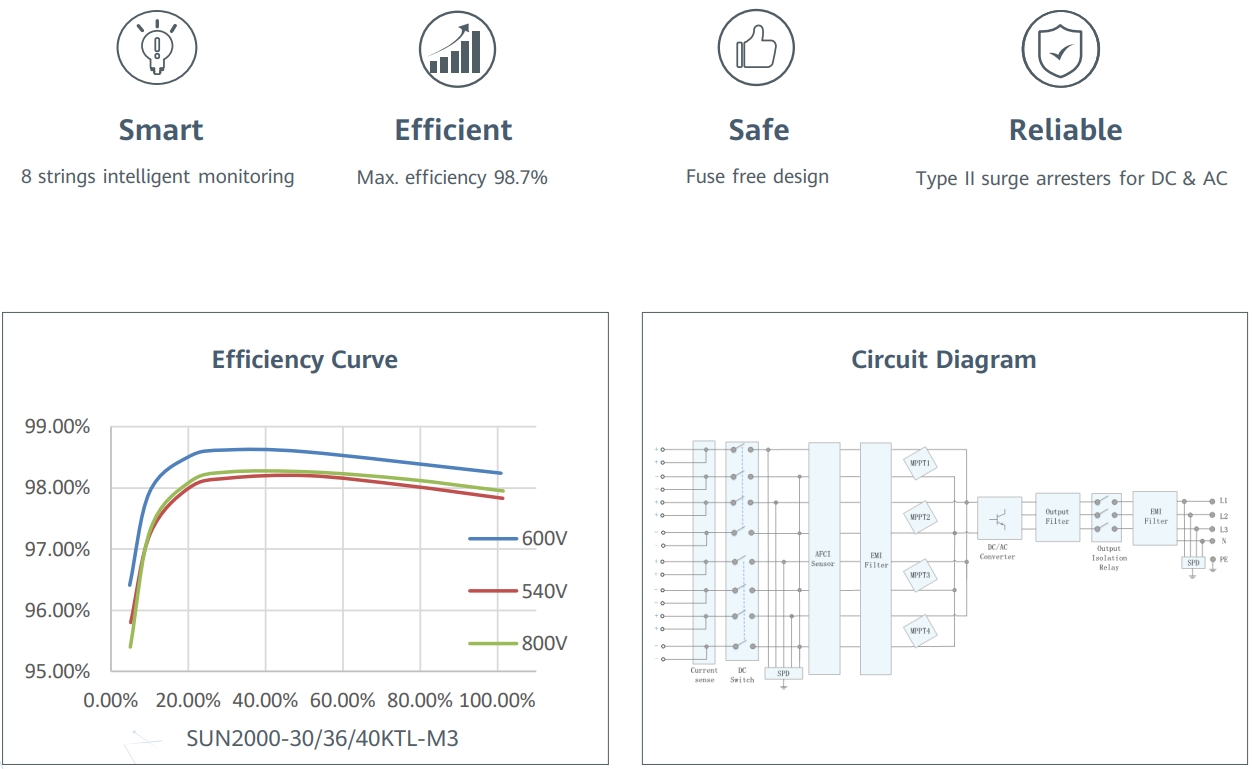

  • Smart: 8 strings intelligent monitoring;
  • Efficient: Max efficiency 98.7%;
  • Safe: Fuse free design;
  • Reliable: Type Il surge arresters for DC & AC.

Huawei Inverter On Grid

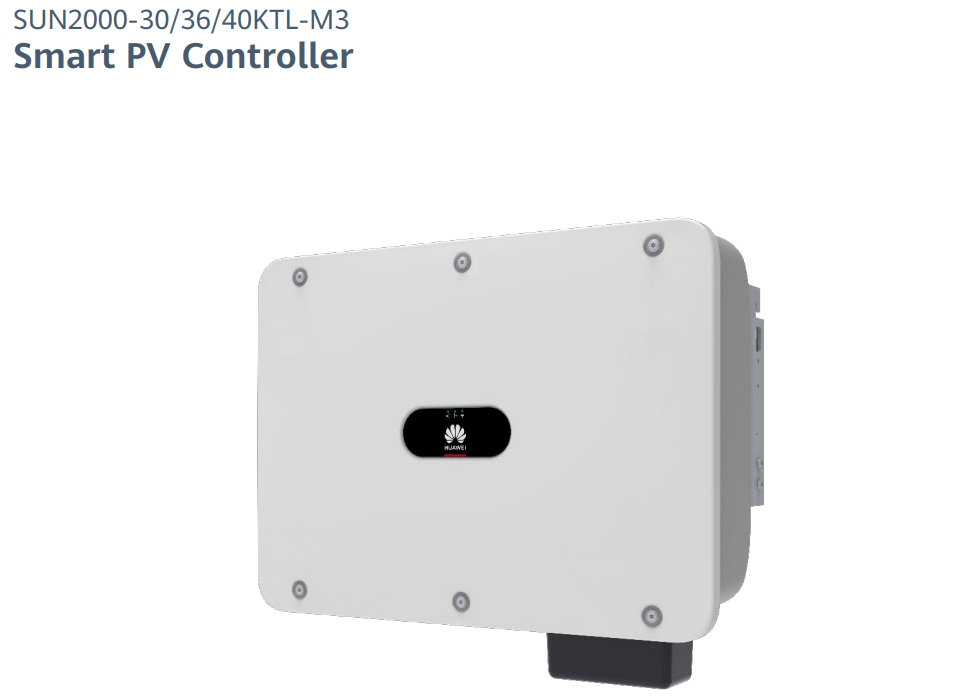

Technical Specification SUN2000-30KTL-M3 SUN2000-36KTL-M3 SUN2000-40KTL-M3
Efficiency
Max. Efficiency 98.7%
European Efficiency 98.4%
Input
Max. Input Voltage1 1,100 V
Max. Current per MPPT 26A
Max. Short Circuit Current per MPPT 40A
Start Voltage 200V
MPPT Operating Voltage Range2 200V~1000V
Rated Input Voltage 600 V
Number of Inputs 8
Number of MPP Trackers 4
Output
Rated AC Active Power 30,000W 36,000W 40,000W
Max.AC Apparent Power 33,000 VA 40,000 VA 44,000 VA
Rated Output Voltage 230 Vac / 400 Vac/ 480 Vac,3W/N+PE
Rated AC Grid Frequency 50Hz/60 Hz
Rated Output Current 43.3 A 52.0A 57.8 A
Max. Output Current 47.9A 58.0 A 63.8 A
Adjustable Power Factor Range 0.8 LG ...0.8 LD
Max. Total Harmonic Distortion < 3%
Communication
Display LED Indicators, Integrated WLAN + FusionSolar APP
RS485 Yes
Smart Dongle WLAN/Ethernet via Smart Dongle-WLAN-FE(Optional)
Monitoring BUS(MBUS) 4G/ 3G /2G via Smart Dongle-4G (Optional)
General Data
Dimensions (W x H x D) 640 x 530 x 270 mm(25.2 x 20.9 x 10.6 inch)
Weight (with mounting plate) 43 kg
Operating Temperature Range -25~+60°C(-13°F~140F)
Cooling Method Natural Convection
Max. Operating Altitude 0-4,000 m(13,123 ft.)
Relative Humidity 0% RH~100% RH
DC Connector Staubli MC4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP 66
Topology Transformerless
Nightime Power Consumption ≤ 5.5W
