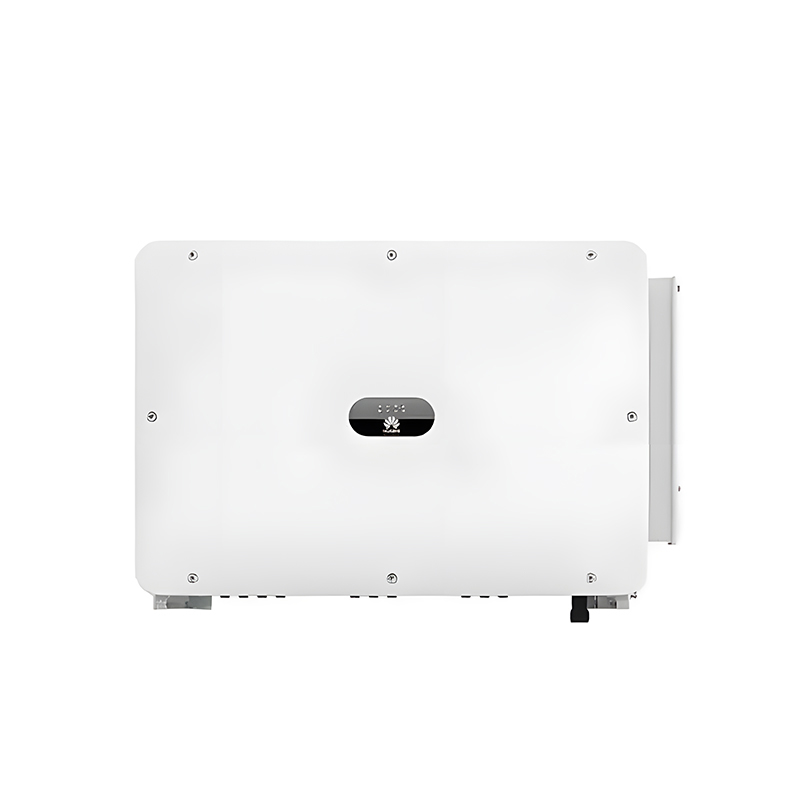

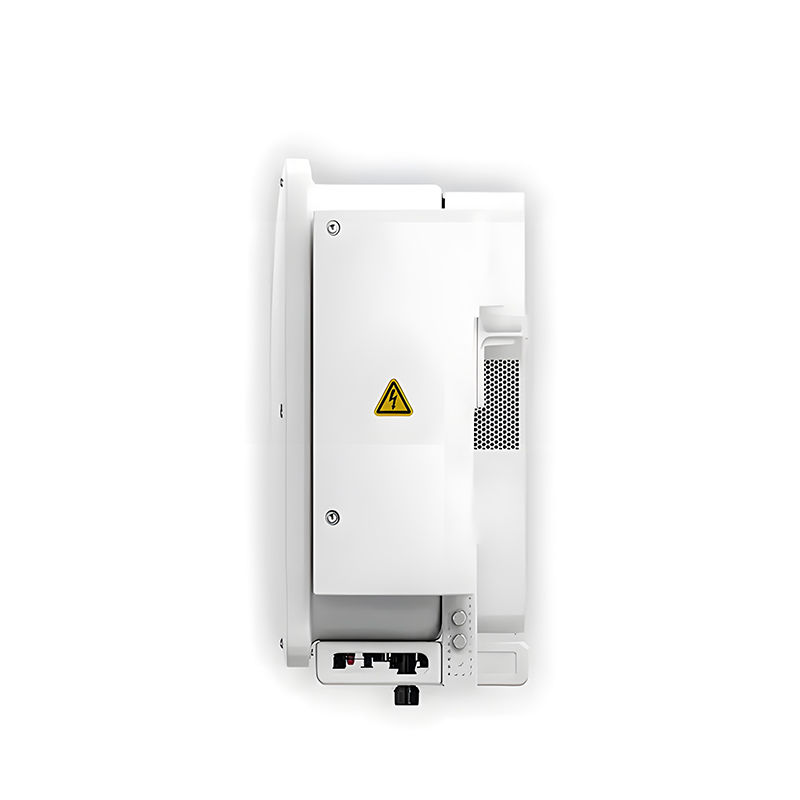

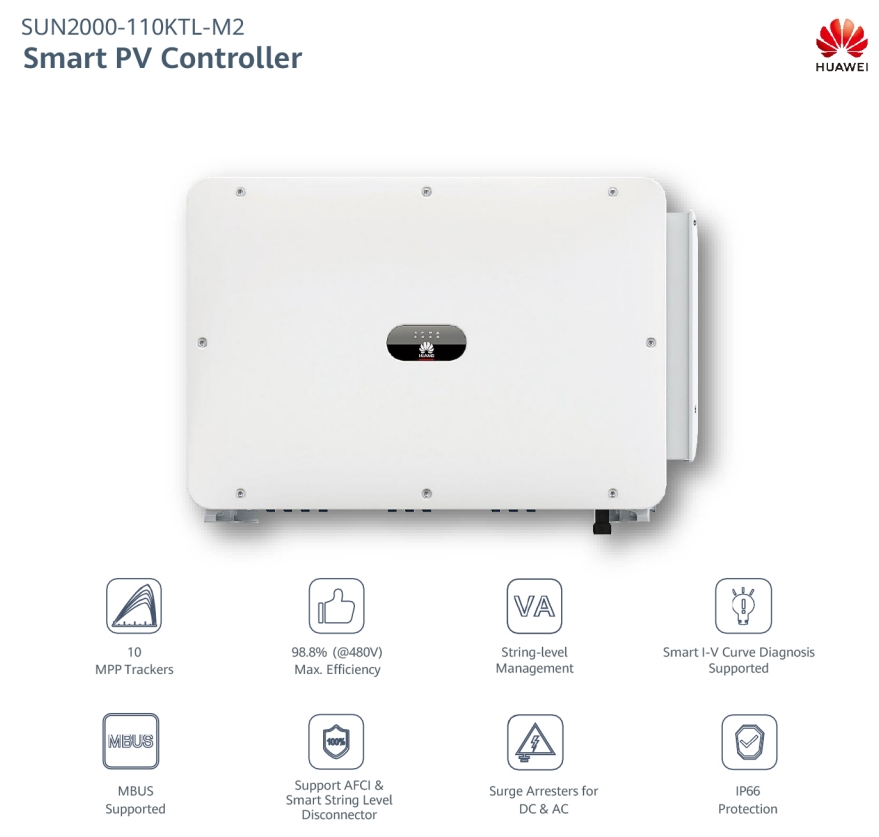

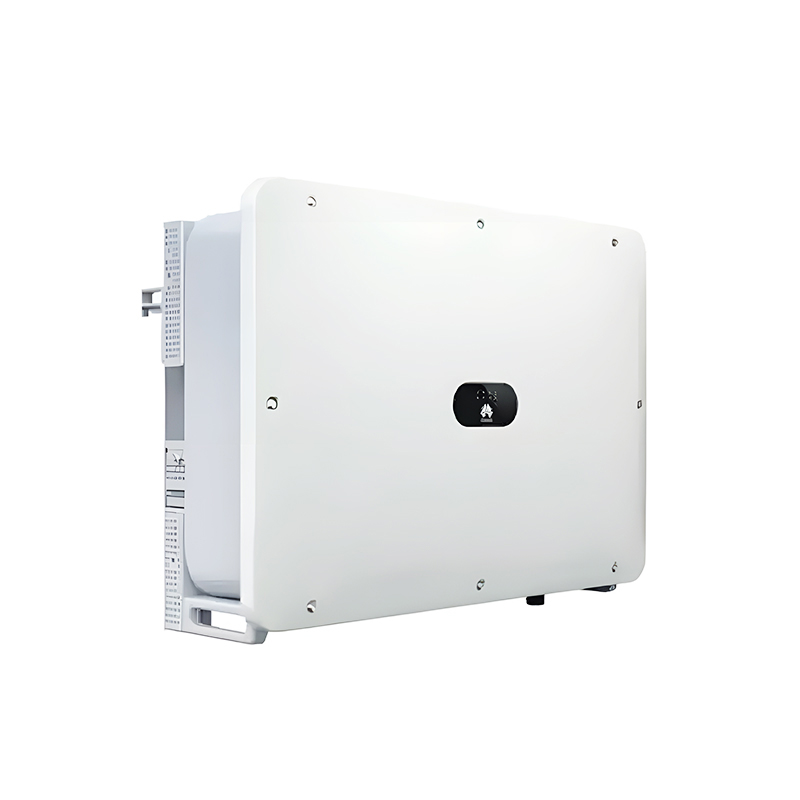

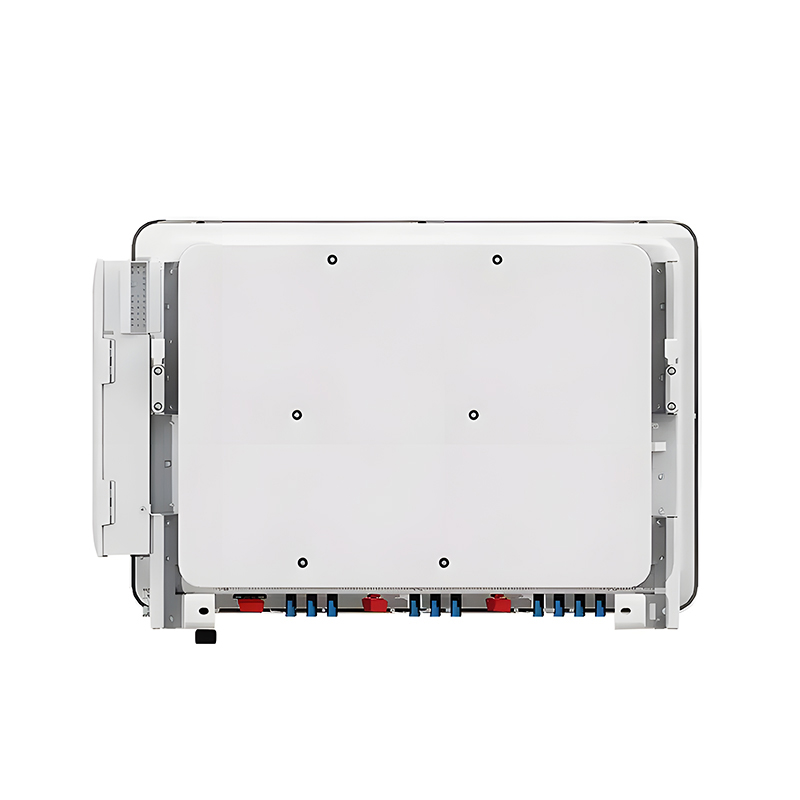

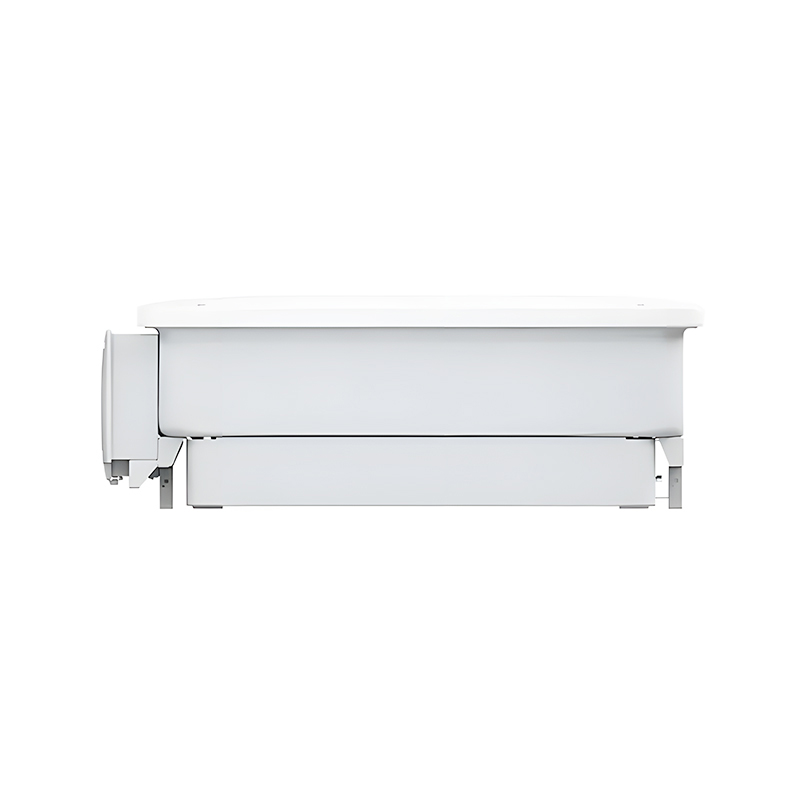

Huawei Inverter 110kW Three Phase On Grid Inverter
The Huawei SUN2000 110KTL M2 is a high efficiency 110kW three phase on grid solar inverter, ideal for commercial and industrial PV systems with multi MPPT design and IP66 protection.
Model No :
Huawei SUN2000 110KTL M2Weight :
93 kgDimension :
1,035 x 700 x 365 mm
Product Parameters
|
Technical Specification
|
SUN2000-110KTL-M2
|
|
Efficiency
|
|
|
Max. efficiency
|
98.6%
|
|
European efficiency
|
98.1%
|
|
PV Input
|
|
|
Max. Input Voltage
|
1,100 V
|
|
Max. Current per MPPT
|
30 A
|
|
Max. Current per Input
|
20 A
|
|
Max. Short Circuit Current per MPPT
|
40 V
|
|
Start Voltage
|
200 V
|
|
MPPT Operating Voltage Range
|
200 V~1000 V
|
|
Nominal Input Voltage
|
600 V @ 400 Vac
|
|
Number of MPP trackers
|
10 |
|
Max. input number per MPP tracker
|
2 |
|
Output
|
|
|
Nominal AC Active Power
|
110,000 W
|
|
Max. AC Apparent Power
|
121,000 VA
|
|
Max. AC Active Power (cosφ=1)
|
121,000 W
|
|
Nominal Output Voltage
|
400 V/ 380 V, 3W+(N)+PE
|
|
Rated AC Grid Frequency
|
50 Hz / 60 Hz
|
|
Nominal Output Current
|
158.8A @400 V, 167.2 A @380 V
|
|
Max. Output Current
|
176.4 A @400 V, 185.7A @380 V
|
|
Adjustable Power Factor Range
|
0.8 leading... 0.8 lagging
|
|
Max. Total Harmonic Distortion
|
＜3%
|
|
Protection
|
|
|
Input-side Disconnection Device
|
Yes
|
|
Anti-islanding Protection
|
Yes
|
|
AC Overcurrent Protection
|
Yes
|
|
DC Reverse-polarity Protection
|
Yes
|
|
PV-array String Fault Monitoring
|
Yes
|
|
DC Surge Arrester
|
Type II
|
|
AC Surge Arrester
|
Type II
|
|
DC Insulation Resistance Detection
|
Yes
|
|
Residual Current Monitoring Unit
|
Yes
|
|
Arc Fault Protection
|
Yes
|
|
Smart String Level Disconnector
|
Yes
|
|
Communication
|
|
|
Display
|
LED indicators; WLAN adaptor + FusionSolar APP
|
|
RS485
|
Yes
|
|
USB
|
Yes
|
|
Monitoring BUS (MBUS)
|
Yes (isolation transformer required)
|
|
General Data
|
|
|
Dimensions (W x H x D)
|
1,035 x 700 x 365 mm
|
|
Weight (with mounting plate)
|
93 kg
|
|
Operating Temperature Range
|
-25°C ~ 60°C
|
|
Cooling Method
|
Smart Air Cooling
|
|
Max. Operating Altitude
|
4,000 m (13,123 ft.)
|
|
Relative Humidity
|
0 ~ 100%
|
|
DC Connector
|
Amphenol HH4
|
|
AC Connector
|
Waterproof Connector + OT/DT Terminal
|
|
Protection Degree
|
IP66
|
|
Topology
|
Transformerless
|
|
Nighttime Power Consumption
|
< 3.5 W
|
