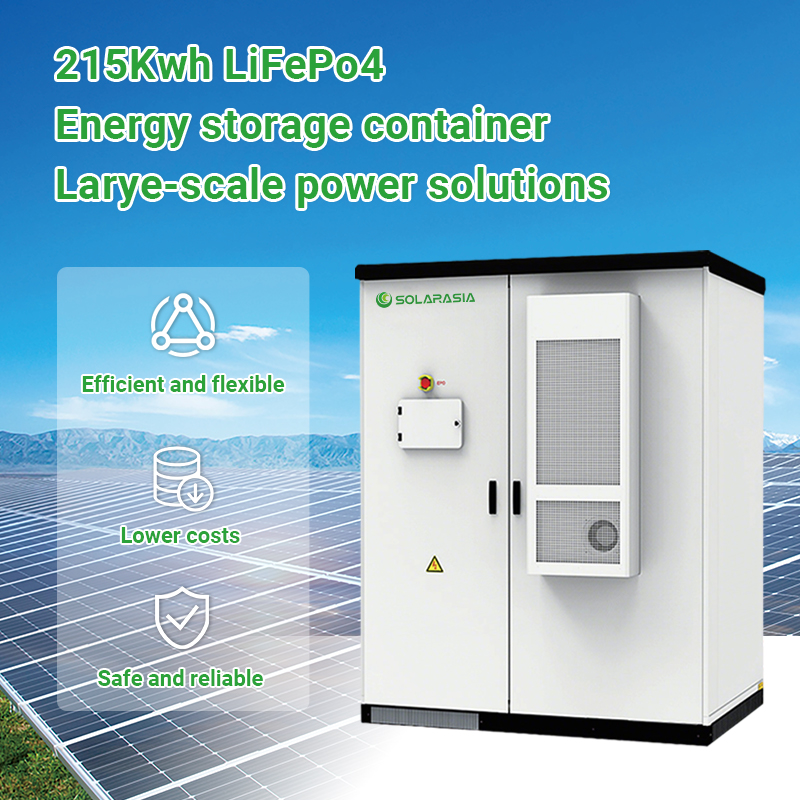

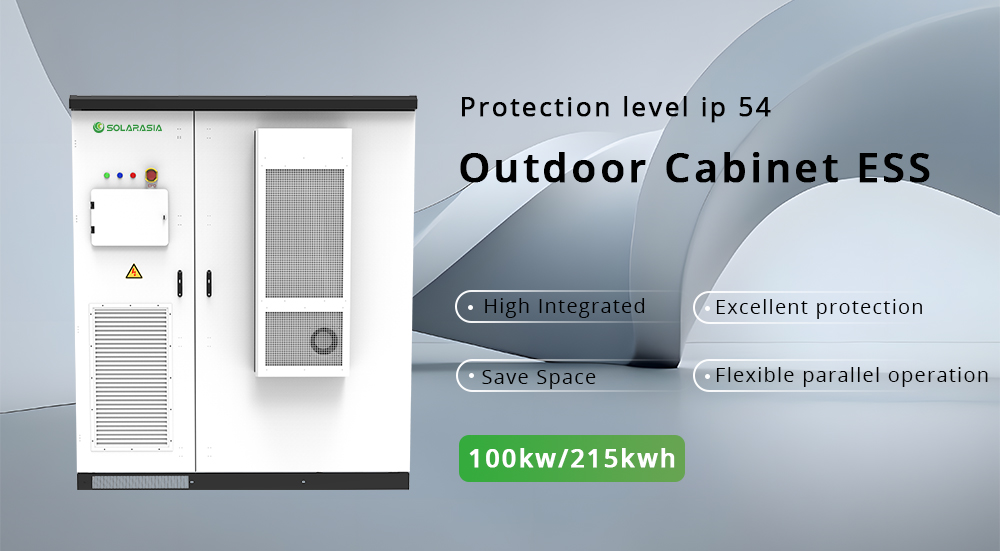

ESS 100kw 215kwh Industrial Energy Storage System
ESS Industrial Energy Storage System – 100kW / 215kWh Containerized BESS.High-performance lithium battery energy storage system designed for industrial and commercial applications.This 100kW + 215kWh containerized BESS supports solar integration, peak shaving, load shifting, backup power, and microgrid applications.CE/UL certified with over 6000 charge/discharge cycles.Complete system includes PCS, BMS, EMS, air conditioning, fire protection, and monitoring system.Suitable for off grid, on grid, or hybrid energy storage projects.OEM/ODM customization available. Global delivery and full technical support provided.
These are among our best selling solar systems, and if you have other specific requirements, feel free to contact us!
Model No :
TG-eBank-215FS2Rated Capacity :
215 kwhWeight :
2600 KGDimension :

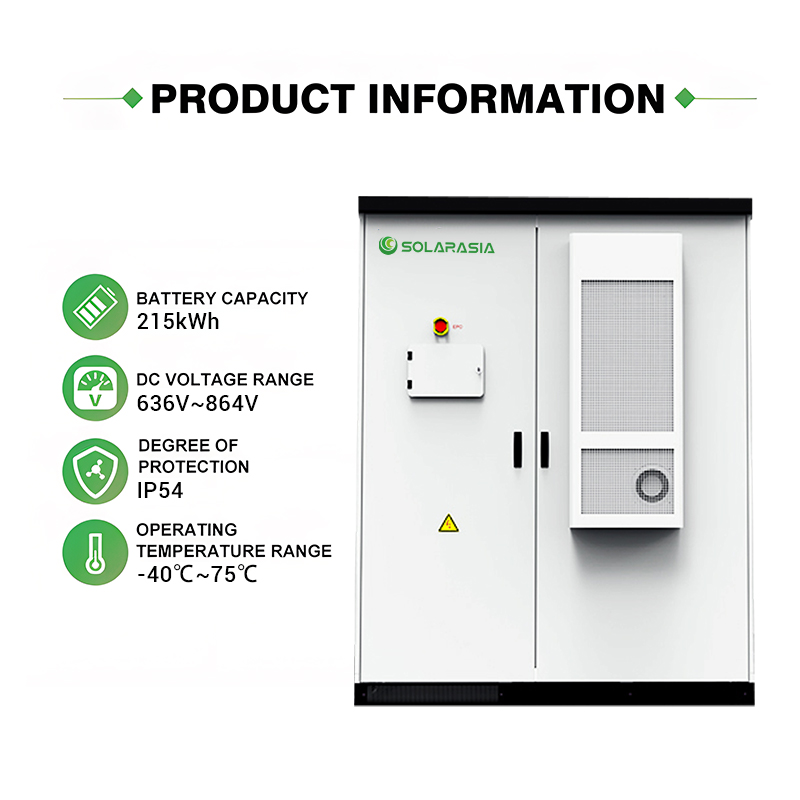

1800*1250*2000 mmProduct Description

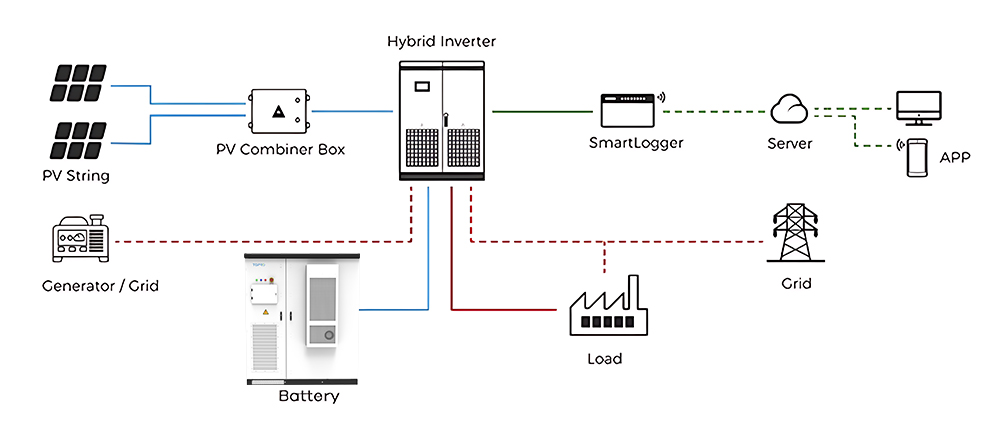

How does it works?

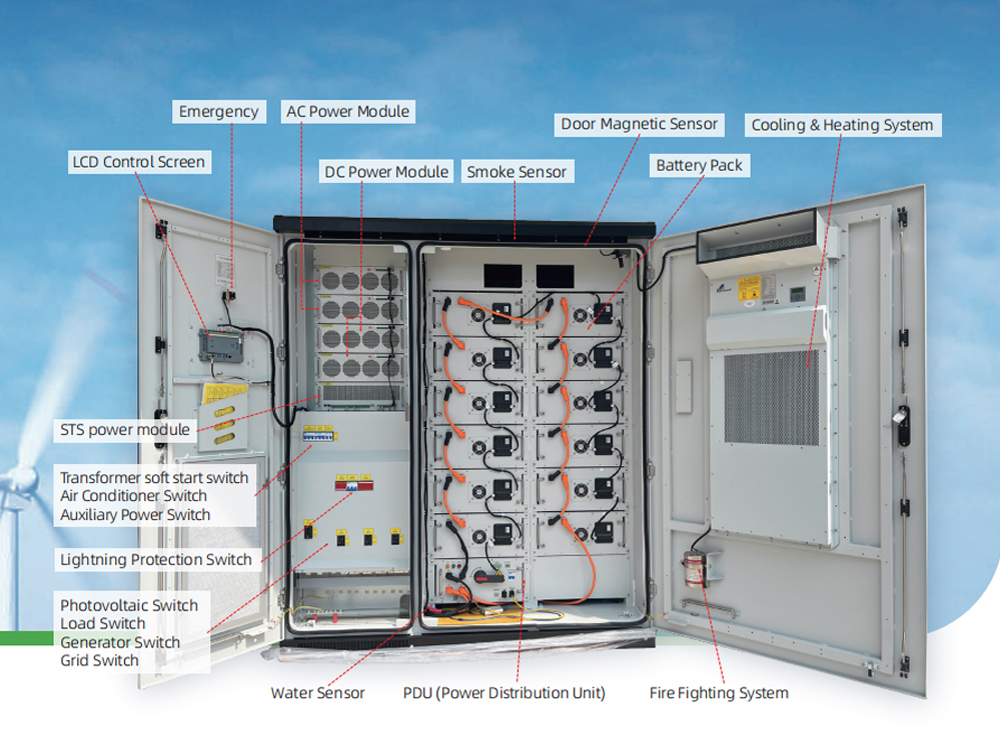

Product Detail
Product Parameters
|
MODEL
|
TG-eBank-215FS2
|
|
TG-eBank-215FS2
|
|
|
Battery type
|
LFP
|
|
Cell capacity
|
3.2V/280Ah
|
|
PACK config
|
1P20S
|
|
PACK Qty
|
12
|
|
Rated capacity
|
215kWh
|
|
Rated voltage
|
768V
|
|
Voltage range
|
636 - 864Vdc
|
|
Charge/Discharge rate
|
0.5C Rated
|
|
DOD
|
95%
|
|
Cooling system
|
Air Cooling
|
|
Fire fighting system
|
Two Level Protection，Standard：Aerosol+HFC-227ea，Optional：PERFLUORO
|
|
AC Specifications
|
|
|
Rated voltage
|
400Vac
|
|
Voltage range
|
230 / 400Vac
|
|
Frequency range
|
50/60+2.5Hz (50/60Hz self-adaption)
|
|
Grid system
|
3P+N+PE
|
|
solation transformer
|
No
|
|
Rated power
|
100kW
|
|
Peak power
|
110kW
|
|
Rated current
|
144A
|
|
Over load capacity
|
≤110% Continues Running ≤120%1Min
|
|
Power factor
|
-0.99 ~ +0.99
|
|
On grid THDl/THDV(Off grid)
|
<3%, Full load
|
|
STS module power capacity
|
200kW
|
|
Transfer time(On-off Grid)
|
≤20ms
|
|
PV Specification
|
|
|
Max. PV input voltage
|
1000V
|
|
Max. PV input power
|
110kW
|
|
No. of MPPT/String per MPPT
|
2/1
|
|
MPPT voltage range
|
350 - 1000V
|
|
MPPT current
|
200A (100A/100A)
|
|
MPPT efficiency
|
99%
|
|
System Specification
|
|
|
Temperature range
|
-25°C ~ 65°C，＞45°C power derating
|
|
Storage temperature
|
-40 ~ 75°C
|
|
Noice
|
<70 dB
|
|

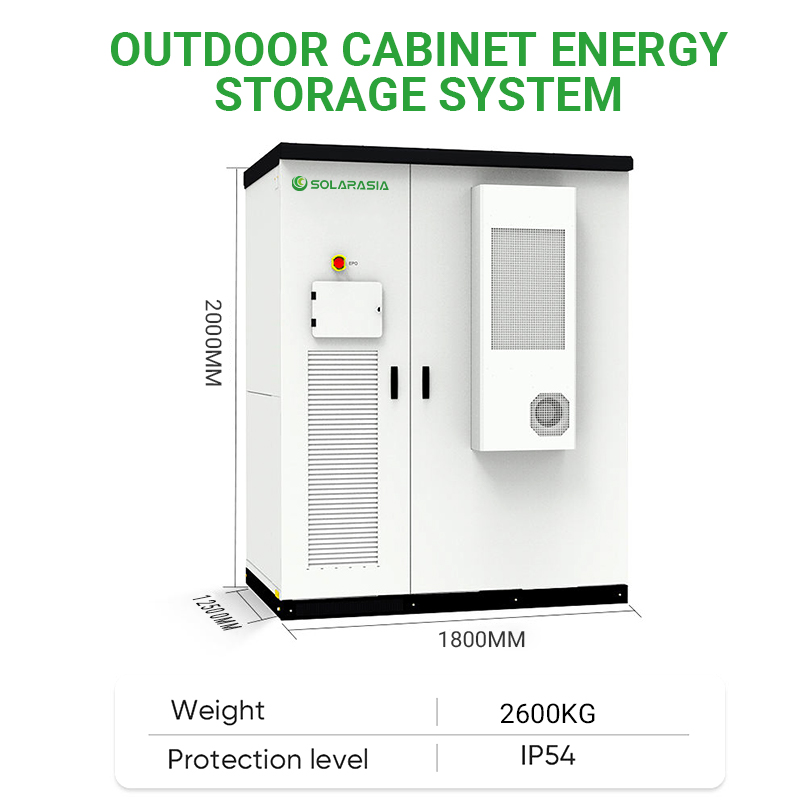

Dimension W*D*H(mm)
|
1800*1250*2000
|
|
Weight(kg)
|
2600
|
|
IP class
|
IP54
|
|
Cooling type
|
Industry level Air Conditional
|
|
EMS
|
Manual Mode, Peak saving, virtual enlargement,
New Energy power absorption, Anti-flow mode. Support remcte management and control
|
|
Communication protocol
|
Modbus RTU, ModbUs TCP, IEC104, MQTT, Etc.
|
|
Communication port
|
RS485/RJ45/4G/WIFI/DIDO
|
|
Certificates
|
UN38.3, MSDS, CE-EMC, IEC62619
|
Certifications
