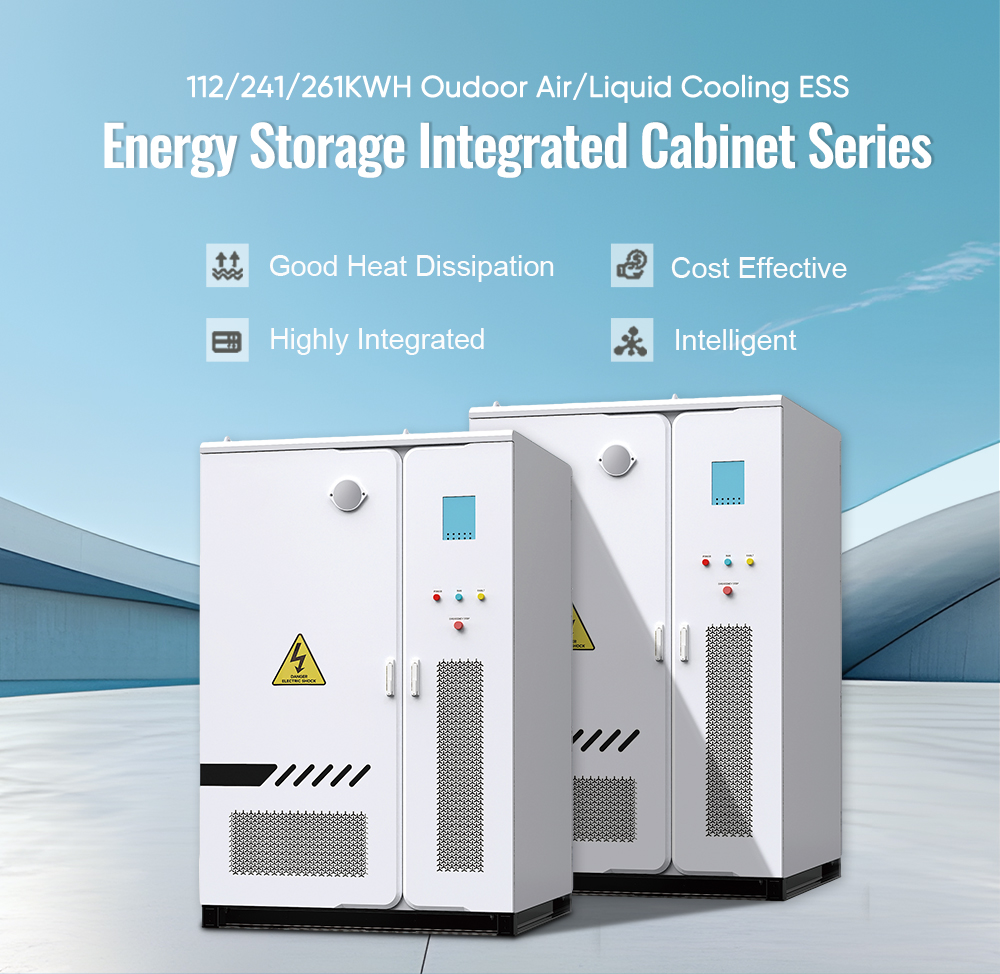

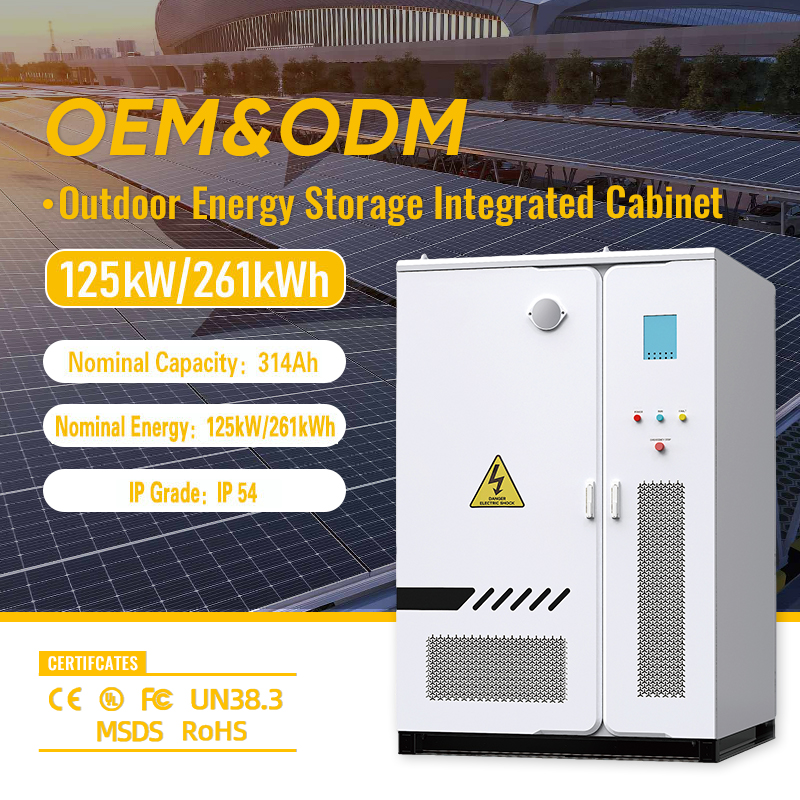

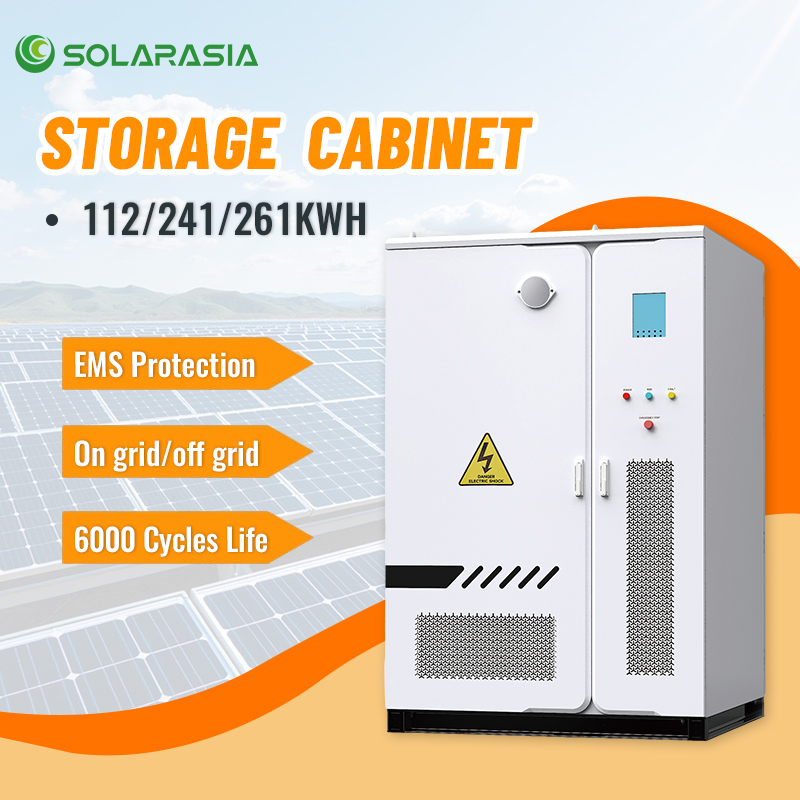

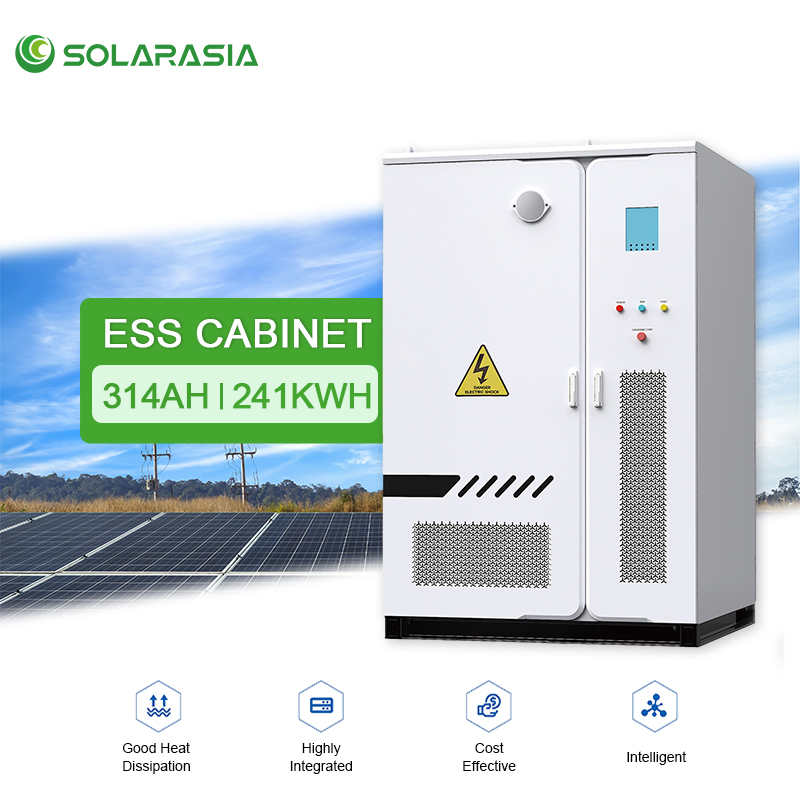

BESS Battery Energy Storage Systems 125kw 112kwh 241kwh 261kwh Weatherproof Outdoor Cabinets

This all in one energy storage cabinet features IP54 outdoor protection, Grade A LiFePO₄ batteries with over 6000 cycles, and high power output up to 125 kW, making it ideal for industrial and commercial applications. With wide working voltage ranges, smart BMS/EMS control, optional high efficiency MPPT for solar integration, and CE/UN38.3 safety certification, it delivers reliable, efficient, and intelligent energy management in a compact integrated design. Easy to install and suitable for on grid, off grid, and hybrid systems, this cabinet supports real time monitoring, excellent heat dissipation, and strong load performance. OEM/ODM customization is available to meet project specific requirements.

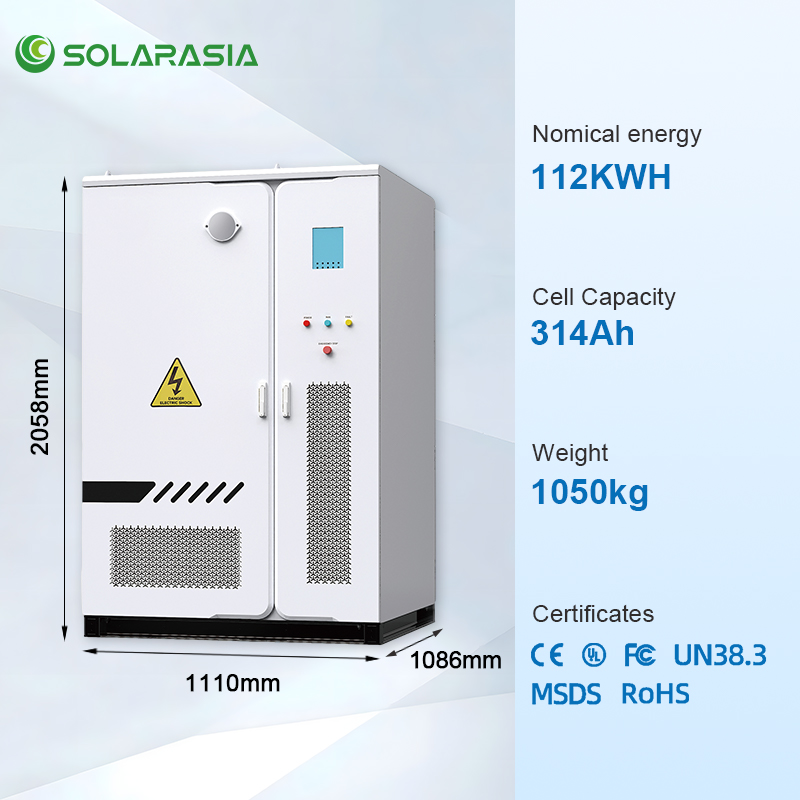

  • Model No :

    SMP-NUO06

  • Rated Capacity :

    112kwh / 241kwh / 261kwh

  • Weight :

    1050kg / 3000kg

  • Dimension :

    1086*2058*1110mm/1450*2258*1345mm

  • Rated Frequency :

    50/60Hz
Inquiry now
DOWNLOAD
categories
New Products

ESS OEM Industrial Commercial Outdoor Cabinet 125kw 112kwh 241kwh 261kwh Battery Energy Storage System for Power Generation

Energy Commercial Solar System ESS Cabinet Box with 261kwh Lithium Ion Batteries Pack off Grid Connection Energy Storage System

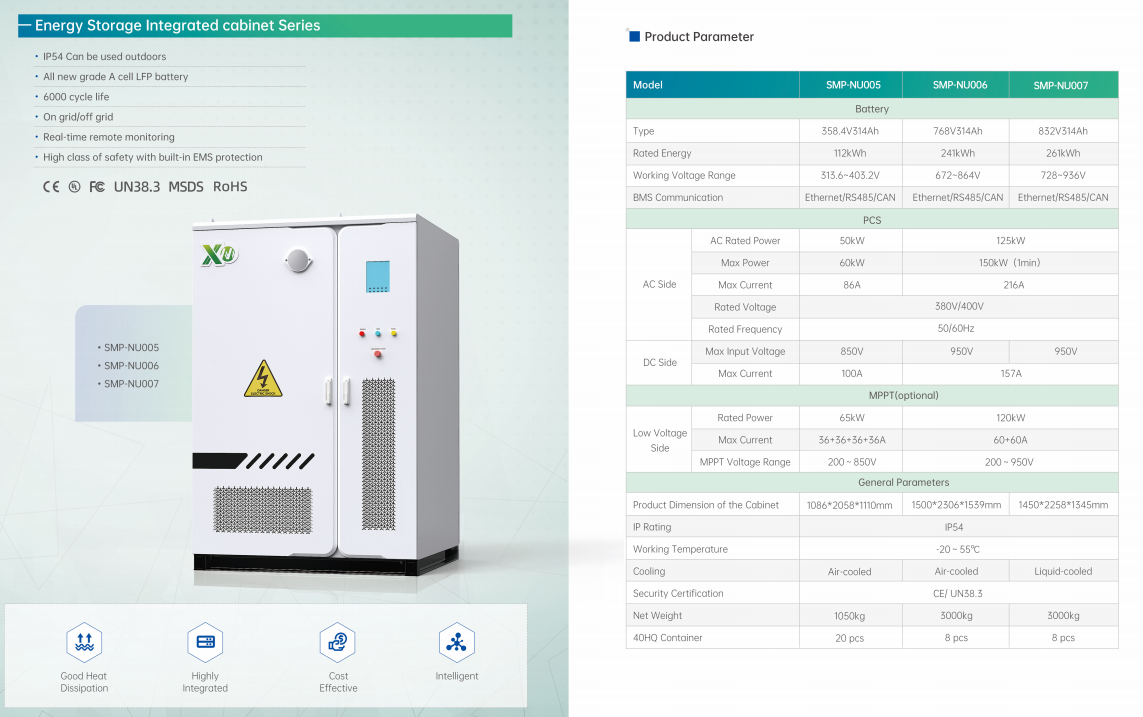

Detailed Parameters

Model
SMP-NUOO5
SMP-NU006
SMP-NU007
Type
358.4V 314Ah
768V 314Ah
832V 314Ah
Rated Energy
112kWh
241kWh
261kWh
Working Voltage Range
313.6–403.2V
672–864V
728–936V
BMS Communication
Ethernet / RS485 / CAN
Ethernet / RS485 / CAN
Ethernet / RS485 / CAN
PCS
Specification
SMP-NU005
SMP-NU006
SMP-NU007
AC Rated Power
50kW
125kW
125kW
Max Power
60kW
150kW (1 min)
150kW (1 min)
Max Current
86A
216A
216A
Rated Voltage
380V / 400V
380V / 400V
380V / 400V
Rated Frequency
50/60Hz
50/60Hz
50/60Hz
Max Input Voltage (DC)
850V
950V
950V
Max Current (DC)
100A
157A
157A
MPPT (Optional) – Low Voltage Side
Rated Power
65kW
120kW
120kW
Max Current
36+36+36+36A
60+60A
60+60A
MPPT Voltage Range
200–850V
200–950V
200–950V
General Parameters
Product Dimension
1086×2058×1110 mm
1500×2306×1539 mm
1450×2258×1345 mm
IP Rating
IP54
IP54
IP54
Working Temperature
-20°C ~ 55°C
-20°C ~ 55°C
-20°C ~ 55°C
Cooling
Air-cooled
Air-cooled
Liquid-cooled
Security Certification
CE / UN38.3
CE / UN38.3
CE / UN38.3
Net Weight
1050 kg
3000 kg
3000 kg
40HQ Container
20 pcs
8 pcs
8 pcs

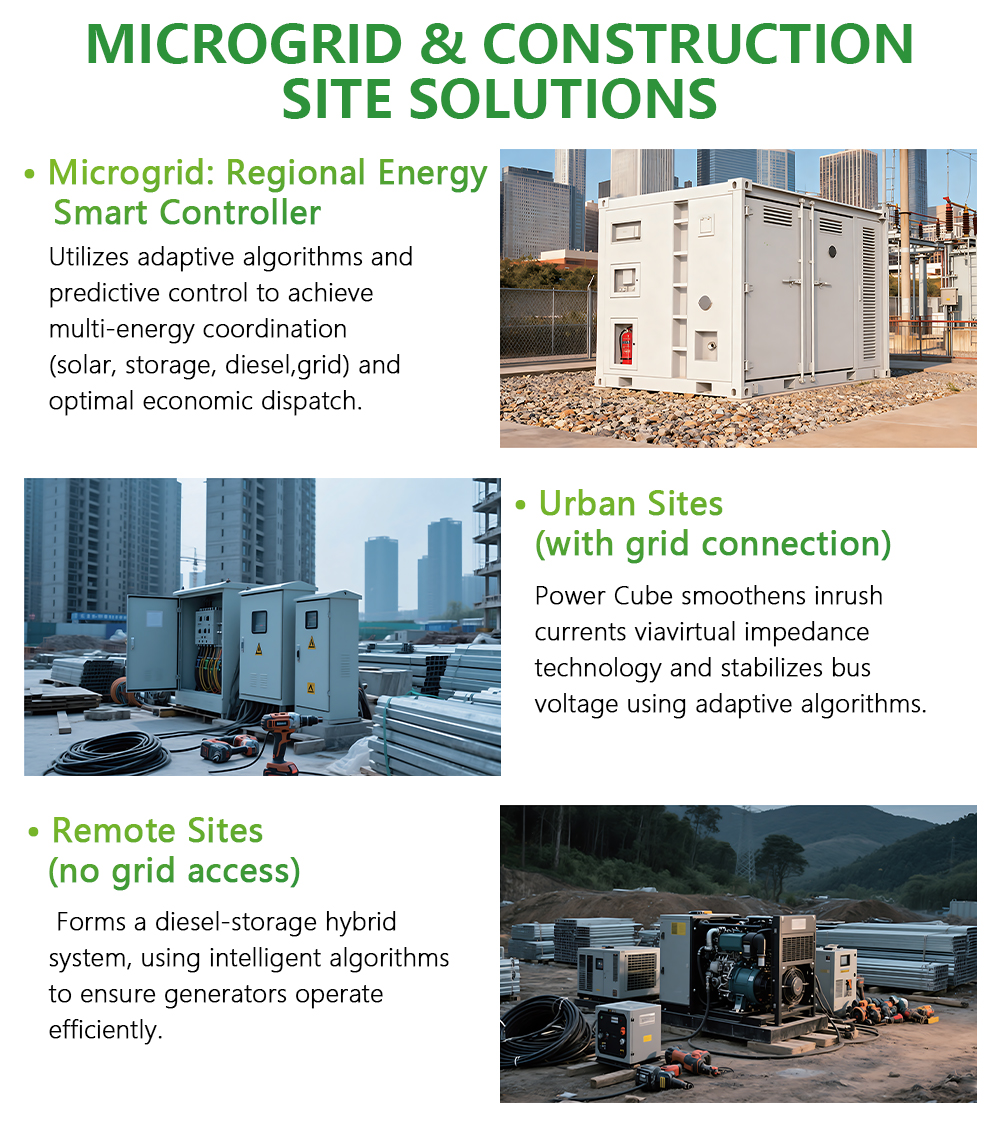

Solar Projects

Commercial Solar System IP54 ESS Cabinet 125kw 112kwh 241kwh 261kwh 6000 Cycles Lithium Ion Batteries Pack for Commercial Use

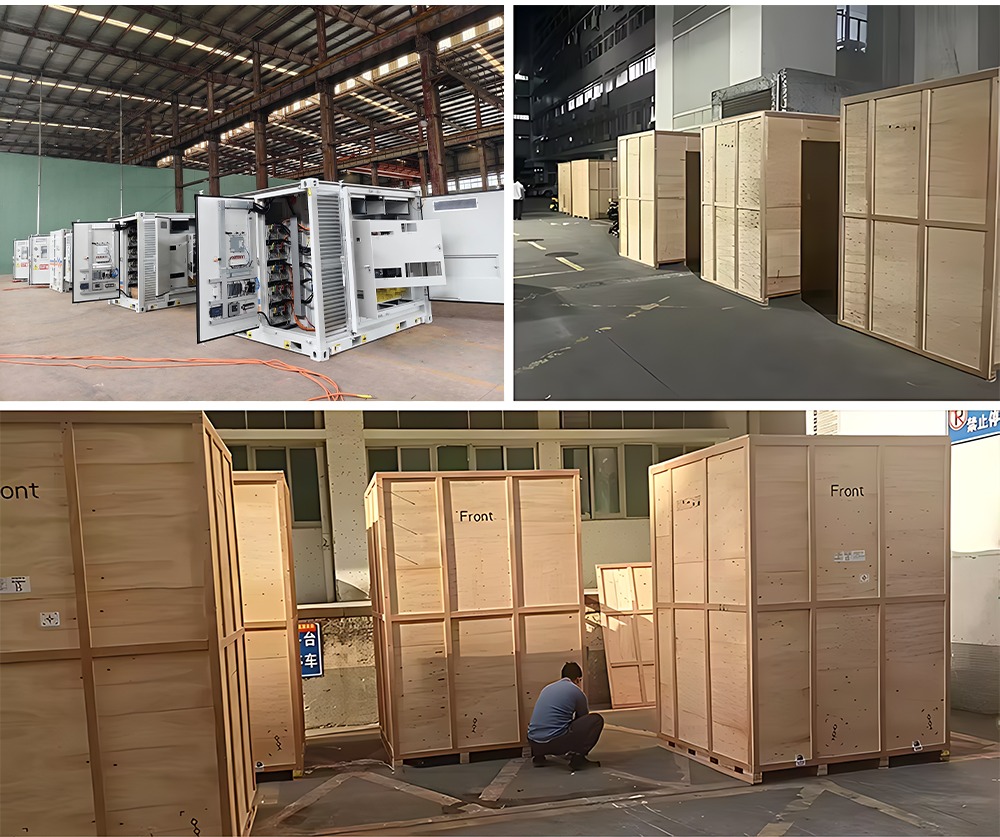

Packaging

Best Selling ESS Outdoor Cabinet Lifepo4 System 112kwh 241kwh 261kwh with Liquid Cooling Industrial Commercial Energy Storage

Certifications

Large Capacity 241kwh 125kw Commercial Bess IP54 Outdoor Solar Battery Energy Storage Container System for Power Generation

FAQ

Q1. Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 set.

Q2 How about your delivery time?
A: For the big capacity, we can deliver around 25 days. Depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.

Q3. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service and ODM Service. We can design the packaging and logo according to your requirements.

Q4. Do you test all your goods before delivery?
A: Yes, all our products have been tested before delivery.

Q5. What is the biggest difference between your battery and other suppliers?
A: More than 20 years of manufacturing experience.Honle Energy invests greatly in R&D to ensure reliable, stable, and technically advanced battery energy storage systems.

Q6.Tell me the standard of package?
A: We use a strong wooden case for protection.
