Jinko Tiger Neo N Type 700W 705W 710W Bifacial Module Solar Panel

Jinko Tiger Neo N-Type 700W 705W 710W Bifacial Module Solar Panel

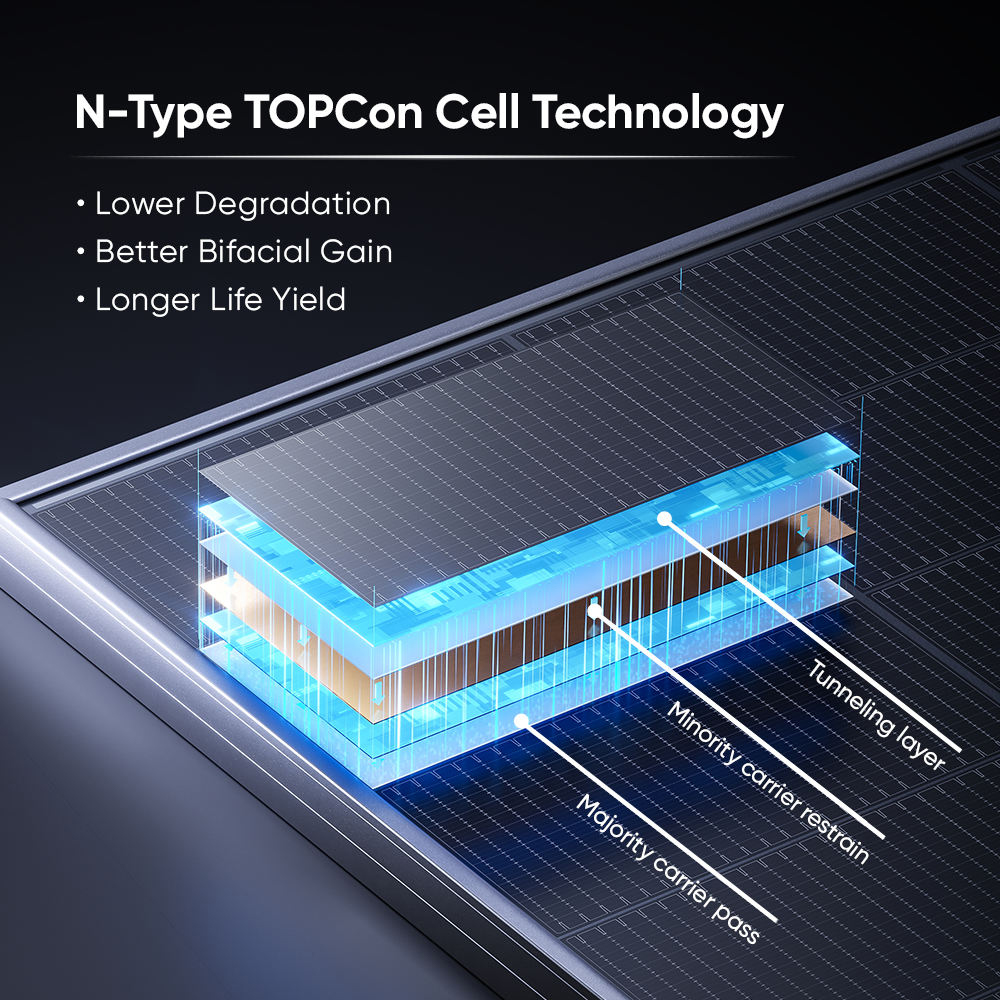

• N-type Technology

N type modules with Tunnel Oxide Passivating Contacts(TOPCon) technology offer lower LID/LeTID degradation and better low light performance

• HOT 2.0 Technology

N-type modules with JinkoSolar's HOT 2.0 technology offer better raliability and efficiency

• Dual-sided Power Generation

Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE

• Mechanical Load Enhanced

Certified to withstand:

5400 Pa front side max static test load

2400 Pa rear side max static test load

• SMBB Technology

Better light trapping and current collection to improve module power output and reliability

• Anti-PID Guarantee

Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control

FAQ

1. What is the main advantage of N-type TOPCon technology used in this module?

N type TOPCon (Tunnel Oxide Passivating Contacts) technology offers several benefits over traditional P-type modules, including higher efficiency, better low-light performance, and lower LID (Light Induced Degradation) and LeTID (Light and elevated Temperature Induced Degradation). This ensures more stable power output over the module's 30-year lifespan.

2. How much extra power can I get from the bifacial design?

As a bifacial module, it can generate power from both the front and rear sides. Depending on the albedo (reflectivity) of the surface beneath the panels (such as white gravel, sand, or snow), the bifacial gain can increase the overall energy yield by 5% to 25% compared to monofacial panels.

3. What is SMBB Technology and how does it improve performance?

SMBB (Super Multi-Busbar) technology uses shorter and thinner busbars to reduce current loss and improve light trapping. This design enhances the module's power output and increases its reliability by minimizing the impact of micro cracks.

4. How does the "HOT 2.0" technology benefit the system?

JinkoSolar’s HOT 2.0 technology is a specialized N type cell technology that significantly improves the reliability and efficiency of the cells. It helps the module perform better under high temperature conditions, maintaining a higher energy yield in hot climates.

5. What are the mechanical load capacities of these 700W+ modules?

These modules are built for durability and are certified to withstand extreme weather conditions:

• Front Side: Up to 5400 Pa (static test load, e.g., snow).

• Rear Side: Up to 2400 Pa (static test load, e.g., wind).

6. What is the physical size and weight of the module?

Given the high power output of 700W-710W, these are large-format modules:

• Dimensions:2384×1303×33 mm.

• Weight: Approximately 37.5 kg.

• Note: Professional handling and appropriate mounting structures are recommended due to the size and weight.

7. Does this panel have an Anti-PID guarantee?

Yes. Through optimized cell production technology and material control, this module offers an excellent Anti-PID (Potential Induced Degradation) guarantee, ensuring minimal power loss even in harsh environments.

8. What kind of warranty does Jinko offer for the Tiger Neo series?

While specific warranties may vary by region, the Tiger Neo N-type series typically comes with:

• 12 to 15 Years Product Workmanship Warranty.

• 30 Years Linear Power Warranty (with a very low annual degradation rate, usually around 0.4% per year after the first year).

9. Is this module suitable for residential roofs?

Because of its high power output (700W+) and large dimensions (over 2.3 meters long), this module is primarily designed for utility scale projects and large commercial/industrial (C&I) installations. For residential roofs, please check if your roof space and mounting system can accommodate the size and weight.
