100kW 241kWh Commercial Industrial Air Cooling Hybrid Battery Energy Storage System

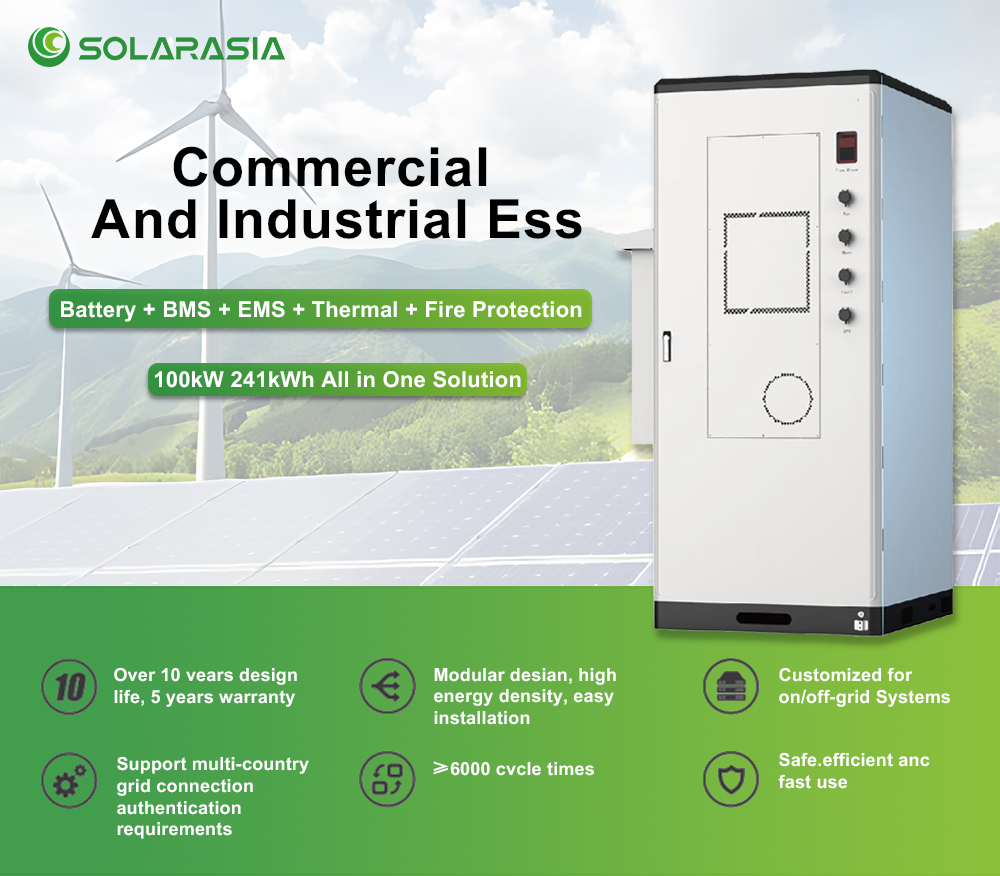

The 100kW 241kWh Commercial & Industrial Energy Storage System is a high efficiency all in one ESS solution designed for commercial and industrial energy applications. The system integrates lithium battery packs, BMS, EMS, thermal management, fire protection, and AC/DC electrical equipment into a compact cabinet.
Built with reliable Lithium Iron Phosphate (LFP) battery technology and an intelligent air cooling system, this ESS delivers stable performance, long service life, and enhanced safety. It is widely used for solar energy storage, peak shaving, backup power, demand management, and hybrid microgrid applications.
The integrated design significantly reduces installation complexity while improving operational efficiency and system reliability.

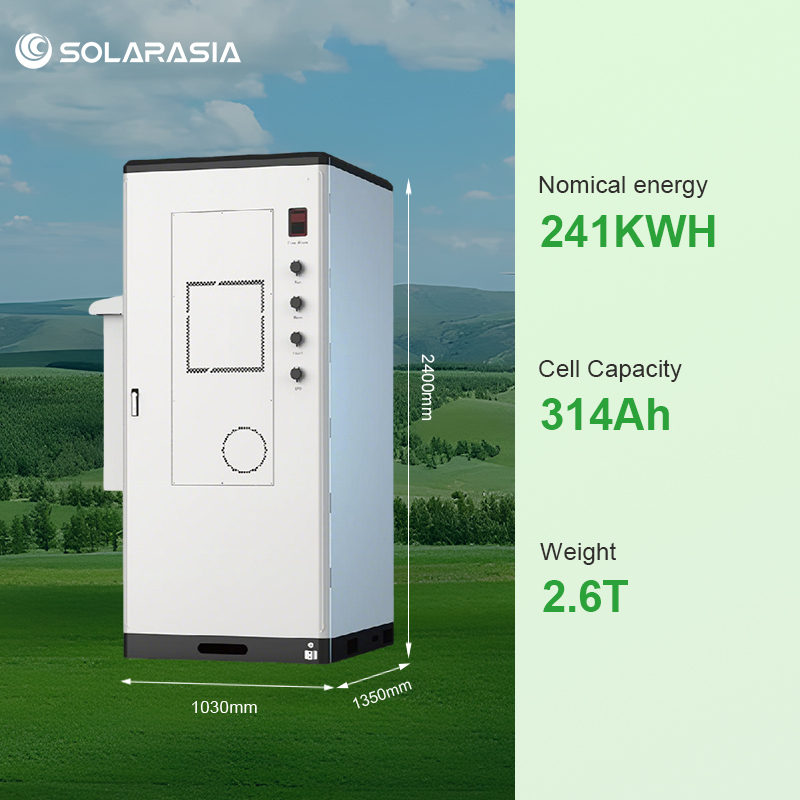

Rated Capacity :
241kWhWeight :
2.6TDimension :
1030*1350*2400mmIntegrated All in One ESS Cabinet

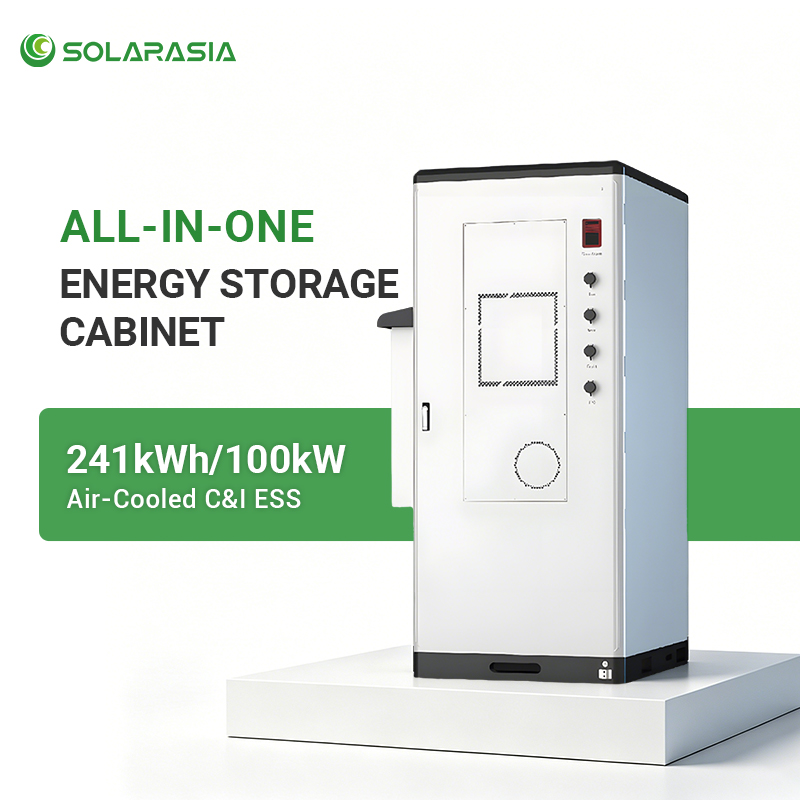

Combines battery system, EMS, BMS, cooling system, and protection devices into one compact energy storage cabinet for easy installation and maintenance.
High Power & Large Energy Capacity
Suitable for commercial buildings, factories, industrial parks, and energy storage projects.

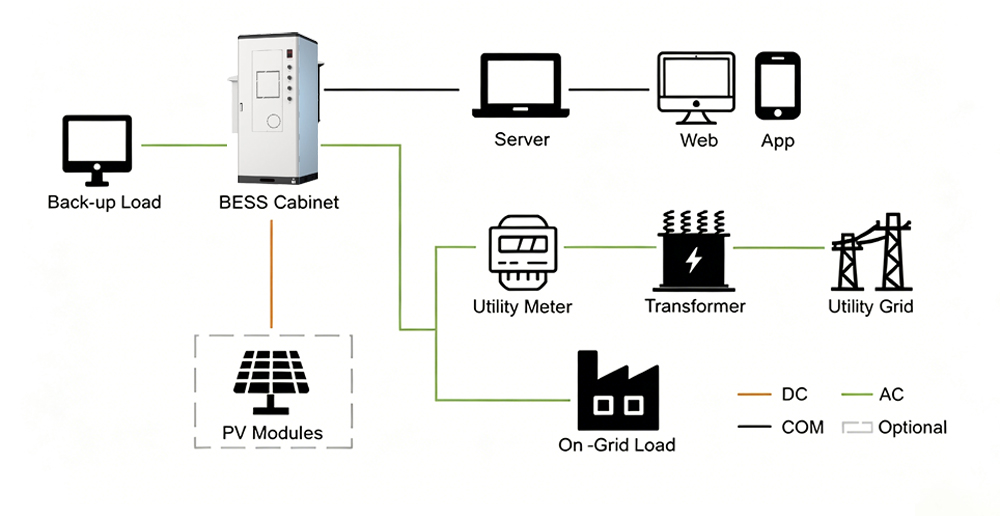

How does it work?

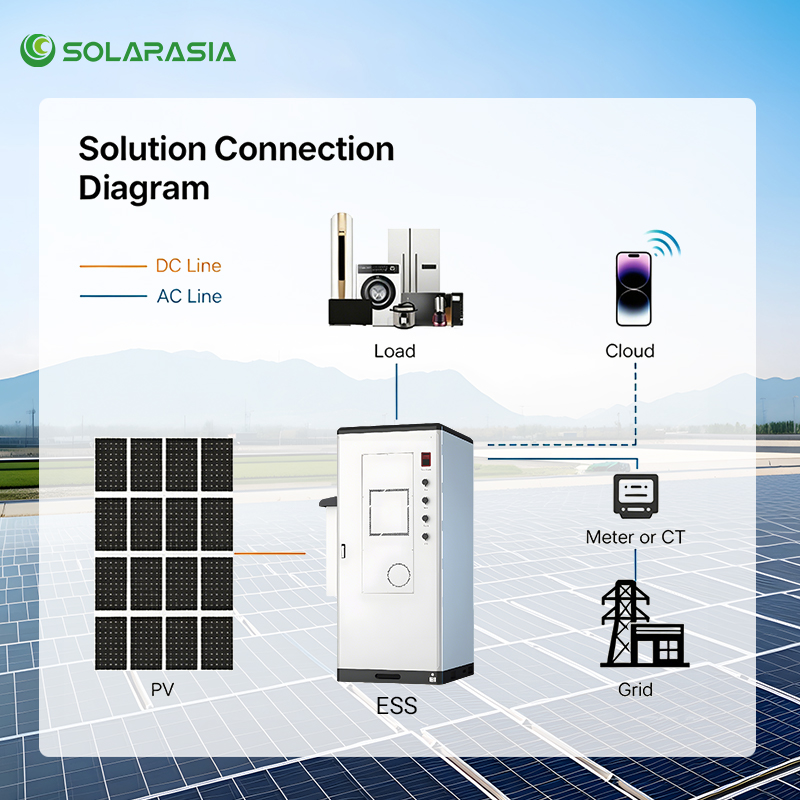

Hybrid Solar Energy Storage Support
Compatible with solar PV systems, diesel generators, and utility grids for flexible hybrid energy applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 100kW |
| Maximum Power | 110kW |
| Battery Capacity | 241kWh |
| Battery Chemistry | LFP (Lithium Iron Phosphate) |
| Battery Voltage | 768V |
| Voltage Range | 696V – 852V |
| Battery Capacity (Ah) | 314Ah |
| Cycle Life | ≥6000 Cycles |
| Cooling Method | Air Cooling |
| AC Voltage | 400V |
| Frequency | 50/60Hz |

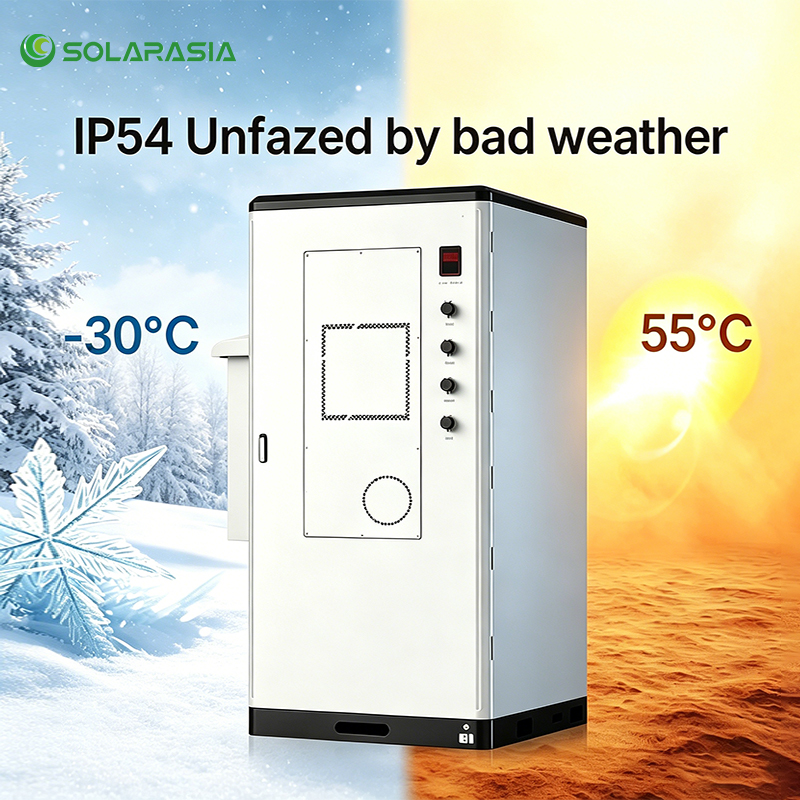

| Protection Level | IP54 |
| Communication | CAN / RS485 / 4G |
| Operating Temperature | -30°C to 55°C |
| Dimensions | 1030 × 1350 × 2400 mm |
| Weight | 2.6T |
| Warranty | 5 Years |

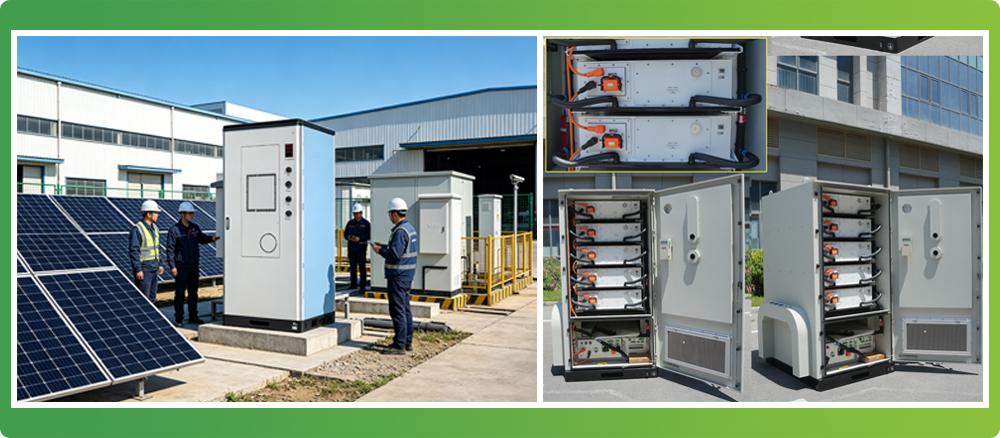

Project Case
Why Choose This Energy Storage System?
This commercial ESS solution helps businesses reduce electricity costs, improve renewable energy utilization, and increase energy independence. With advanced battery technology, intelligent management systems, and industrial grade protection, it is an ideal solution for modern commercial and industrial energy storage applications.
FAQ
Q1: What is the energy capacity of this ESS?
A1: The system provides 241kWh battery energy capacity.
Q2: What battery technology is used?
A2: The system uses Lithium Iron Phosphate (LFP) batteries for high safety and long service life.
Q3: Is this ESS suitable for solar energy storage?
A3: Yes, it supports solar PV integration and hybrid energy storage applications.
Q4: Can the system be installed outdoors?
A4: Yes, the cabinet is designed with an IP55 protection rating for outdoor environments.
Q5: What is the battery cycle life?
A5: The battery supports more than 6000 cycles under standard operating conditions.
Q6: Does the system support remote monitoring?
A6: Yes, it supports CAN, RS485, and 4G communication for smart monitoring and management.
Q7: What industries can use this ESS?
A7: It is suitable for factories, commercial buildings, industrial parks, EV charging stations, and microgrid systems.
Q8: What cooling system does the ESS use?
A8: The system uses an intelligent air cooling design for stable thermal management and reliable operation.
