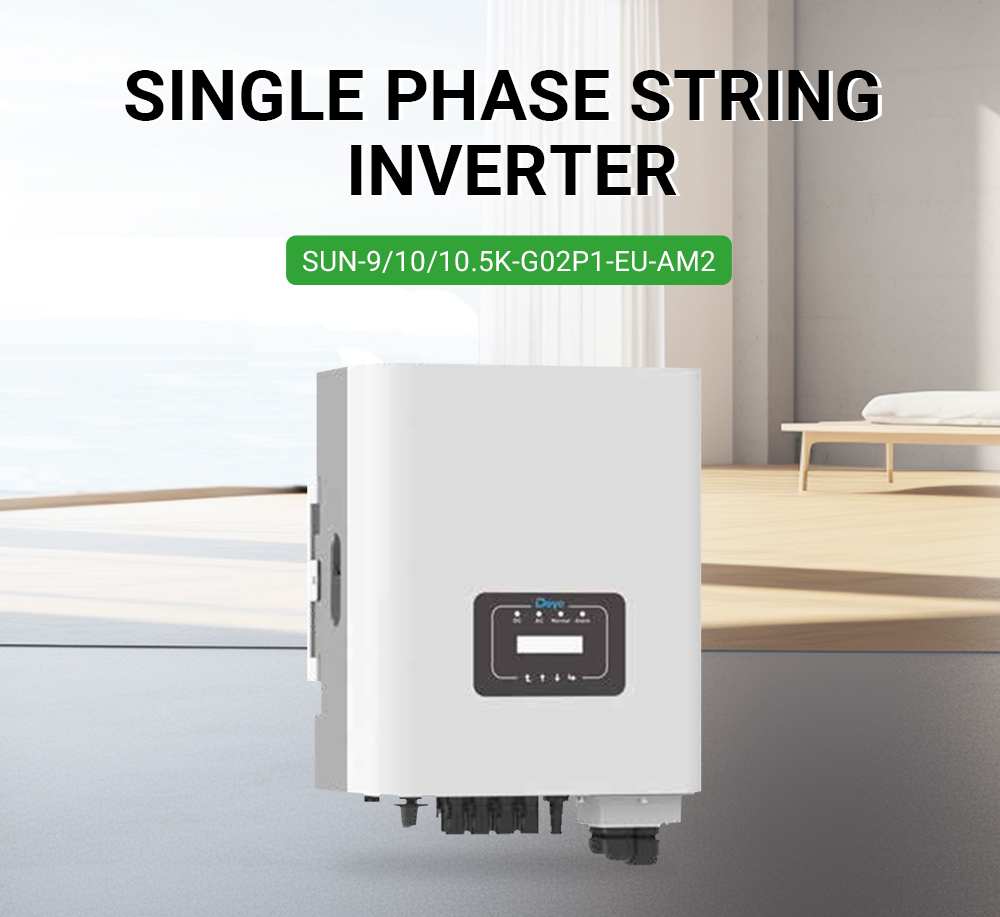

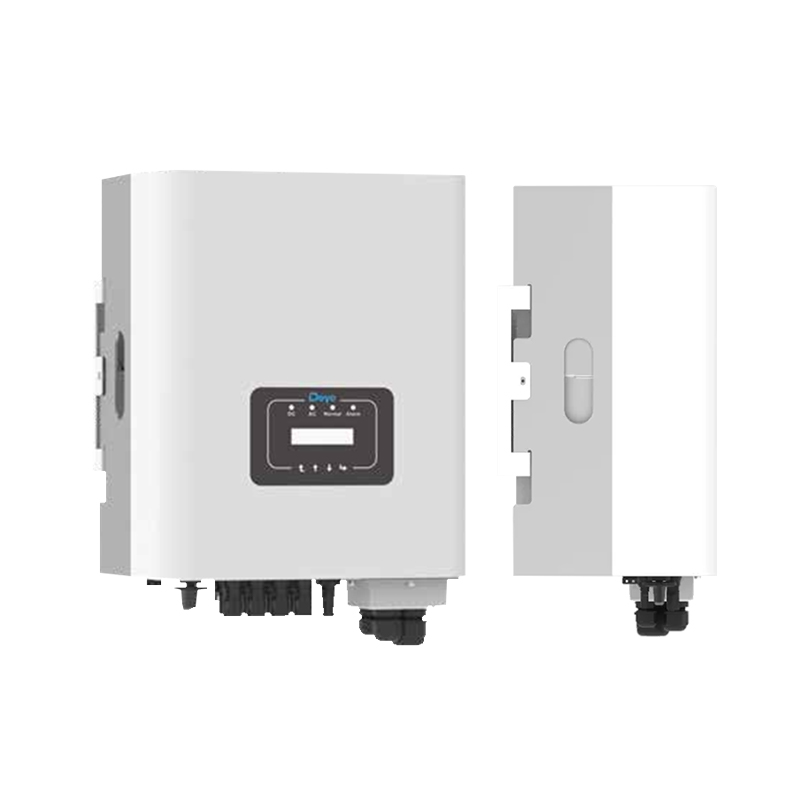

Deye SUN 9KW 10KW 10.5KW On Grid Single Phase String Inverter
Deye SUN 9/10/10.5K-G02P1-EU-AM2 is a single phase string inverter for residential and small commercial PV systems, supporting on/off grid switching, battery storage, and high efficiency for European solar applications.
Model No :
Deye SUN 9/10/10.5K-G02P1-EU-AM2Rated Power :
9/10/10.5 kWDimension :
330×410×213.5mm(Excluding Connectors and Brackets)Max Charge Current :
25 AFeel free to contact us at any time, and we will provide you with 24-hour warm service!
Product Description
Product Parameters
| Mdel | SUN-9K-G02P1-EU-AM2 | SUN-10K-G02P1-EU-AM2 | SUN-10.5K-G02P1-EU-AM2 |
| PV String Input Data | |||
| Max. PV Input Power (kW) | 13.5 | 15 | 15.8 |
| Max. PV Input Voltage (V) | 550 | ||
| Start-up Voltage (V) | 80 | ||
| MPPT Voltage Range (V) | 70-500 | ||
| Rated PV Input Voltage (V) | 360 | ||
| Max. Operating PV Input Current (A) | 26+26 | ||
| Max. Input Short Circuit Current (A) | 39+39 | ||
| No.of MPP Trackers/No.of Strings MPP Tracker | 2/2+2 | ||
| AC Output Side | |||
| Rated AC Output Active Power (kW) | 9 | 10 | 10.5 |
| Max. AC Output Apparent Power (kVA) | 9.9 | 11 | 11.55 |
| Rated AC Output Current (A) | 41/39.2 | 45.5/43.5 | 47.8/45.7 |
| Max. AC Output Current (A) | 45/43.1 | 50/47.9 | 52.5/50.3 |
| Rated Output Voltage/Range (V) | 220/230 0.85Un-1.1Un | ||
| Grid Connection Form | L/N/PE | ||
| Rated Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Total Current Harmonic Distortion THDi | <3% | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 97.70% | ||
| Euro Efficiency | 97.20% | ||
| MPPT Efficiency | >99% | ||
| Equipment Protection | |||
| DC Polarity Reverse Connection Protection | Yes | ||
| AC Output Overcurrent Protection | Yes | ||
| AC Output Overvoltage Protection | Yes | ||
| AC Output Short Circuit Protection | Yes | ||
| Thermal Protection | Yes | ||
| DC Terminal Insulation Impedance Monitoring | Yes | ||
| DC Component Monitoring | Yes | ||
| Ground Fault Current Monitoring | Yes | ||
| Arc Fault Circuit Interrupter (AFCI) | Optional | ||
| Power Network Monitoring | Yes | ||
| Island Protection Monitoring | Yes | ||
| Earth Fault Detection | Yes | ||
| Overvoltage Load Drop Protection | Yes | ||
| Residual Current (RCD) Detection | Yes | ||
| Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||
| Interface | |||
| Communication Interface | RS485/RS232 | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range (°C) | -25 to +60ºC, >45ºC Derating | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude (m) | 3000m | ||
| Noise (dB) | ≤35 | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||
| Cabinet Size (WxHxD mm) | 330×410×213.5 (Excluding Connectors and Brackets) | ||
| Weight (kg) | 14.8 | ||
| Warranty | 5 Years | ||
| Type of Cooling | Natural Cooling | ||
| Grid Regulation | IEC 61727, IEC 62116, EN 50549, NRS 097, RD 140, UNE 217002, G99 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
