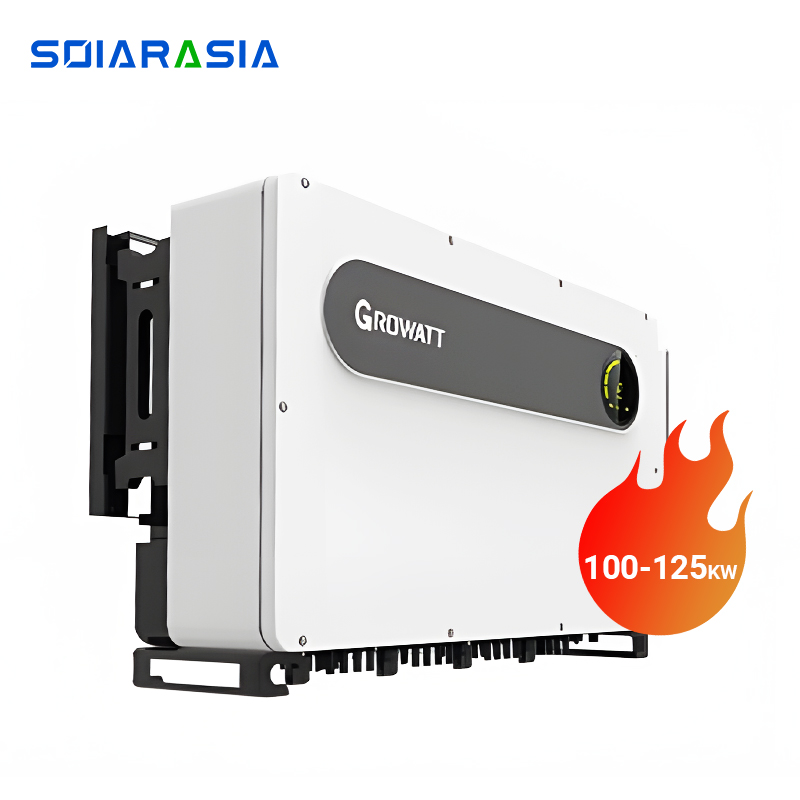

Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters

Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters
Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters
Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters
Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters

Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters

For large scale commercial and industrial energy needs, explore our comprehensive range of high power solar inverters, including the 100kw solar inverter, 110kw, 120kw, and the Growatt 125kw solar inverter. As a leader in solar on grid inverter technology, we offer reliable solar inverters that deliver exceptional performance. Get the competitive 100 kw solar inverter price you need for a superior return on investment.

  • Model No :

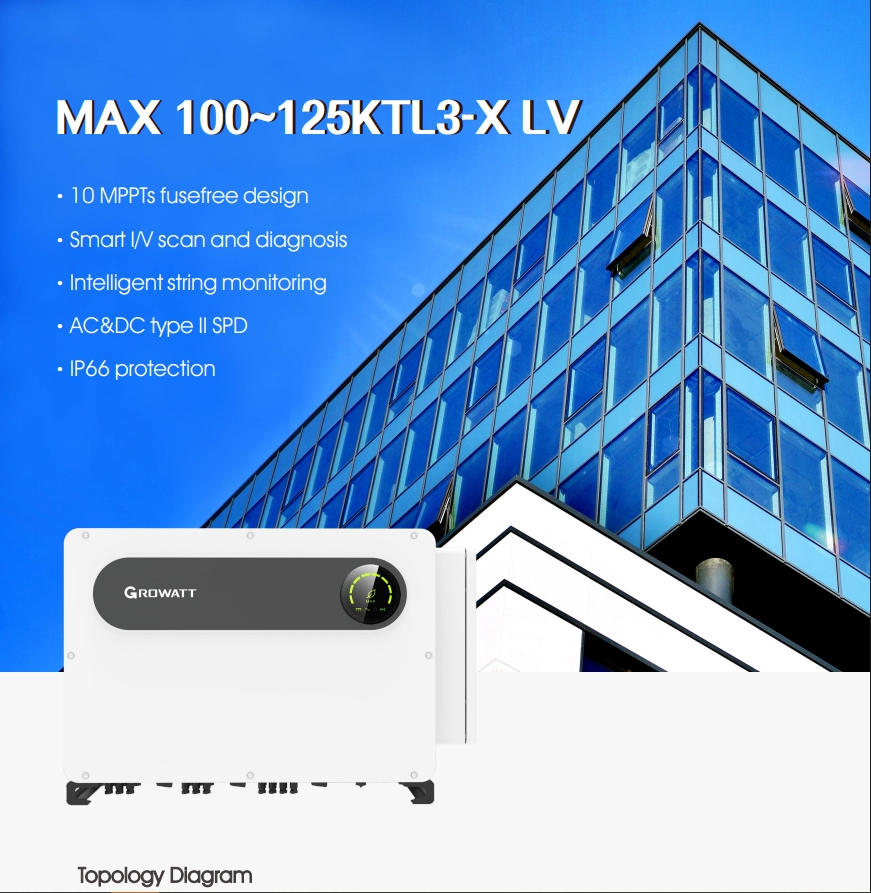

    MAX 100-125 KTL3-XLV

  • Rated Power :

    100KW /110KW /120KW/ 125KW

  • Weight :

    84KG

  • Dimension :

    970/640/345mm
Inquiry now
categories
New Products

Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters

Detailed Parameters

Item
MAX 100KTL3-XLV
MAX 110KTL3-XLV
MAX 120KTL3-XLV
MAX 125KTL3-XLV
Input data (DC)
Maximum input voltage
1100V
1100V
1100V
1100V
Minimum input voltage/open voltage
200V
200V
200V
200V
Rated input voltage
600V
600V
600V
600V
Operating voltage range
200V-1000V
200V-1000V
200V-1000V
200V-1000V
Full MPPT Voltage Range
550V-850V
550V-850V
600V-850V
600V-850V
Number of MPPT / MPPT groups per route
10/2
10/2
10/2
10/2
MPPT maximum input current per route
32A
32A
32A
32A
MPPT maximum short circuit current per circuit
40A
40A
40A
40A
Output data (AC)
Rated output power
100KW
110KW
120KW
125KW
Maximum output apparent power
110KVA
121KVA
132KVA
137.5 KVA
Maximum output current
158.8 A
174.6 A
190.5 A
198.5 A
Rated output voltage
230V/400V
230V/400V
230V/400V
230V/400V
Output voltage range
340VAC-440VAC
340VAC-440VAC
340VAC-440VAC
340VAC-440VAC
Output voltage frequency range
45~55 Hz/55-65Hz
45~55 Hz/55-65Hz
45~55 Hz/55-65Hz
45~55 Hz/55-65Hz
Power factor (cos φ)
>0.99
>0.99
>0.99
>0.99
Adjustable range of power factors
0.8 lead 0.8 lag
0.8 lead 0.8 lag
0.8 lead 0.8 lag
0.8 lead 0.8 lag
Maximum total harmonic distortion
<3%
<3%
<3%
<3%
Efficiency
Maximum efficiency
98.7%
98.7%
98.7%
98.7%
Efficiency in China
98.4%
98.5%
98.5%
98.5%
MPPT efficiency
99.9%
99.9%
99.9%
99.9%
General data
Dimensions
970/640/345mm
970/640/345mm
970/640/345mm
970/640/345mm
Weight
84 kg
84 kg
84 kg
84 kg

Authorization Certificate

Growatt Solar Inverter On Grid Inverter 100 Kw 120Kw 125Kw Solar Inverters

FAQ

Q1: Is this inverter single phase or three phase?
A1: It is a three phase on grid inverter, designed for 400V low voltage grids.


Q2: What is the typical application of this inverter?
A2: It is mainly used for commercial rooftops, industrial facilities, and large scale distributed PV plants.

Q3: How many MPPTs does it support?
A3: The inverter comes with 10 to 12 MPPTs, allowing flexible PV array design.

Q4: What is the maximum efficiency?
A4: The inverter achieves up to 99% efficiency, with a European efficiency of around 98.5%.

Q5: Can it be installed outdoors?
A5: Yes, it has an IP66 protection rating, making it suitable for outdoor installations.

Q6: Does it support smart monitoring?
A6: Yes, it supports IV curve scanning, remote diagnosis, and multiple communication options (WiFi, GPRS, RS485, PLC).

Q7: What is the maximum output power range?
A7: The series includes models from 100kW to 125kW.



Hot Tags : Growatt Solar Inverter 100 kw solar inverter 100 kva solar inverter 125kw solar inverter solar on grid inverter solar inverters
leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
submit

Related Products

Huawei Inverter 110kW Three Phase On Grid Inverter
Huawei Inverter 110kW Three Phase On Grid Inverter
The Huawei SUN2000 110KTL M2 is a high efficiency 110kW three phase on grid solar inverter, ideal for commercial and industrial PV systems with multi MPPT design and IP66 protection.
Deye SUN Series 48V 5KW 6KW 8KW 10KW 12KW Low Voltage Three Phase 2MPPT Hybrid Inverter
Deye SUN Series 48V 5KW 6KW 8KW 10KW 12KW Low Voltage Three Phase 2MPPT Hybrid Inverter
The Deye SUN-5K–12K SG04LP3 hybrid inverter series features high conversion efficiency, multiple MPPT inputs, and seamless battery compatibility, making it ideal for both residential and commercial solar energy systems.Supports smart monitoring, off grid and on grid operation.

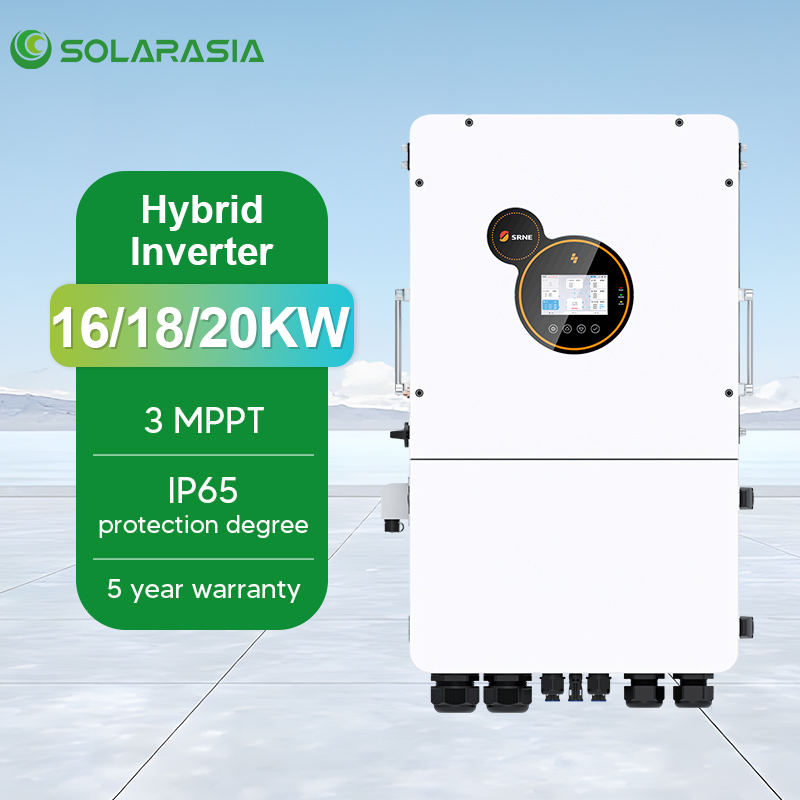

Chinese Hybrid Solar Power Inverters Srne 16 Kw 18Kw 20 Kw Solar Inverter
