50kW vs 100kW Solar System: Which One Is Right for Your Business?
For businesses looking to reduce electricity costs and increase the use of renewable energy, choosing the right solar system size is one of the most important decisions.
A small warehouse may have very different electricity requirements from a large manufacturing facility. A retail building may consume most of its electricity during the daytime, while a factory could operate multiple shifts throughout the day and night.
Two common system sizes for commercial applications are 50kW and 100kW.
A 50kW solar system can be suitable for businesses with moderate electricity consumption and limited available roof space. A 100kW solar system can provide approximately twice the installed PV capacity and may be more suitable for businesses with higher electricity demand and sufficient installation space.
However, choosing between 50kW and 100kW should not be based on system capacity alone.
Businesses should also consider:

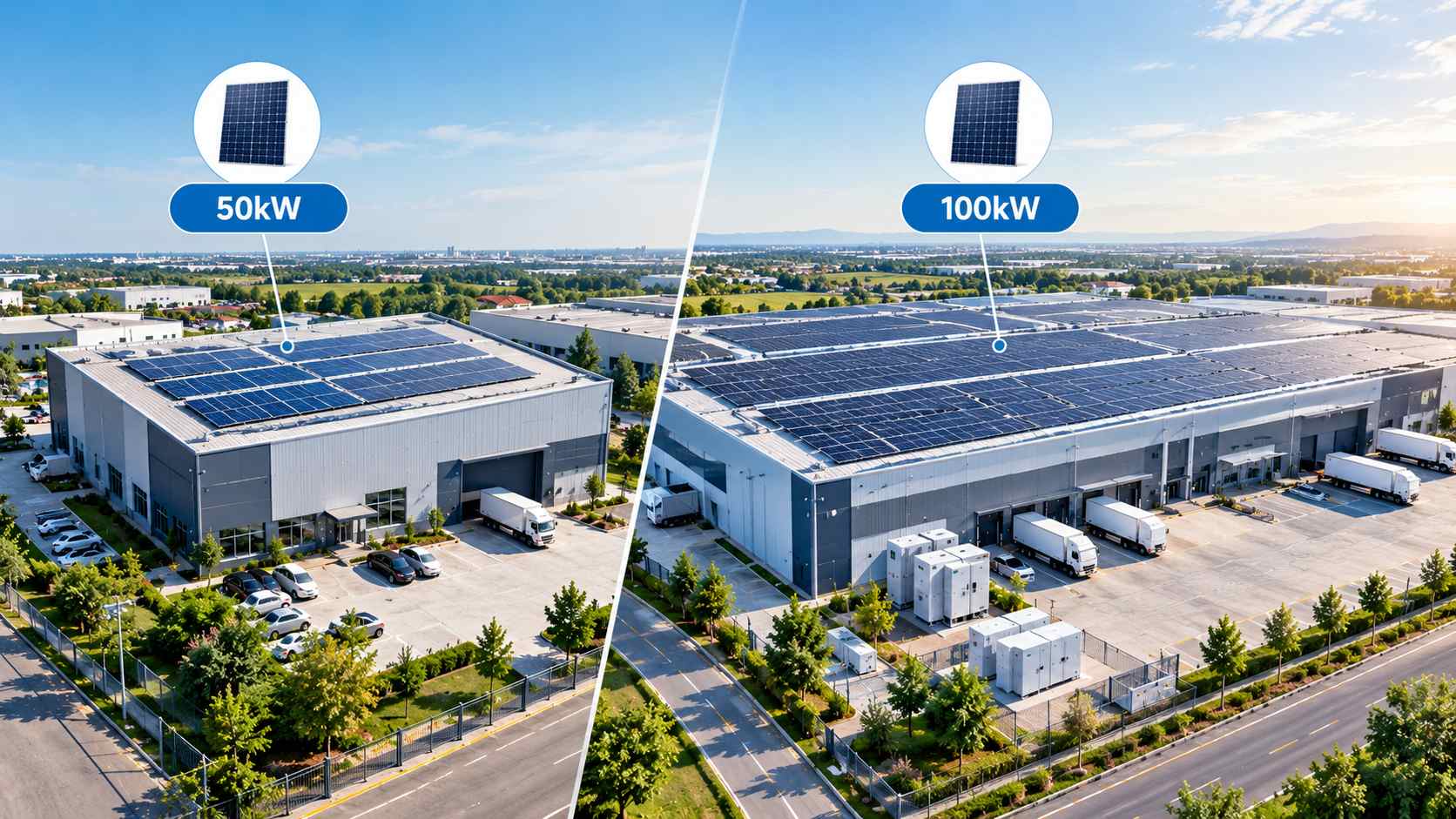

This guide compares 50kW and 100kW commercial solar systems and explains how businesses can determine which system size better fits their needs.
A 50kW solar system has a total installed PV capacity of approximately 50kW under standard test conditions.
A typical commercial system can include:
Solar Panels → DC Protection → Solar Inverter → AC Distribution → Building Loads → Grid
The system can generate electricity during daylight hours and supply it directly to commercial loads.
Depending on the local grid connection and project configuration, excess electricity may also be exported to the grid.
A 50kW system can be considered for applications such as:
The actual suitability depends on the building's electricity consumption and available installation area.
A 100kW solar system provides approximately twice the nominal PV capacity of a 50kW system.
It is commonly considered for larger commercial and industrial applications where electricity consumption is relatively high.
Typical applications can include:
A 100kW system can support a larger electricity load and generate more solar energy, but it also requires more solar modules, roof space, electrical equipment, and installation investment.

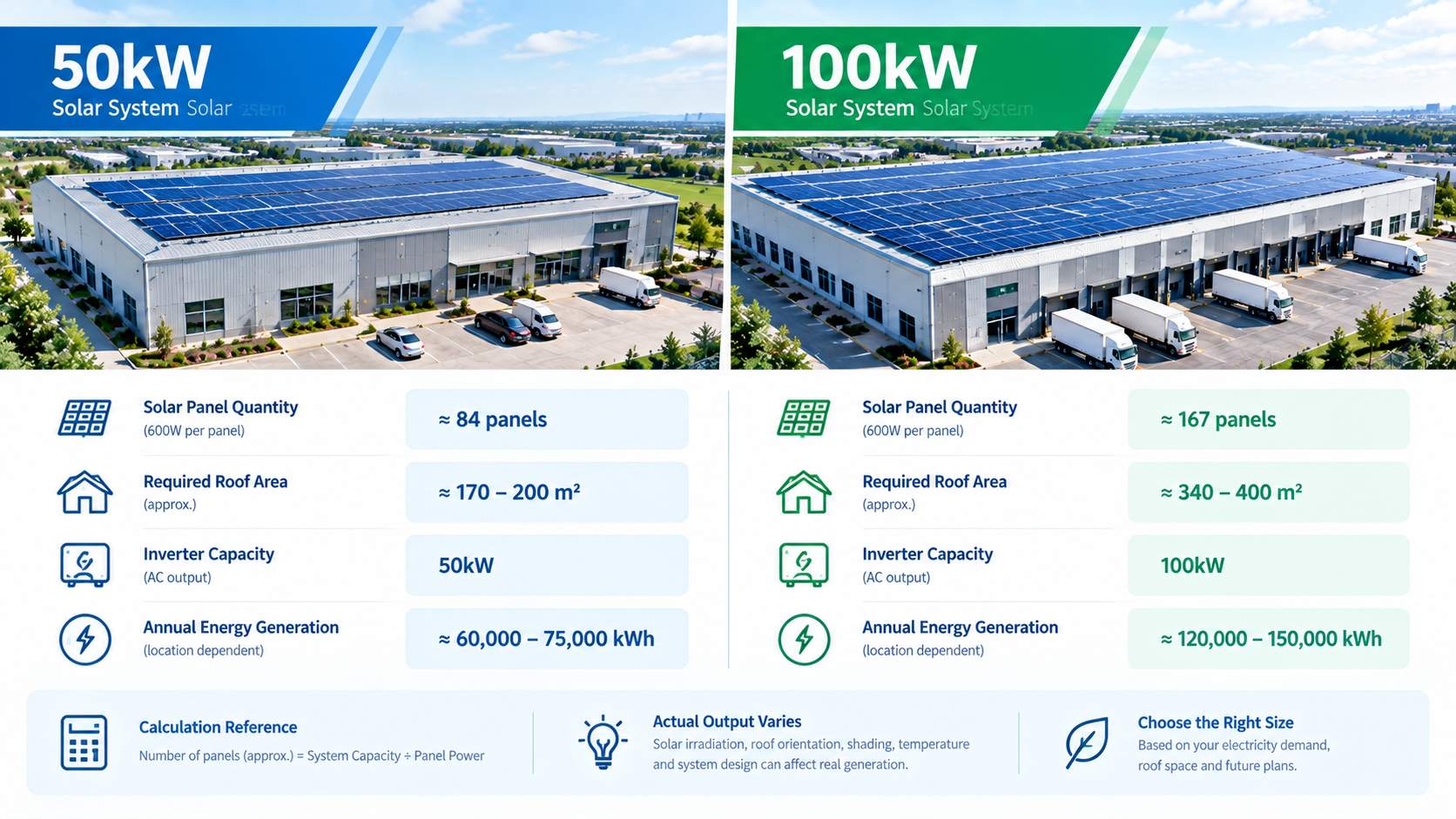

50kW vs 100kW Solar System at a Glance
| Item | 50kW Solar System | 100kW Solar System |
| Rated PV Capacity | 50kW | 100kW |
| Relative PV Capacity | 1x | 2x |
| Typical Application | Small and medium businesses | Medium and larger businesses |
| Solar Panel Quantity | Approximately 72 to 100 modules | Approximately 143 to 200 modules |
| Roof Space | Lower | Higher |
| Inverter Capacity | Around 50kW class | Around 100kW class |
| Initial Investment | Lower | Higher |
| Potential Solar Generation | Lower | Higher |
| Suitable Electricity Demand | Moderate | Higher |
| Battery Integration | Possible | Possible |
| Commercial Application | Yes | Yes |
The panel quantity is only an example. The actual number depends on the selected module power.
For example:
50kW ÷ 600W ≈ 84 panels
100kW ÷ 600W ≈ 167 panels
If 700W modules are used:
50kW ÷ 700W ≈ 72 panels
100kW ÷ 700W ≈ 143 panels
The final system design also needs to consider string voltage, current, MPPT range, roof layout, shading, module orientation, and inverter specifications.
One of the first questions businesses ask is how many solar panels are required.
The answer depends on the power rating of the selected module.
For a 50kW system:
| Solar Panel Power | Approximate Panel Quantity |
| 500W | 100 |
| 550W | 91 |
| 600W | 84 |
| 650W | 77 |
| 700W | 72 |
For a 100kW system:
| Solar Panel Power | Approximate Panel Quantity |
| 500W | 200 |
| 550W | 182 |
| 600W | 167 |
| 650W | 154 |
| 700W | 143 |
These calculations use:
System Capacity ÷ Panel Power = Approximate Panel Quantity
For example:
100,000W ÷ 600W ≈ 167 panels
Actual system design may differ slightly because installers need to configure complete PV strings and account for the electrical characteristics of the selected inverter and modules.
Roof area is an important consideration for commercial solar projects.
Modern commercial solar panels can have physical dimensions of approximately 2 square meters per module, although actual dimensions vary by manufacturer and model.
Using 600W modules as a simple example:
A 50kW system may require approximately 84 modules.
A 100kW system may require approximately 167 modules.
This means the 100kW system may require roughly twice the module area of a 50kW system.
However, the actual usable roof area will also depend on:
Therefore, businesses should not calculate the required roof area based only on the panel footprint.
Installed capacity and annual electricity generation are not the same thing.
A 100kW system has twice the nominal PV capacity of a 50kW system, but actual annual generation depends on the installation location and operating conditions.
Important factors include:
For example, if two systems are installed at the same location under similar conditions, the 100kW system would generally have approximately twice the potential PV generation of the 50kW system.
However, actual output will vary throughout the year.
This is why businesses should evaluate solar production using site specific energy simulations rather than relying only on the nominal system size.
One of the most important questions is not:
How much electricity does the business use every year?
but:
How much electricity does the business use while the solar system is generating power?
This distinction matters because commercial solar systems typically produce most of their electricity during daylight hours.

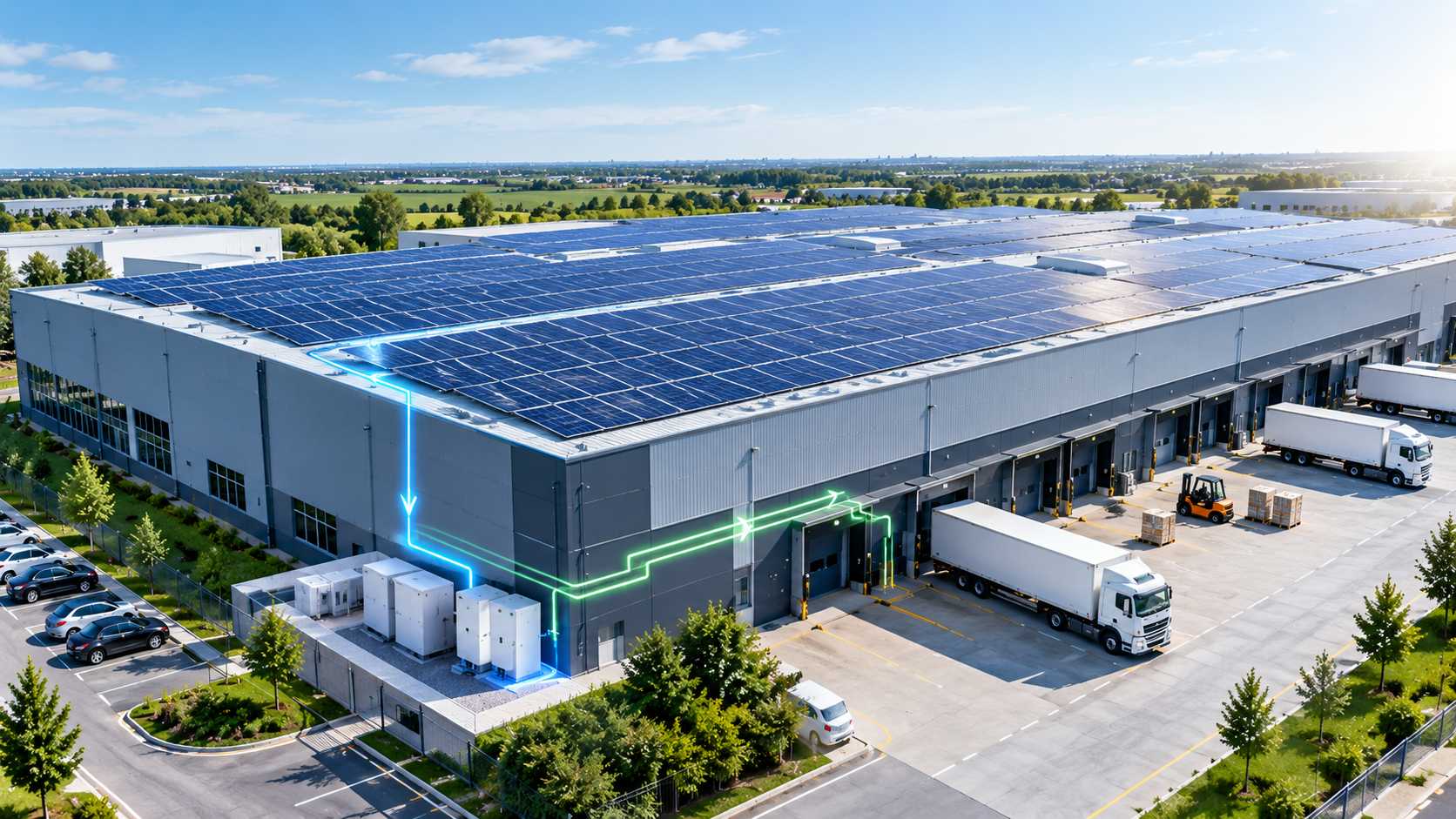

For example, a warehouse may operate primarily from 8:00 AM to 6:00 PM.
In this case, much of its daytime electricity demand may directly consume solar generation.
Another business may operate mostly at night.
That business may have lower direct solar self consumption unless battery storage or other energy management strategies are used.
Therefore, electricity consumption patterns should be analyzed before selecting between a 50kW and 100kW system.
A 50kW system may be considered when the business has moderate electricity consumption and a suitable rooftop.
Potential applications include:
Warehouses with lighting, refrigeration, ventilation, and material handling equipment can use solar power during operating hours.
Retail stores typically have lighting, HVAC, refrigeration, and electronic equipment that consume electricity throughout the day.
Workshops with moderate machinery loads may use solar generation directly during production hours.
Farms and agricultural facilities can use solar power for pumps, ventilation, refrigeration, and processing equipment.A 50kW system can also provide a practical starting point for businesses planning to expand their solar capacity later.
A 100kW system may be more suitable for businesses with higher electricity demand and sufficient roof area.
Potential applications include:
Businesses with high daytime electricity consumption may be able to use a significant portion of the solar generation directly.
For larger facilities, a 100kW system can also provide more flexibility for integrating battery storage or expanding the overall energy management system.
The inverter is another important part of the system.
A 50kW PV system may use a commercial inverter around the 50kW class, while a 100kW system may use a 100kW class inverter or an alternative multi inverter configuration.
However, PV capacity and inverter AC capacity do not always need to be exactly the same.
Solar designers may intentionally oversize the DC side within the inverter manufacturer's permitted specifications.
For example, a commercial inverter may be connected to a PV array with a higher nominal DC capacity than its AC output.
This is commonly referred to as the:
DC to AC ratio
The appropriate ratio depends on the inverter, module characteristics, location, system design, and project objectives.
Before selecting an inverter, installers should check:
Not necessarily.
The PV array and inverter should be designed as an integrated system.
For example, a commercial project could have:
100kW PV + 100kW AC inverter
or a different DC to AC configuration within the inverter manufacturer's specifications.
The appropriate configuration depends on the project's energy production goals, local solar conditions, inverter specifications, and grid requirements.
This is why simply purchasing a 100kW inverter and adding 100kW of panels does not complete the system design.
Both system sizes can be combined with battery storage.
A commercial energy storage system can help businesses shift solar energy from periods of high solar production to periods of higher electricity demand.
A simplified system could look like:
Solar Panels → Inverter → Building Loads
with:
Solar → Battery → Building Loads
Battery storage may be useful for businesses that:
For larger businesses, a 100kW PV system can potentially be combined with a larger battery system, depending on the project's load profile and objectives.
Battery sizing should be based on energy consumption and operating requirements rather than simply matching the PV capacity.
A 100kW system generally requires more equipment than a 50kW system.
The main cost components include:
Because the system is approximately twice the PV capacity, the total project investment will generally be higher.
However, the cost does not necessarily increase by exactly 100%.
Larger projects can sometimes achieve better equipment utilization and installation efficiency.
For this reason, businesses should compare the total project cost together with expected annual solar generation and electricity savings.
Return on investment depends on many factors.
These can include:
A 100kW system may generate more electricity, but if a business cannot consume much of the additional generation and grid export value is low, the additional PV capacity may not provide the expected financial benefit.
On the other hand, a business with high daytime electricity demand may be able to use much of the additional generation directly.
Therefore, the larger system is not automatically the better financial choice.
The system should be sized around the business's actual energy profile.
A practical approach is to evaluate five areas.
Review at least 12 months of electricity bills if available.
Look at:
Determine how much electricity the business uses while the solar system is operating.This is particularly important for maximizing direct solar consumption.
Check whether the roof can accommodate the required number of modules while maintaining appropriate access and spacing.
Consider whether the business plans to add:
Future electricity demand may influence the appropriate system size.
If the business has significant electricity demand outside solar production hours, battery storage may be worth evaluating.
50kW vs 100kW Solar System: Decision Guide
| Business Situation | Potentially Suitable Option |
| Limited roof space | 50kW class |
| Moderate electricity demand | 50kW class |
| Small warehouse | 50kW class |
| Large warehouse | 100kW class |
| High daytime electricity consumption | 100kW class |
| Large manufacturing facility | 100kW class or larger |
| Limited solar budget | 50kW class |
| Significant future electricity demand | 100kW class or scalable design |
| High evening consumption | Evaluate PV plus battery |
| Large available rooftop | 100kW class or larger |
These are general planning categories rather than fixed recommendations. A site specific assessment should always be completed before final system sizing.
For some businesses, a phased approach can make sense.
A company may initially install a 50kW solar system and consider future expansion based on:
However, expansion should be considered during the original system design.
The initial inverter, electrical equipment, roof layout, cable sizing, and protection equipment may need to accommodate future changes.
Planning for expansion from the beginning can help avoid unnecessary redesign.
A large roof does not automatically mean the business needs a 100kW system.Electricity demand should also be considered.
Daytime consumption is particularly important for solar self consumption.
A business may add production equipment or EV charging later.
PV voltage, current, string configuration, MPPT range, shading, and inverter compatibility also matter.
The financial performance depends on electricity prices, solar production, self consumption, investment, and local policies.
Every commercial building has a different energy profile.Two warehouses of similar size can have very different electricity consumption.
For example:
Warehouse A
Operates mainly during daylight hours and has high daytime electricity demand.
Warehouse B
Operates mainly at night with limited daytime consumption.Even if both buildings have similar roof areas, their solar system designs may be different.
A customized design should consider:
Load Profile + Solar Resource + Roof Area + PV Capacity + Inverter + Battery + Grid Connection
This approach provides a more accurate basis for determining whether a 50kW, 100kW, or larger system is appropriate.
Anhui Solarasia Energy Technology Co., Ltd. provides photovoltaic and energy storage products for commercial and industrial applications.
Our solutions can include:
For distributors, EPC contractors, installers, wholesalers, and commercial project developers, SolarAsia Power can support customized solar and energy storage configurations based on project requirements.
A commercial PV project can be designed around the customer's electricity consumption, available installation space, inverter requirements, battery storage needs, and local grid conditions.
Choosing between a 50kW and 100kW solar system is not simply a question of selecting a smaller or larger system.
A 50kW system can be suitable for businesses with moderate electricity demand and limited installation space. A 100kW system can provide substantially more PV capacity for businesses with higher electricity consumption and sufficient roof area.
The most important factors are:
Electricity Demand + Daytime Load + Roof Space + Solar Resource + Inverter Capacity + Future Energy Needs
For example, a small warehouse with moderate daytime electricity consumption may have no need for a 100kW system.
A large manufacturing facility with high daytime electricity demand may have sufficient energy consumption to make a 100kW system more practical.
Battery storage can also change the system design by allowing solar energy to be shifted to periods when the business needs more electricity.
Ultimately, the right commercial solar system is the one that matches the actual energy profile of the business.
Before making a final decision, businesses should analyze electricity bills, load profiles, roof conditions, solar resource, grid requirements, and future energy demand.
