How to Connect a Solar Panel to an Inverter? The Step-by-Step Guide Most Installers Don’t Fully Explain

Installing a solar energy system looks simple on the surface: solar panels produce electricity, and the inverter converts it into usable power.

But in reality, many beginners struggle with one key question:How to connect a solar panel to an inverter correctly and safely?

A wrong connection can reduce system efficiency, damage equipment, or even create safety risks.

In this guide, we will explain the correct process, key safety considerations, and best practices used in professional solar inverter systems.

Why the Inverter Connection Matters So Much

The inverter is the brain of the entire solar system.

It controls:

• DC to AC conversion
• System voltage regulation
• Energy output optimization
• Battery charging (in hybrid systems)
• Grid interaction

That’s why correct wiring between panels and a solar inverter is critical for performance and safety.

Before You Start: What You Need

To connect a solar panel to an inverter, you typically need:

• Solar panels (PV modules)
• Solar inverter or hybrid solar inverter
• DC cables (PV cables)
• MC4 connectors
• DC isolator switch
• Mounting structure
• Safety gloves and tools

For larger systems, especially solar battery storage systems, additional components like lithium batteries and BMS are required.

Step 1: Understand Your System Type

Before wiring anything, identify your system type:

1. Grid tied system

• No battery storage
• Power goes directly to inverter and grid

2. Hybrid system

• Uses a hybrid solar inverter
• Supports battery storage
• Can work during power outages

3. Off grid system

• Uses batteries only
• No grid connection

Each system has different wiring logic.

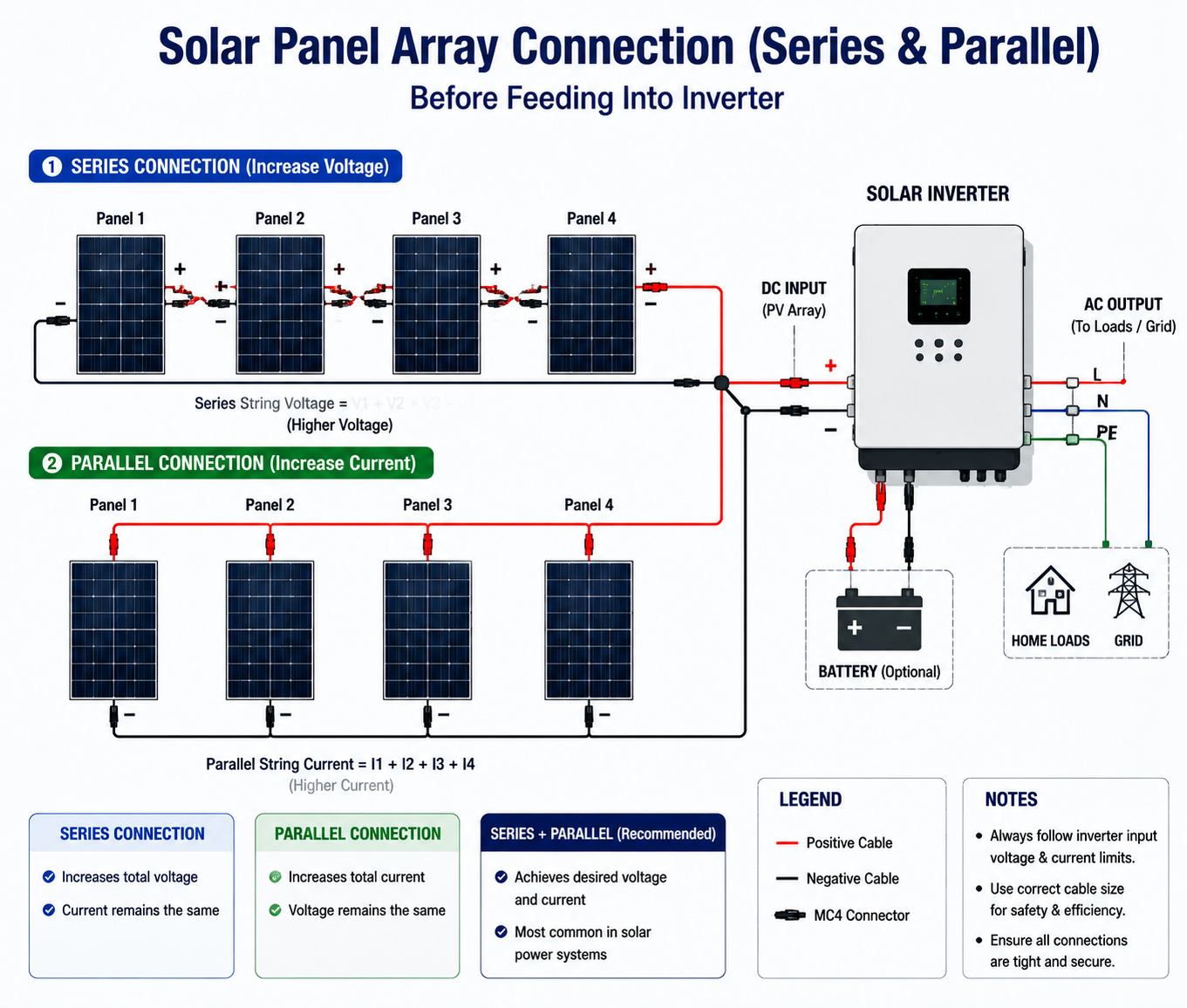

Step 2: Connect Solar Panels in Series or Parallel

Solar panels must be properly arranged before connecting to the inverter.

Series Connection

• Increases voltage
• Common for residential systems

Parallel Connection

• Increases current
• Used in larger or shaded systems

Correct configuration ensures the solar power inverter operates within its safe voltage range.

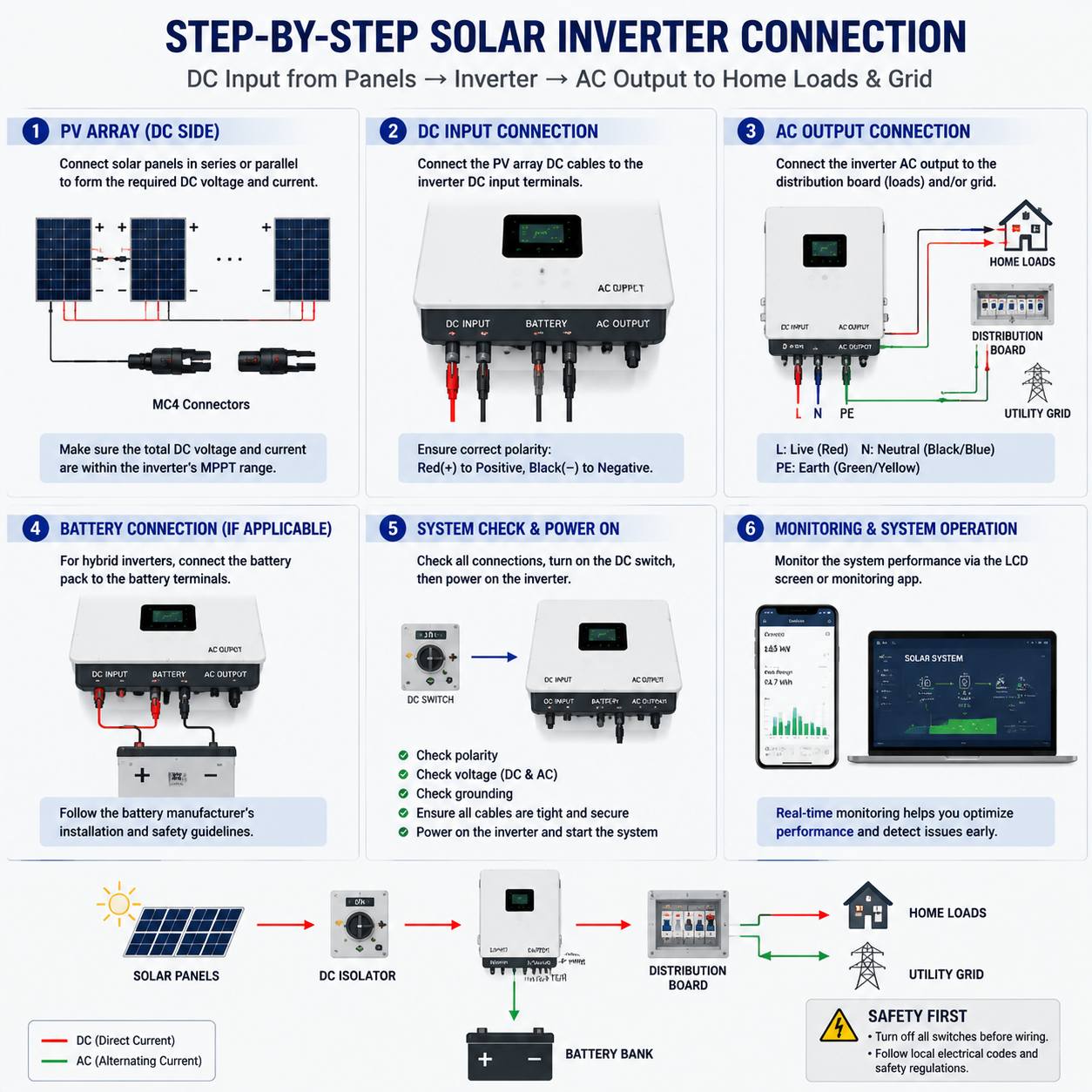

Step 3: Connect Solar Panels to the Inverter (DC Input)

Now you connect the solar array to the inverter.

Basic Steps:

• Turn OFF the inverter
• Switch OFF DC isolator
• Connect MC4 connectors from solar panels
• Plug into inverter DC input terminals

• Ensure polarity is correct (+ / -)

⚠️ Important: Incorrect polarity can damage the inverter instantly.

Modern solar inverter systems often include reverse polarity protection, but safety practices should always be followed.

Step 4: Connect AC Output to Loads or Grid

After DC connection:

• Connect inverter AC output to distribution board
• Or connect to grid system (if grid-tied)

• Ensure proper grounding

This allows converted AC electricity to power appliances or export to the grid.

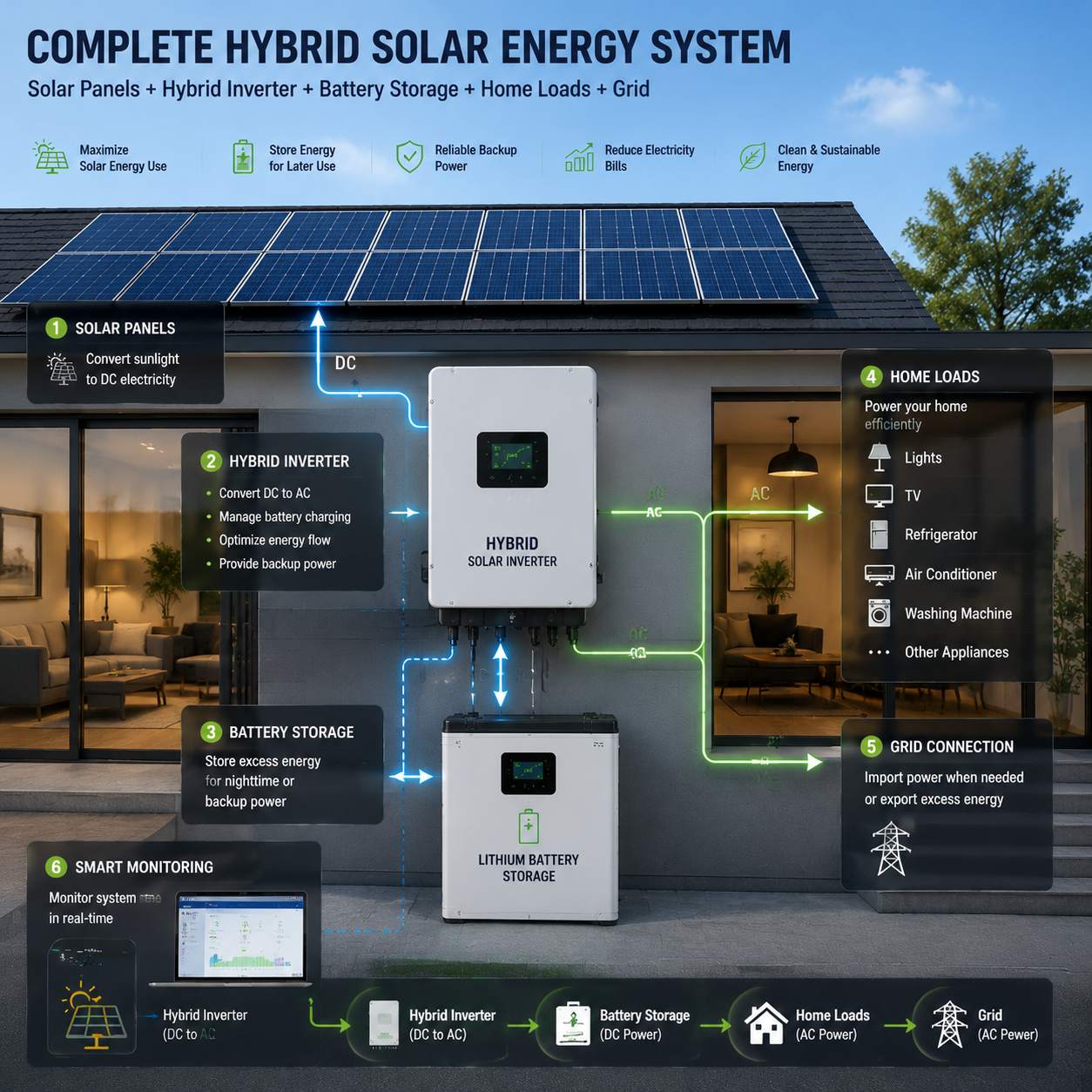

Step 5: Add Battery Storage (If Hybrid System)

If you are using a hybrid solar inverter, you can connect lithium batteries.

Benefits include:

• Energy storage for night use
• Backup power during outages
• Peak shaving for commercial users

Battery connection includes:

• Battery terminals
• BMS communication cable

• Safety fuse or breaker

This is the foundation of modern solar battery storage systems.

Common Mistakes When Connecting Solar Panels to Inverter

• Wrong polarity connection：Can damage inverter instantly
• Oversizing the solar array：May exceed inverter input voltage
• Poor cable quality：Can cause overheating and energy loss
• No grounding system：Creates serious safety risks
• Incorrect MPPT configuration：Reduces system efficiency

Safety Tips You Should Never Ignore

• Always turn off inverter before wiring
• Use certified MC4 connectors
• Follow inverter voltage limits
• Wear insulated gloves

• Use proper DC breakers

Professional installation is recommended for commercial or industrial solar inverter systems.

Why Hybrid Solar Inverters Are Becoming Popular

Modern systems increasingly use hybrid solar inverter technology because it:

• Supports solar + battery + grid
• Improves energy independence
• Reduces electricity bills
• Provides backup power

This makes hybrid systems ideal for both residential and commercial applications.

Final Thoughts

So, how to connect a solar panel to an inverter?

The process involves proper panel wiring, correct DC connection, safe inverter setup, and optional battery integration depending on system type.

Whether you are installing a small residential system or a large commercial solar inverter system, correct installation ensures higher efficiency, safety, and long-term performance.

As solar technology continues to evolve, understanding how components connect together is essential for building a reliable solar energy system.
