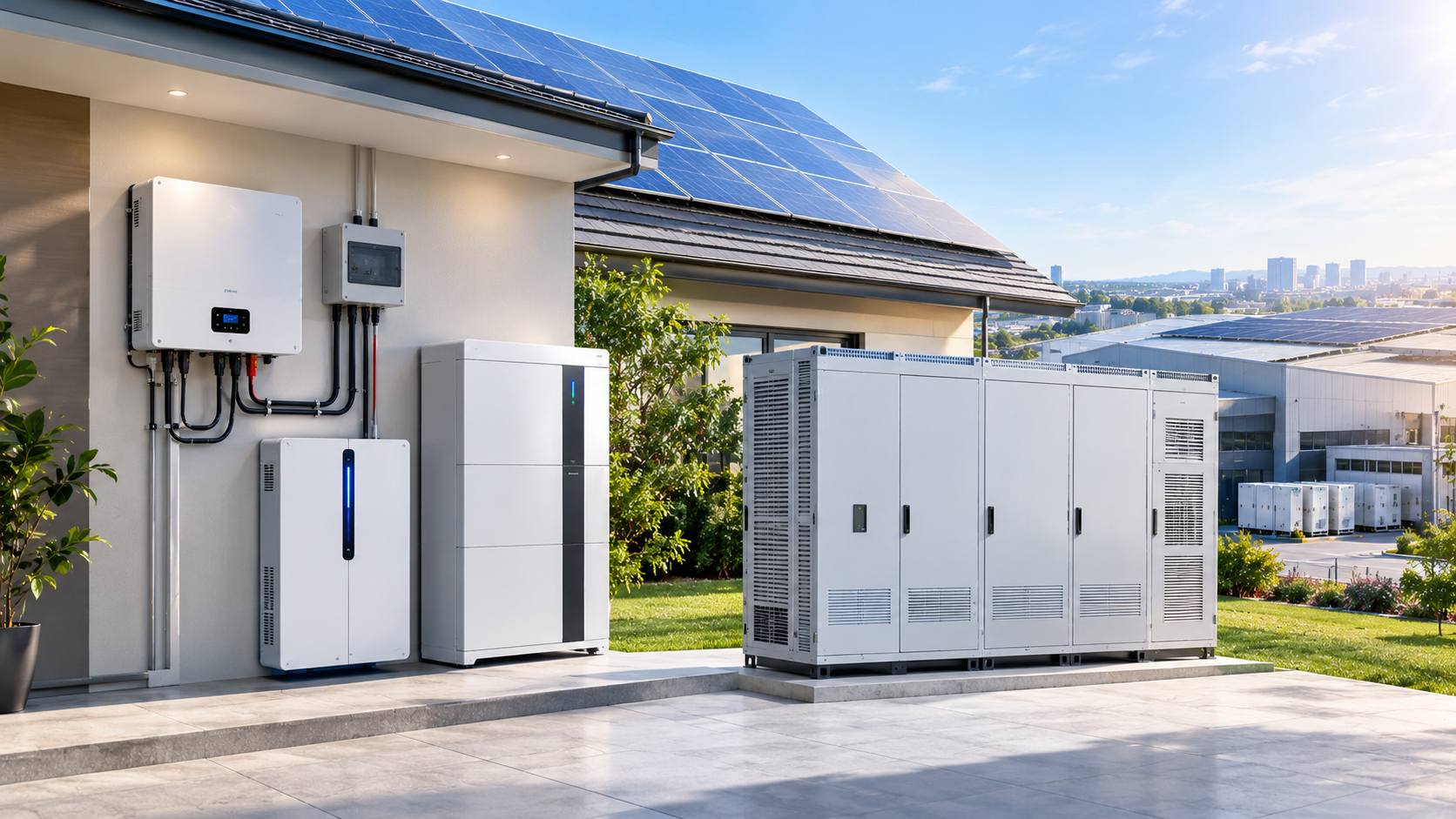

How to Choose the Right Solar Battery for Your Solar System?
Solar panels can generate clean electricity during the day, but solar production does not always match a building's electricity consumption.
A home may generate more electricity than it needs during the afternoon, while electricity demand increases in the evening. Commercial and industrial facilities can have similar differences between solar generation and load demand.
Adding battery storage allows excess electricity to be stored and used later.
However, choosing a battery is not simply a matter of selecting the largest capacity available. Battery voltage, usable capacity, power rating, chemistry, inverter compatibility, operating environment and intended application all need to be considered.
The right solar battery should work together with the PV system, inverter and electrical loads as part of a complete energy storage solution.
In this guide, we explain the key factors to consider when selecting a battery for a residential, commercial or industrial solar system.
A battery allows electricity generated by solar panels to be stored for later use.
A basic solar system works like this:
Solar Panels → Solar Inverter → Building Loads
When battery storage is added, the energy flow becomes more flexible:
Solar Panels → Building Loads + Battery Charging
Later:
Battery → Inverter → Building Loads
This can help businesses and homeowners increase solar self consumption and reduce dependence on grid electricity during selected periods.
Depending on the system design, battery storage can also support:
The best battery depends on which of these objectives is most important.
There are several important specifications to compare before selecting a battery.
The main factors include:
Let's look at each factor in more detail.
Battery chemistry has a major impact on performance, safety, lifespan and application.
For modern solar energy storage systems, lithium based batteries are widely used.
One of the most common options is lithium iron phosphate, commonly known as LiFePO4.
LiFePO4 batteries are widely used for residential and commercial energy storage because they offer a combination of:
They are used in applications ranging from residential wall mounted batteries to larger commercial battery storage systems.
For many modern solar battery storage applications, LiFePO4 is an important technology to consider.
Battery capacity is normally measured in kilowatt hours, or kWh.
It represents how much energy the battery can store under specified conditions.
For example:
10kWh battery = approximately 10kWh nominal energy capacity
However, the usable energy may be lower depending on the battery's operating limits.
The required capacity should be based on the actual electricity consumption and the purpose of the storage system.
For example, a homeowner may want enough energy to cover evening electricity consumption.
A commercial building may need storage for several hours of peak demand management.
An off grid facility may require substantially more storage to maintain electricity availability during periods of low solar generation.
A simple starting calculation is:
Required Battery Capacity ≈ Energy Demand × Required Backup or Discharge Time
For example, if selected loads consume approximately 20kW and the target support period is four hours:
20kW × 4 hours = 80kWh
This does not mean an 80kWh nominal battery will always provide four hours of operation.
Real system design needs to account for:
Therefore, professional system sizing should use actual load data rather than relying only on a simple calculation.
This is one of the most important concepts when choosing a battery.
Battery capacity indicates how much energy can be stored.
Battery power indicates how much power the battery can charge or discharge at a given time.
For example, a battery system may be rated around:
100kW / 215kWh
This means the system has approximately 100kW of power capability and 215kWh of nominal energy capacity under specified conditions.
A battery with sufficient kWh but insufficient kW may not be able to support high power loads.
This is particularly important for commercial and industrial applications.
Battery voltage is another important specification.
Solar battery systems can generally be divided into low voltage and high voltage configurations.
Low voltage batteries are commonly used in residential and smaller energy storage applications.
Typical applications include:
High voltage battery systems can be suitable for larger systems where higher power and energy requirements exist.
Applications can include:
The battery voltage needs to match the inverter or PCS architecture.
You should never select a battery based only on its capacity without checking electrical compatibility.
Nominal capacity and usable capacity are not always the same.
For example, a battery may have a nominal capacity of 100kWh, but the amount of energy available for normal operation may be lower depending on the configured state of charge limits.
This is why buyers should compare:
Nominal Capacity
and
Usable Capacity
rather than looking only at the headline kWh figure.
Usable capacity gives a more practical indication of how much energy can actually be delivered to the loads.
Depth of discharge, commonly called DoD, indicates how much of the battery's available capacity is used during a discharge cycle.
For example, if a battery has a 100kWh nominal capacity and operates at an 80% depth of discharge:
100kWh × 80% = 80kWh
approximately represents the energy used during that cycle before considering conversion losses.
A higher usable depth of discharge can provide more available energy from the same nominal battery capacity.
However, battery operating limits should always follow the manufacturer's specifications.
Cycle life is an important specification for solar energy storage.
A battery experiences charging and discharging cycles during operation.
For example:
Solar Generation → Battery Charging → Battery Discharging → Load
This represents a basic charge and discharge cycle.
A battery's cycle life can be affected by:
When comparing batteries, do not consider cycle life separately from the conditions under which the cycle life is specified.
A high cycle count without understanding the testing conditions may not provide a complete picture of battery performance.
Battery and inverter compatibility is essential.
The battery must be compatible with the electrical and communication requirements of the inverter or PCS.
Important factors may include:
For example, a low voltage battery should not simply be connected to an inverter designed for a high voltage battery system.
Before purchasing, verify the approved battery and inverter compatibility list.
The Battery Management System, or BMS, is an important part of a modern lithium battery.
The BMS can monitor and manage:
The BMS helps maintain the battery within its specified operating conditions.
For modular systems, the BMS can also help coordinate multiple battery modules.
Where the battery will be installed can affect the appropriate product selection.
For indoor residential applications, a compact wall mounted or floor mounted battery may be suitable.
For commercial and industrial applications, outdoor battery cabinets may be preferred.
Important considerations include:
For outdoor commercial applications, the enclosure should provide appropriate protection against environmental conditions.
Safety is a critical consideration when selecting any energy storage system.
A commercial or residential battery may include multiple layers of protection.
These can include:
The specific safety architecture varies between battery products.
Buyers should also check applicable certifications and local installation requirements.
Battery performance can be affected by temperature.
Very high or very low temperatures can influence:
For commercial systems, the installation environment should therefore be evaluated before selecting the battery.
Depending on the application, thermal management or battery heating and cooling may be required.
One common question is whether a low voltage or high voltage battery is better.
There is no universal answer.
The correct choice depends on the inverter, system power, installation requirements and application.
| Feature | Low Voltage Battery | High Voltage Battery |
|---|---|---|
| Typical Application | Residential and small systems | Larger residential and commercial systems |
| System Power | Lower to medium | Medium to high |
| System Architecture | Relatively simple | More specialized |
| Installation | Flexible for smaller systems | Suitable for larger systems |
| Inverter Compatibility | LV compatible inverter | HV compatible inverter |
| Commercial Application | Selected projects | Common for larger systems |
The key point is compatibility.
A higher voltage battery is not automatically better for every solar system.
The answer depends on the PV system and electricity consumption.
Consider three basic scenarios.
A home may need battery storage primarily for evening consumption and backup power.
The battery can be sized according to:
Daily Household Consumption + Desired Backup
A business may use batteries for:
The battery should be sized using actual load profiles and operating objectives.
An off grid system may require substantially more storage.
The design should account for:

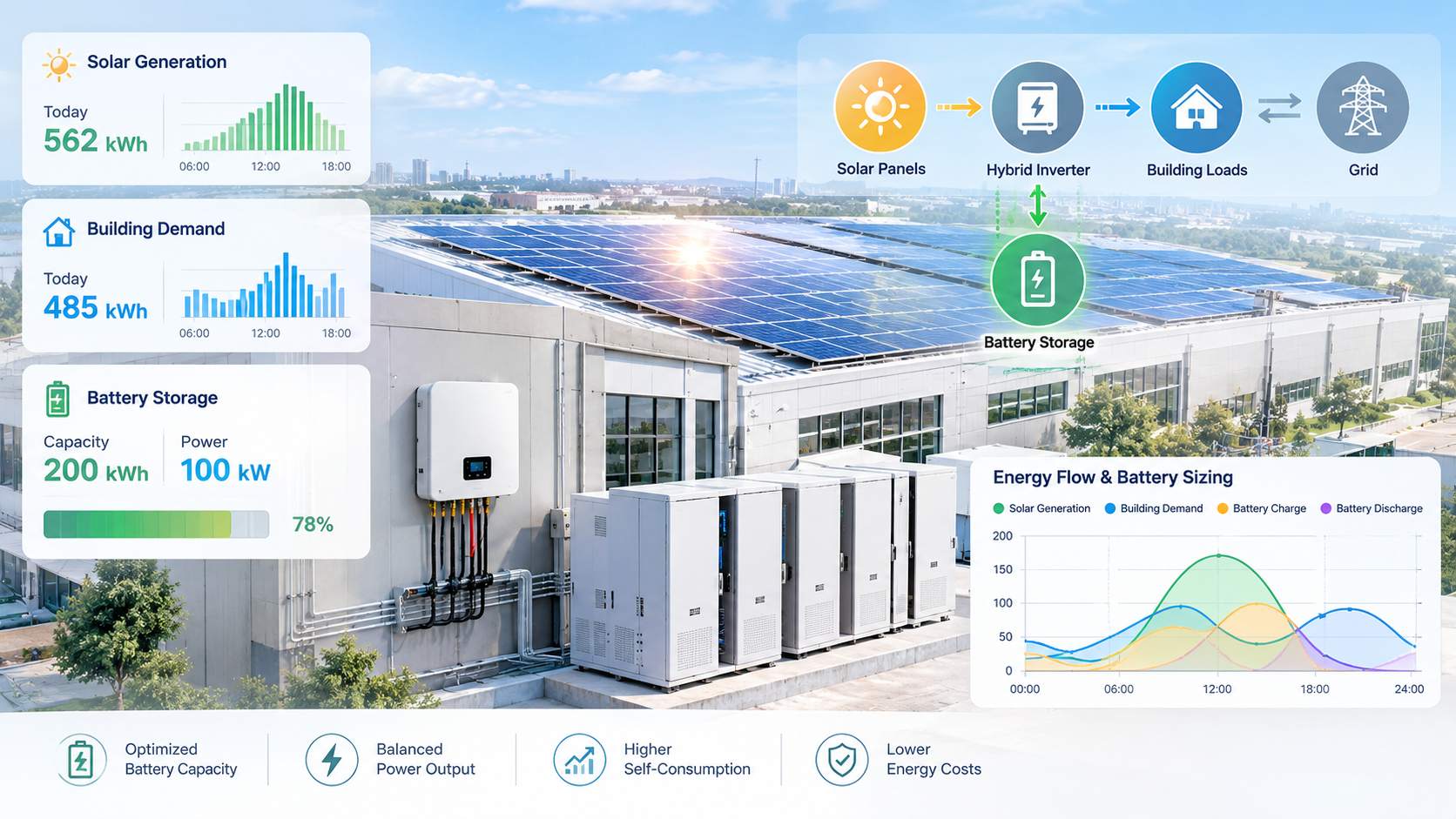

Imagine a commercial building has the following simplified profile:
Average Daily Consumption: 600kWh
Daytime Solar Generation: 500kWh
The building consumes much of its solar generation during the day, but there is still electricity demand after solar production decreases.
A battery could be used to shift a portion of daytime solar energy toward later periods.
However, it would not automatically make sense to install a 500kWh battery.
The correct battery size depends on:
This is why load profile analysis is more useful than sizing a battery based only on the PV capacity.
The battery can be integrated into a solar system using different architectures.
A simplified configuration is:
Solar Panels → PV Inverter → AC Bus
and:
Battery ↔ PCS → AC Bus
AC coupling can be particularly useful when adding battery storage to an existing PV system.
The existing solar inverter may potentially remain in place while a separate battery system is added.
A simplified configuration is:
Solar Panels → DC Bus / Hybrid Inverter ↔ Battery
The PV and battery share a DC side conversion architecture.
DC coupling can be attractive for certain new solar and storage projects.
The appropriate architecture depends on the project design and equipment compatibility.
For commercial applications, the best battery is not necessarily the battery with the highest capacity.
A suitable commercial battery should match:
For larger projects, modular lithium battery systems can provide flexibility.
Multiple battery modules or cabinets can be combined to achieve the required energy capacity.
This can make modular systems useful for warehouses, factories, commercial buildings and other C&I applications.
Peak shaving is an important application for commercial battery storage.
A business may experience short periods of high electricity demand.
For example:
Normal Demand → 300kW
Peak Demand → 500kW
A battery system may discharge during selected peak periods to reduce grid demand.
The required battery power depends on how much peak demand needs to be reduced.
The required battery capacity depends on how long the peak period lasts.
Therefore:
Peak Shaving Battery Size = Required Power × Peak Duration
This is a simplified concept and should be refined using actual interval load data.
If backup power is the main purpose, battery selection should focus on critical loads.
Instead of asking:
"How large is the solar system?"
ask:
"Which loads must continue operating during an outage?"
For example, a business may need to support:
The battery and inverter can then be sized around the required critical load.

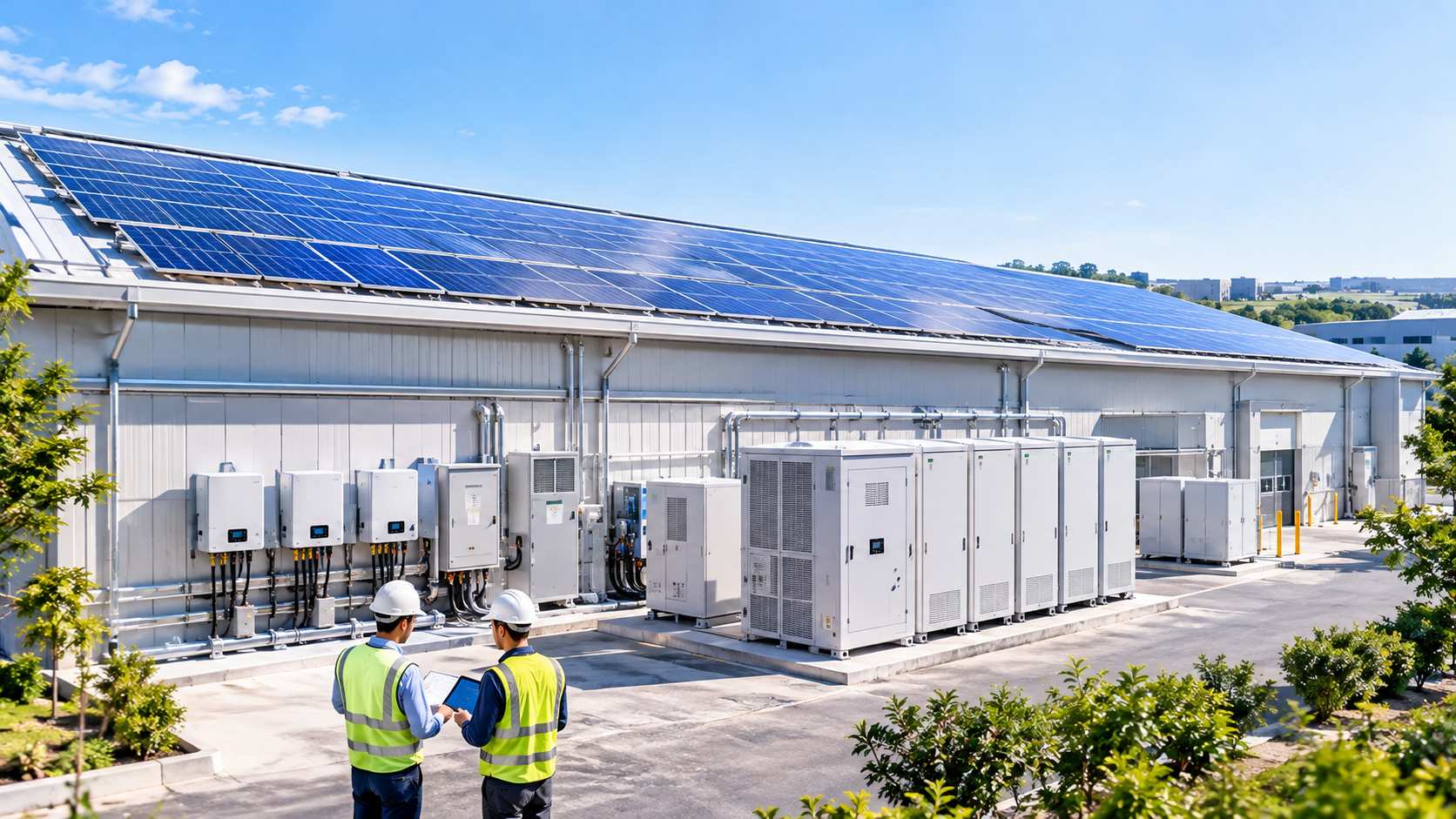

Yes, in many cases.
An existing solar PV system can potentially be upgraded with battery storage.
The available options depend on the existing inverter architecture.
For example:
Existing PV + AC Coupled Battery
can be a practical retrofit approach.
Another possibility is replacing or upgrading the inverter with a compatible hybrid system.
Before adding a battery, check:
A professional assessment should be completed before selecting equipment.
When comparing products from different manufacturers, create a specification checklist.
| Specification | What to Check |
|---|---|
| Battery Chemistry | LiFePO4 or other chemistry |
| Nominal Capacity | Total kWh |
| Usable Capacity | Available energy |
| Voltage | Low voltage or high voltage |
| Rated Power | kW |
| Charge Power | Maximum charging capability |
| Discharge Power | Maximum discharge capability |
| Cycle Life | Specified operating conditions |
| BMS | Integrated battery management |
| IP Rating | Indoor or outdoor suitability |
| Communication | CAN, RS485 or other compatible protocol |
| Operating Temperature | Application environment |
| Safety Certifications | Applicable standards |
| Warranty | Product and performance coverage |
This makes it easier to compare batteries based on the actual project requirements rather than marketing claims alone.
A larger battery is not always a better battery.
If the system cannot use the stored energy effectively, excessive capacity can increase project cost without providing proportional benefits.
A battery may have plenty of kWh but insufficient kW to support high power loads.
The battery and inverter need to communicate and operate within compatible voltage and current ranges.
Cycle life should be evaluated together with depth of discharge, temperature and test conditions.
An indoor battery and an outdoor battery cabinet may have very different requirements.
Commercial customers may increase electricity consumption in the future.A modular battery system can provide greater flexibility when expansion is expected.
Before purchasing a battery, answer these questions:
Is the battery for:
Determine the required kWh based on actual consumption.
Determine the required kW based on the loads the battery must support.
Check whether the system requires low voltage or high voltage batteries.
Check the approved inverter and PCS compatibility list.
Determine indoor or outdoor installation requirements.
If yes, consider modular battery solutions.
Verify applicable local and international standards.
Check both product warranty and battery performance warranty.
Communication and monitoring are increasingly important for commercial energy storage systems.
Anhui Solarasia Energy Technology Co., Ltd. provides lithium battery and energy storage solutions for residential, commercial and industrial applications.
Our product portfolio includes:
Address : Room 908-909, Building 2, No. 469 Huatuo Lane, Shushan District, Hefei City, Anhui Province
Please read on, stay posted, subscribe, and we welcome you to tell us what you think.
Copyright 2026 @ Anhui Solarasia Energy Technology Co.,Ltd .All Rights Reserved. Sitemap | Blog | XML | Privacy Policy
Network Supported
