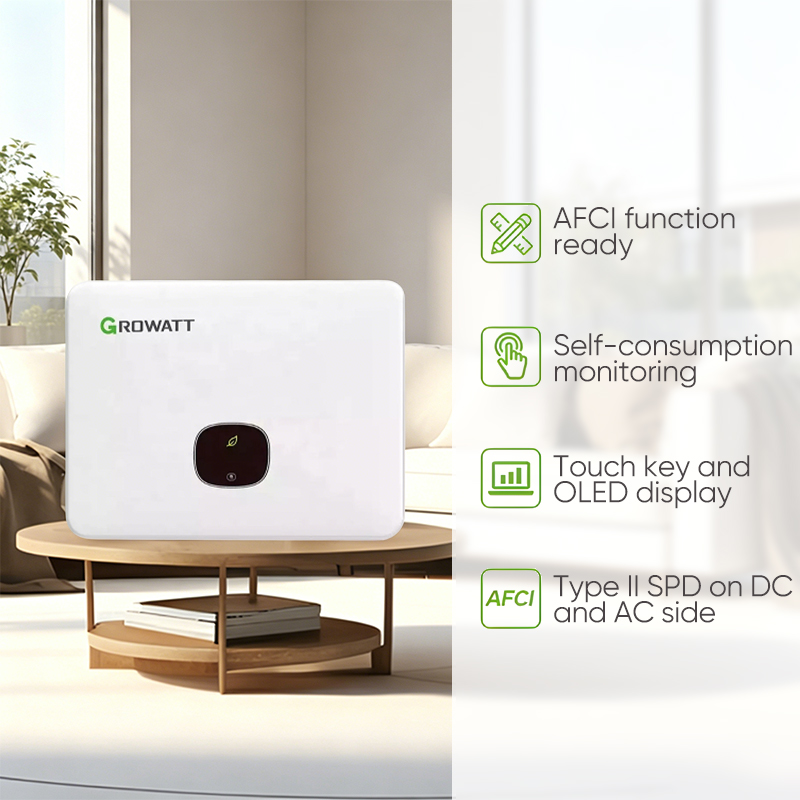

Growatt 25kw 33kw 36kw 40kw High Voltage 3 Phase on Grid Solar Inverters
The Growatt MID 25-40KTL3-X series is a high performance commercial solar inverter designed for medium and large scale photovoltaic systems. Supporting 25kW to 40kW power ranges, this three phase on grid inverter delivers stable performance, intelligent monitoring, and high conversion efficiency for commercial and industrial solar applications.
With up to 98.8% maximum efficiency, multiple MPPT trackers, AFCI protection, and IP66 waterproof design, the MID series is ideal for factories, warehouses, shopping malls, farms, and commercial rooftop solar power systems.
Model No :
MID 25-40KTL3-XWeight :
30.5KGDimension :

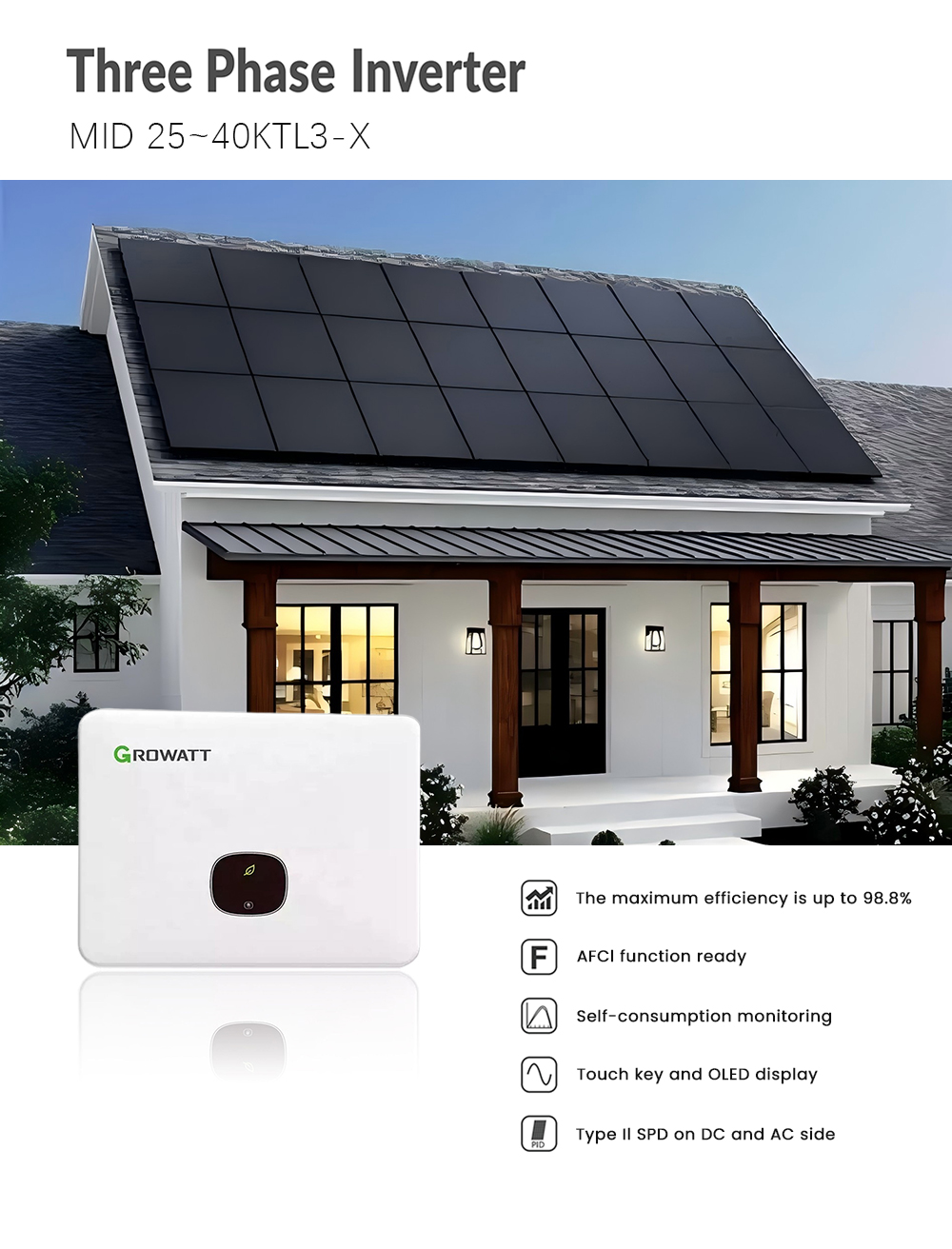

580/435/230mmGrowatt MID 25-40KTL3-X Commercial Solar Inverter
Product Highlights
1. High Efficiency Three Phase Solar Inverter
This 25kW–40kW three phase solar inverter delivers up to 98.8% maximum efficiency, improving solar energy conversion and maximizing PV system output for commercial and industrial solar projects.
Why Choose Growatt MID 25-40KTL3-X Inverter?
Commercial solar projects require stable power output, high safety standards, and intelligent energy management. The Growatt MID KTL3-X series is specifically designed to meet the needs of industrial and commercial PV installations.
Its advanced MPPT technology improves solar energy harvesting efficiency, while intelligent monitoring helps users manage power generation remotely. The compact wall mounted design also reduces installation space and maintenance costs.
Technical Specifications
| Model | MID 25KTL3-X | MID 30KTL3-X | MID 33KTL3-X | MID 40KTL3-X |
|---|---|---|---|---|
| Rated AC Power | 25kW | 30kW | 33kW | 40kW |
| Max Efficiency | 98.8% | 98.8% | 98.8% | 98.8% |
| MPPT Quantity | 3 | 3 | 4 | 4 |
| Max DC Voltage | 1100V | 1100V | 1100V | 1100V |
| MPPT Voltage Range | 200V-1000V | 200V-1000V | 200V-1000V | 200V-1000V |
| Protection Level | IP66 | IP66 | IP66 | IP66 |
| Cooling Method | Smart Air Cooling | Smart Air Cooling | Smart Air Cooling | Smart Air Cooling |
| Communication | RS485/WiFi/LAN | RS485/WiFi/LAN | RS485/WiFi/LAN | RS485/WiFi/LAN |
Frequently Asked Questions
Q1:What is the power range of this three phase solar inverter?
A1:This commercial solar inverter series includes 25kW, 30kW, 33kW, 36kW, and 40kW models for different photovoltaic system requirements.
Q2:What is the maximum efficiency of the inverter?
A2:The inverter offers up to 98.8% maximum efficiency and 98.5% European efficiency, helping improve solar power generation performance.
Q3:Is this inverter suitable for commercial solar systems?
A3:Yes. It is widely used in commercial rooftop solar systems, industrial PV projects, factories, office buildings, and distributed solar power stations.
Q4:How many MPPT trackers does the inverter support?
A4:The inverter supports up to 4 MPPT trackers with multiple PV string inputs, improving solar energy harvesting efficiency.
Q5:Can this inverter be installed outdoors?
A5:Yes. The inverter features an IP66 waterproof and dustproof design, suitable for outdoor solar installations.

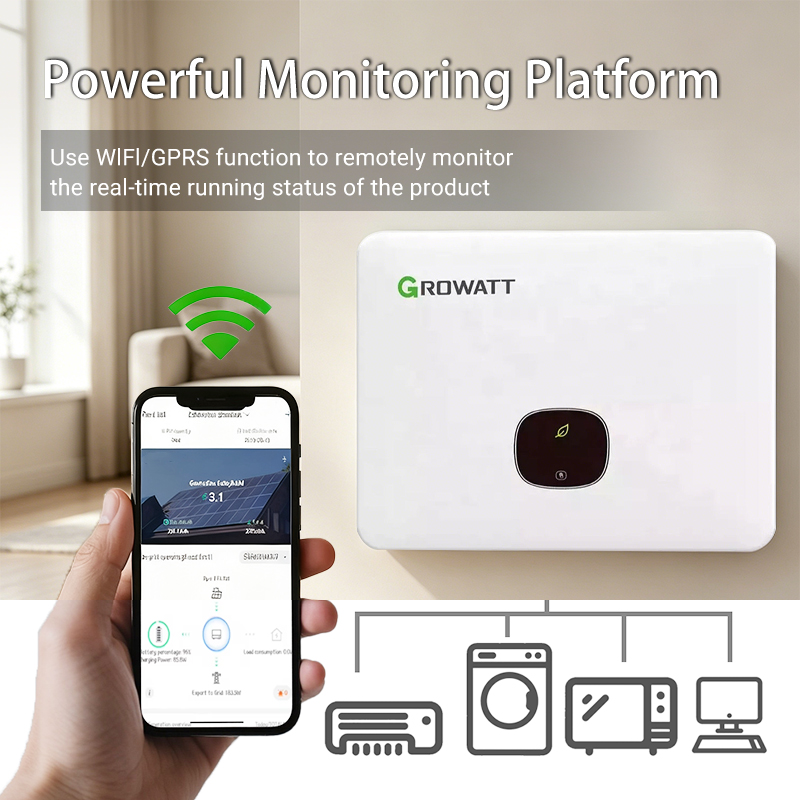

Q6:Does the inverter support remote monitoring?
A6:Yes. It supports WiFi, RS485, USB, LAN, GPRS, and APP monitoring, enabling real time remote system management.
Q7:What safety protections are included?
A7:The inverter includes AFCI protection, anti-islanding protection, surge protection, residual current monitoring, short circuit protection, and grid monitoring.
Q8:What is the maximum DC input voltage?
A8:The maximum DC input voltage is 1100V, making it compatible with modern high voltage solar PV systems.
Q9:What applications is this inverter suitable for?
A9:It is suitable for commercial solar energy systems, industrial PV power plants, agricultural solar projects, warehouses, and large rooftop solar installations.
Q10:What communication interfaces are supported?
A10:The inverter supports RS485, USB, WiFi, RF, GPRS, and LAN communication interfaces for flexible smart energy management.
