Growatt Split Phase 6KW 8KW 10KW 12KW Hybrid Low Voltage Solar Inverter
Growatt SPE 6000-12000US hybrid solar inverter delivers reliable power for off grid and backup energy applications. Available from 6kW to 12kW, it supports high PV input capacity, dual MPPT technology, battery storage integration, and 120/240V AC output. Featuring generator charging, smart load management, and scalable parallel connection up to 9 units, it is an ideal solution for home energy storage, solar systems, and small commercial projects.
Model No :
SPE 6000-12000USRated Power :
6kW / 8kW / 10kW / 12kWWeight :
21.5KGDimension :
550*465*150 mmGrowatt SPE 6000-12000US 6kW-12kW Hybrid Off Grid Solar Inverter for Energy Storage System
Growatt SPE 6000-12000US is a high performance hybrid solar inverter designed for residential and small commercial energy storage applications. With 6kW to 12kW output power options, this inverter integrates solar power conversion, battery storage management, and backup power supply functions to provide a reliable and flexible energy solution.
Supporting lithium and lead acid batteries, dual MPPT technology, high PV input voltage up to 550VDC, and scalable parallel operation up to 9 units, Growatt SPE series is an ideal choice for off grid solar systems, home energy storage systems, and backup power applications.
Key Features
Growatt SPE 6000-12000US offers multiple power options from 6kW to 12kW, providing stable AC power output for residential solar storage systems, off grid applications, and small commercial energy projects.
Equipped with dual MPPT trackers and up to 27A MPPT input current, the inverter improves solar energy utilization and maintains high performance under different installation conditions, including variable roof orientations and changing sunlight environments.
With maximum PV input voltage up to 550VDC, Growatt SPE inverter supports flexible solar panel configurations and allows system designers to optimize photovoltaic system performance.
The inverter supports both lithium batteries and lead acid batteries, offering flexible battery selection for different energy storage requirements. It provides efficient battery charging and discharging management for solar backup and energy independence.

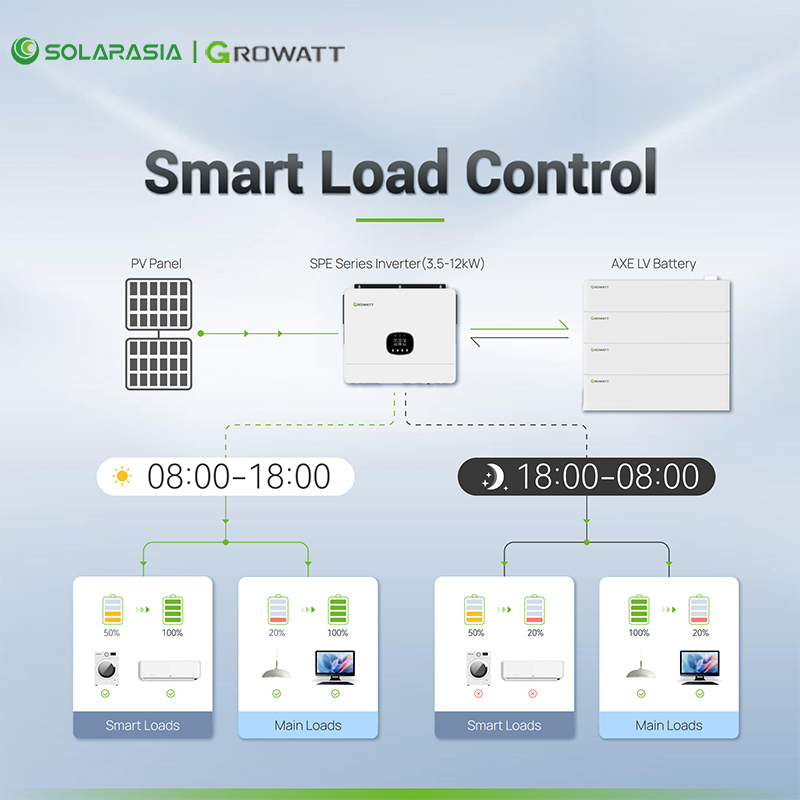

Designed for off grid solar systems, the inverter supports diesel generator charging and smart load connection, ensuring continuous power availability during grid failures or unstable power conditions.
Growatt SPE 6000-12000US supports up to 9 units connected in parallel, allowing users to expand system capacity according to increasing electricity demand.
Designed for the US market, the inverter supports 120/240Vac output and can form 220V or 208V three phase systems through parallel connection, making it suitable for various residential and commercial applications.
Comprehensive Safety Protection
The inverter integrates multiple protection functions, including:
Providing safer and more stable system operation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Hybrid Solar Inverter |
| Model | Growatt SPE 6000-12000US |
| Rated Output Power | 6000W / 8000W / 10000W / 12000W |
| Battery Type | Lithium Battery & Lead Acid Battery |
| Battery Voltage Range | 46-60VDC (Lithium) |
| Max PV Input Voltage | 550VDC |
| MPPT Number | 2 |
| Max MPPT Input Current | Up to 27A |
| AC Output Voltage | 120/240Vac |
| Frequency | 60Hz |
| Parallel Operation | Up to 9 Units |
| Communication | RS485 / CAN / USB / WiFi |
| Protection Degree | IP20 |
| Warranty | 5 Years |

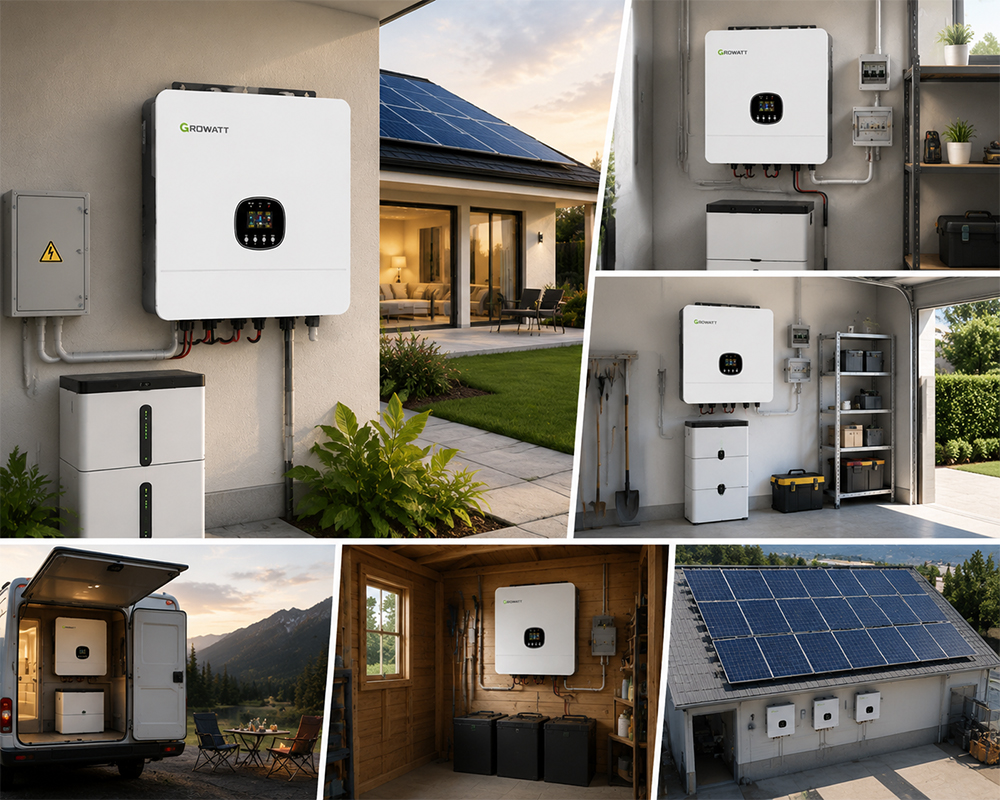

Applications
Growatt SPE 6000-12000US hybrid inverter is suitable for:

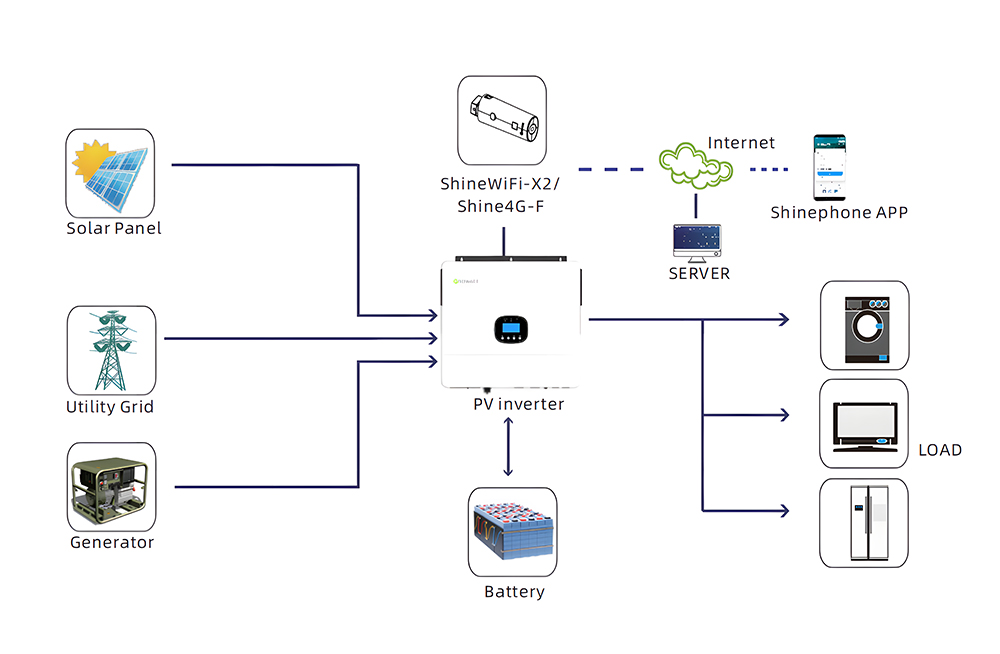

Working principle
FAQ
Q1: What makes Growatt SPE 6000-12000US different from a standard solar inverter?
A: Growatt SPE 6000-12000US is a hybrid energy storage inverter that integrates solar power conversion, battery charging, backup power supply, and smart energy management functions in one system.
Q2: What type of batteries can be used with this inverter?
A: The inverter supports lithium batteries and lead-acid batteries, providing flexible energy storage options for different solar applications.
Q3: Does the inverter support generator charging?
A: Yes, the SPE series supports diesel generator charging, helping maintain stable power availability in remote areas or during long power outages.
Q4: What is the maximum PV input voltage of this inverter?
A: The maximum PV input voltage is up to 550VDC, with dual MPPT trackers and high input current capability to improve solar energy harvesting efficiency.
Q5: Is this inverter suitable for home energy storage systems?
A: Yes, it is an ideal solution for home solar storage, backup power, and off grid energy systems, helping users increase energy independence and reduce reliance on the grid.
Q6: Can it support three-phase systems?
A: Yes, multiple units can be connected to form 220V or 208V three-phase systems for larger residential and commercial energy applications.
Q7: What safety protection functions does the inverter have?
A: The inverter includes multiple protection functions such as over current protection, over voltage protection, anti-islanding protection, surge protection, ground fault monitoring, and insulation resistance monitoring.
