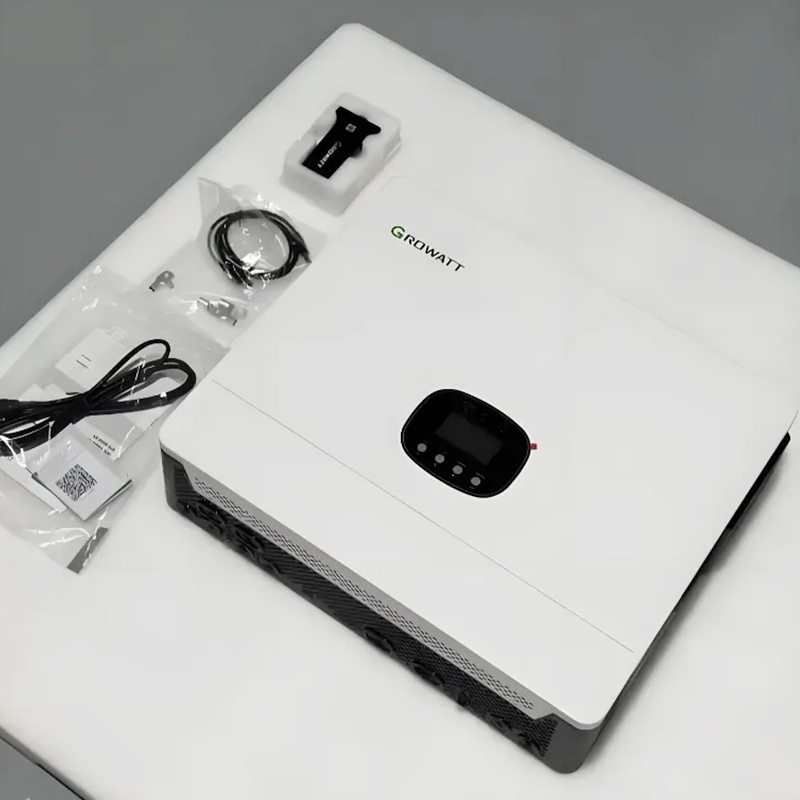

Growatt 8KW 10KW 12KW Single Phase Hybrid Solar Inverter

Growatt 8KW 10KW 12KW Single Phase Hybrid Solar Inverter

Product Highlights

• 8kW–12kW Hybrid Solar Inverter: Available in 8000W, 10000W and 12000W models, ideal for residential and light commercial solar energy storage systems.
• Dual MPPT for Maximum Solar Harvest: Equipped with dual MPPT trackers and supports up to 550V PV input voltage, improving energy generation and system efficiency.
• 48V Battery Compatible: Works with 48V lithium batteries and lead-acid batteries, offering flexible energy storage solutions for different applications.
• Reliable Backup Power: Built-in UPS function with fast switching time ensures continuous power supply during grid outages, keeping essential home loads running.
• Smart Load Management: Dual AC outputs enable intelligent power distribution, optimizing energy consumption and reducing electricity costs through peak shaving.
• Parallel Expansion up to 108kW: Supports parallel operation for easy system capacity expansion, making it suitable for growing residential and commercial energy demands.
• High Efficiency & Stable Performance: Up to 96.5% maximum efficiency delivers higher energy conversion and improved return on investment.
• Remote Monitoring: Integrated WiFi/4G communication allows real-time system monitoring, performance tracking, and remote maintenance from anywhere.
• Comprehensive Safety Protection: Features anti-islanding, surge protection, insulation monitoring, grid monitoring, ground fault protection, and residual current monitoring for safe and reliable operation.
• Ideal for Multiple Applications: Perfect for home solar systems, off-grid backup power, hybrid PV systems, residential energy storage, peak shaving, and light commercial solar projects.

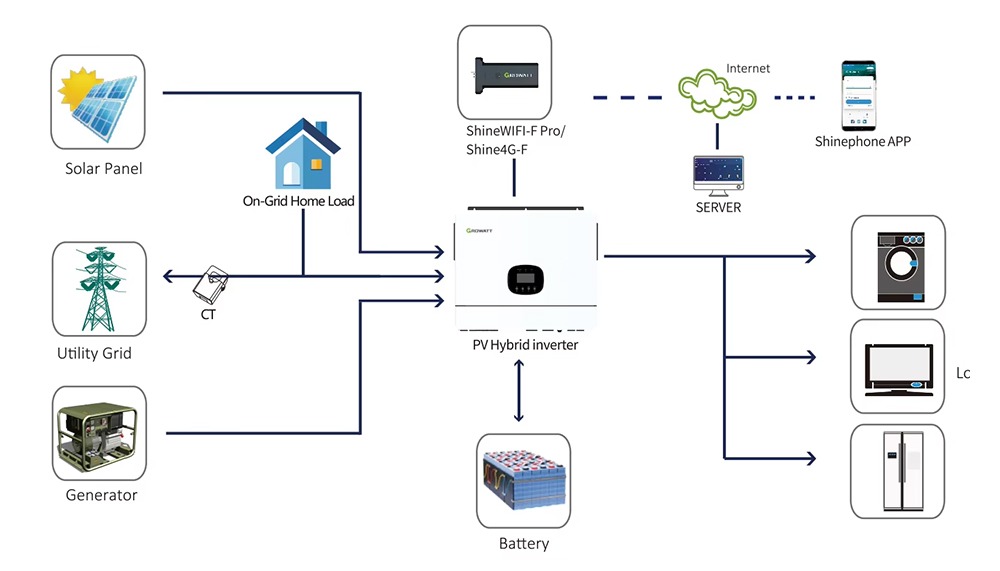

Working principle

Detailed Parameters

FAQ

Q1: What battery types are compatible with the Growatt SPE 8000–12000 ES?

A: The inverter is compatible with both 48V lithium batteries and 48V lead-acid batteries, providing flexible energy storage options for residential and light commercial applications.

Q2: What is the maximum PV input voltage?

A: The Growatt SPE 8000–12000 ES supports a maximum PV input voltage of 550V DC with a 60V–480V MPPT operating range, allowing efficient energy harvesting from solar panels.

Q3: Does this hybrid inverter support backup power during grid outages?

A: Yes. It features a built-in UPS backup function with a transfer time of less than 20ms (single unit), ensuring uninterrupted power for critical household loads during power failures.

Q4: Can multiple inverters be connected in parallel?

A: Yes. The SPE ES series supports parallel operation up to 108kW, making it suitable for larger residential or light commercial solar energy storage systems.

Q5: What are the available power ratings?

A: This series is available in 8kW, 10kW, and 12kW models, allowing users to choose the right capacity based on their energy consumption and system requirements.

Q6: Does the inverter support smart energy management?

A: Yes. It features dual MPPT trackers, dual AC outputs, and smart load management, helping optimize solar energy utilization, battery charging, and household power distribution while reducing electricity costs.

Q7: Can I monitor the inverter remotely?

A: Yes. The inverter supports WiFi and 4G communication, enabling real-time monitoring of system performance, battery status, solar generation, and energy consumption through a smart monitoring platform.

Q8: What applications is the Growatt SPE 8000–12000 ES suitable for?

A: It is ideal for residential solar systems, off grid backup power, hybrid solar energy storage systems, peak shaving, self-consumption optimization, and light commercial photovoltaic installations, delivering reliable and efficient energy management.
