Chinese Hybrid Solar Power Inverters SRNE 16 Kw 18Kw 20 Kw Solar Inverter

Chinese Hybrid Solar Power Inverters SRNE 16 Kw 18Kw 20 Kw Solar Inverter

Meet our robust 16kw, 18kw, and 20kw solar inverters, high efficiency Chinese solar power inverters designed for reliable home and commercial use. This advanced hybrid solar inverter seamlessly converts solar energy from your panels, defining the new standard for solar power inverters and solar inverters everywhere.

  • Model No :

    HESP48160SH3/HESP48180SH3/HESP48200SH3
  • Rated Power :

    16KW/18KW/20KW
  • Weight :

    59.5KG
  • Dimension :

    800x470x313mm
New Products

Chinese Hybrid Solar Power Inverters SRNE 16 Kw 18Kw 20 Kw Solar Inverter

Chinese Hybrid Solar Power Inverters Srne 16 Kw 18Kw 20 Kw Solar Inverter

Detailed Parameters

Product Parameter
MODEL
HESP48160SH3
HESP48180SH3
HESP48200SH3
AC OUTPUT(LOAD)
Rated Output Power
16000W
18000W
20000W
Max.Output Power
17600W
19800W
22000W
Max.Peak Power
32000VA
36000VA
40000VA
Rated Output Voltage
230/400VAC three-Phase
Motor Load Capacity
10HP
11HP
12HP
Rated Frequency
50/60Hz±0.3Hz
Switching Time
10ms(typical)
Battery
Battery Type
Li-ion / Lead-Acid / User Defined
No.of Battery Input Ports
2
Rated Battery Voltage
48V
Battery Voltage Range
40~60Vdc
Max.Grid/Generator Charging Current
300Adc
330Adc
350Adc
Max.Hybrid Charging Current
300Adc
330Adc
350Adc
Max.Discharge Current
300Adc
330Adc
350Adc
PV Input

No.of MPPT Trackers
3
No.of Strings MPP Tracker
1+1+1
Max.PV Input Power
24000W
27000W
30000W
Max.PV Input Current
26A+26A+26A
Max.Short-Circuit Current
45A+45A+45A
Max.Open Circuit Voltage
1000V
Start-up Voltage
150V
MPPT Operating Voltage Range
160~800V
Rated PV Input Voltage
600V
Grid/Generator Input
Input Voltage Range
Phase voltage 170~280V, Line voltage 305~485Vac
Input Frequency Range
50/60Hz
Bypass Overload Current
70Aac
Efficiency
MPPT Tracking Efficiency
>99%
Max.Efficiency
97.8%
European Effciency
97.2%
97.5%
97.5%
General Data

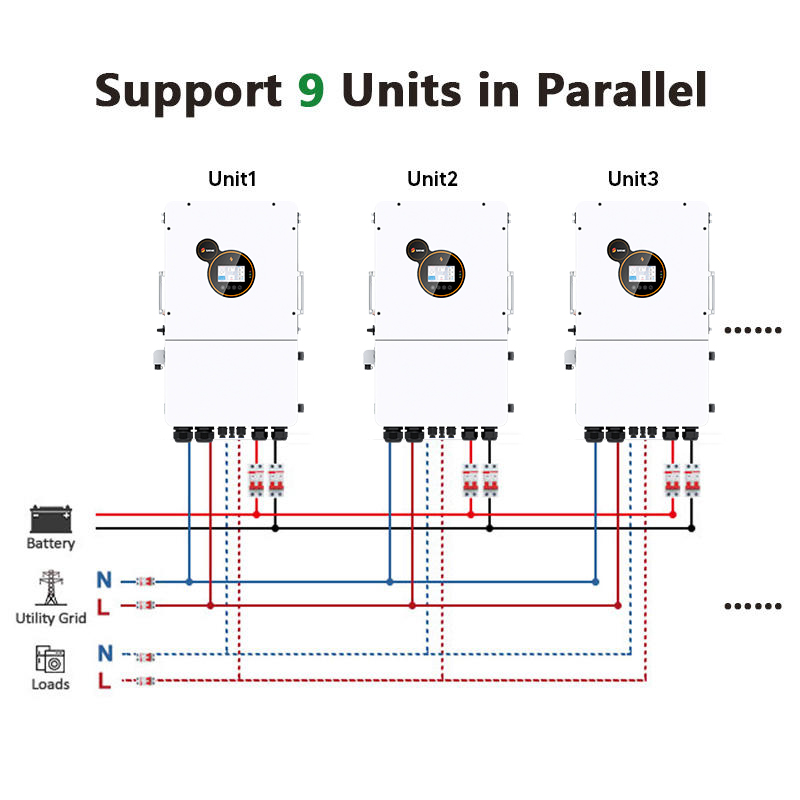

Parallel Capacity
1~9 Units
Cabinet Size
800x470x313mm
Humidity
0~100%
Weight(kg)
59.5kg
Type of Cooling
Heat sink
+intelligent fan cooling
Protection Degree
IP65
Warranty
5 years
Operating Temperature
-25~60℃, >45℃ Derating
Communication
RS485/CAN/USB/Dry Contact
External Module(Optional)
WIFI / 4G Stick
Topology
Non-Isolated

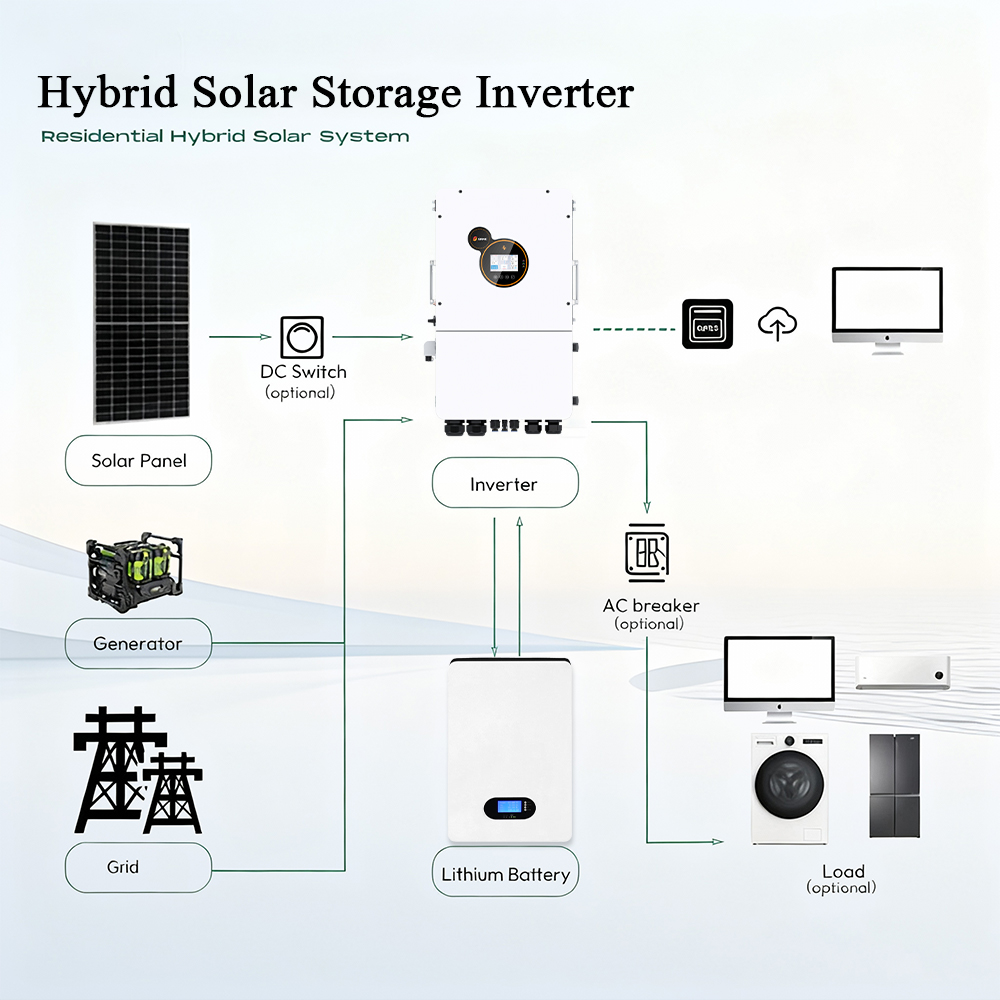

How does it work?

Chinese Hybrid Solar Power Inverters Srne 16 Kw 18Kw 20 Kw Solar Inverter

Chinese Hybrid Solar Power Inverters Srne 16 Kw 18Kw 20 Kw Solar Inverter

FAQ

Q1: What is the difference between a 16kw solar inverter, an 18kw solar inverter, and a 20kw solar inverter?
A: The primary difference is power capacity. A 16kw solar inverter is ideal for medium to large homes, while an 18kw or 20kw solar inverter is suited for larger residences or small commercial properties with higher energy demands. Choosing the right size ensures your solar power inverter efficiently handles the total output of your solar panels.

Q2: Why should I choose a hybrid solar inverter over a standard one?
A: A hybrid solar inverter is a smarter inverter for solar energy systems. Unlike standard solar inverters, it can intelligently manage energy from your solar panels, the grid, and a battery bank, providing backup power and greater energy independence for your home.

Q3: Are these Chinese solar power inverters reliable?
A: Yes, absolutely. Modern Chinese solar power inverters are manufactured with advanced technology and adhere to strict international quality and safety standards. They offer a compelling combination of high performance, robust features, and reliability, making them a leading choice for solar power inverter for home and business use globally.

Q4: What is the main function of a solar panel inverter?
A: The core function of any solar panel inverter (or solar power inverter) is to convert the direct current (DC) electricity generated by your solar panels into usable alternating current (AC) electricity for your home. It is the critical brain of the system, ensuring efficient energy conversion and management.

Q5: How do I know what size inverter for solar panels I need?
A: The correct size inverter for solar panels is determined by the total wattage of your solar array and your home's energy consumption. As a general rule, the inverter's capacity (e.g., 16kw, 18kw, 20kw) should be similar to your system's peak DC output. Our experts can help you select the perfect solar inverter for your specific setup.

Q6: Can I use one of your solar inverters for a home with high energy usage?
A: Certainly. Our high-capacity models, like the 18kw solar inverter and 20kw solar inverter, are specifically designed as powerful solar power inverters for home with significant energy needs or for small businesses, ensuring you have ample power without compromise.
