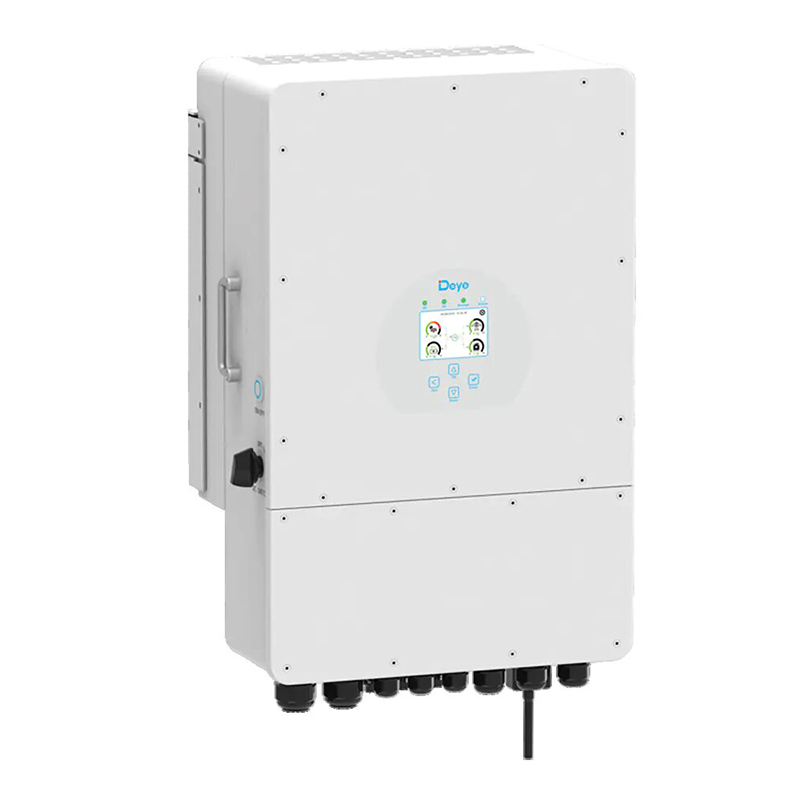

Deye High Voltage Three Phase 5KW 6KW 8KW 10KW 12KW 15KW 20KW 25KW 2MPPT Hybrid Inverter with Controller
Deye High Voltage Three Phase 5KW 6KW 8KW 10KW 12KW 15KW 20KW 25KW 2MPPT Hybrid Inverter with Controller
The Deye Sun Series 5KW 6KW 8KW 10KW 12KW 15KW 20KW 25KW high voltage three phase hybrid inverters feature dual MPPT design, high efficiency, and flexible energy storage capabilities — ideal for residential and commercial solar systems.
Model No :
SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2Weight :
30.5 kgDimension :
408×638×237 (Excluding Connectors and Brackets)
Product Parameters
|
Model
|
SUN-5K-SG01
HP3-EU-AM2
|
SUN-6K-SG01
HP3-EU-AM2
|
SUN-8K-SG01
HP3-EU-AM2
|
SUN-10K-SG01
HP3-EU-AM2
|
SUN-12K-SG01
HP3-EU-AM2
|
SUN-15K-SG01
HP3-EU-AM2
|
SUN-20K-SG01
HP3-EU-AM2
|
SUN-25K-SG01
HP3-EU-AM2
|
|
Battery Input Data
|
||||||||
|
Battery Type
|
Lithium-ion
|
|||||||
|
Battery Voltage Range (V)
|
160-700
|
|||||||
|
Max. Charging Current (A)
|
30
|
30
|
37
|
50 | ||||
|
Max. Discharging Current (A)
|
30
|
30
|
37 | 50 | ||||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|||||||
|
Number of Battery Input
|
1
|
|||||||
|
PV String Input Data
|
||||||||
|
Max. PV Input Power (W)
|
6500
|
7800
|
10400
|
13000
|
15600
|
19500
|
26000
|
32500
|
|
Max. PV Input Voltage (V)
|
1000
|
|||||||
|
Start-up Voltage (V)
|
180
|
|||||||
|
MPPT Voltage Range (V)
|
150-850
|
|||||||
|
Rated PV Input Voltage (V)
|
600
|
700
|
||||||
|
Max. Operating PV Input Current (A)
|
20+20
|
26+20
|
26+26
|
|||||
|
Max. Input Short-Circuit Current (A)
|
30+30
|
39+30
|
39+39
|
|||||
|
No. of MPP Trackers/
No. of Strings per MPP Tracker
|
2/1+1
|
2/2+1
|
2/2+2
|
|||||
|
AC Input/Output Data
|
||||||||
|
Rated AC Input/Output Active Power (W)
|
5000
|
6000
|
8000
|
10000
|
12000
|
15000 | 20000 | 25000 |
|
Max. AC Input/Output Apparent Power (VA)
|
5500
|
6600
|
8800 | 11000 | 13200 | 16500 | 22000 | 27500 |
|
Rated AC Input/Output Current (A)
|
7.6/7.3
|
9.1/8.7
|
12.2/11.6
|
15.2/14.5
|
18.2/17.4
|
22.8/21.8
|
30.4/29
|
37.9/36.3
|
|
Max. AC Input/Output Current (A)
|
8.4/8
|
10/9.6
|
13.4/12.8
|
16.7/16
|
20/19.2
|
25/24
|
33.4/31.9
|
41.7/39.9
|
|
Max. Continuous AC Passthrough (grid to load) (A)
|
40
|
80 | ||||||
|
Peak Power (off-grid) (W)
|
1.5 times of rated power, 10s
|
|||||||
|
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging
|
|||||||
|
Rated Input/Output Voltage/Range (V)
|
220/380V, 230/400V 0.85Un-1.1Un
|
|||||||
|
Rated Input/Output Grid Frequency/Range(Hz)
|
50/45-55, 60/55-65
|
|||||||
|
Grid Connection Form
|
3L+N+PE
|
|||||||
|
Total Current Harmonic Distortion THDi
|
<3% (of nominal power)
|
|||||||
|
DC Injection Current
|
<0.5% In
|
|||||||
|
Efficiency
|
||||||||
|
Max. Efficiency
|
97.6%
|
|||||||
|
Euro Efficiency
|
97.0%
|
|||||||
|
MPPT Efficiency
|
>99%
|
|||||||
|
Interface
|
||||||||
|
Communication Interface
|
RS485/RS232/CAN
|
|||||||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
|||||||
|
General Data
|
||||||||
|
Operating Temperature Range (℃)
|
-40 to +60℃, >45℃ Derating
|
|||||||
|
Permissible Ambient Humidity
|
0-100%
|
|||||||
|
Permissible Altitude
|
2000m
|
|||||||
|
Noise (dB)
|
≤55
|
|||||||
|
Ingress Protection(IP) Rating
|
IP 65
|
|||||||
|
Inverter Topology
|
Non-Isolated
|
|||||||
|
Over Voltage Category
|
OVC II(DC), OVC III(AC)
|
|||||||
|
Cabinet Size (WxHxD mm)
|
408×638×237 (Excluding Connectors and Brackets)
|
|||||||
|
Weight (kg)
|
30.5
|
|||||||
|
Type of Cooling
|
Natural Cooling
|
Intelligent Air Cooling
|
||||||
