6.5KW US Hybrid Solar Inverter Single Phase Pure Sine Wave Dual Mppt Home Solar Power Inverters for Solar Panel System

Product Features

6500W Rated Output: Provides 6500W split phase output and 6000W single phase output for residential and small commercial power applications.

High Surge Capability: Delivers up to 9000W peak power to handle demanding loads and motor startup requirements.

120V/240V Split Phase: Supports 120V/240V output for compatibility with typical US residential and small commercial electrical systems.

Dual MPPT: Features 2 independent MPPT channels with up to 8000W total PV input, helping optimize solar energy harvesting from different PV strings.

Flexible Battery Support: Compatible with lithium and lead acid batteries with a 51.2V nominal battery voltage and 40–58.6Vdc operating range.

Scalable System Design: Supports up to 6 inverters in parallel, providing flexible capacity expansion for larger energy storage systems.

Fast Backup Power: Typical 10ms bypass and inverter switching helps keep critical loads powered during grid interruptions.

High Current Charging: Supports up to 120A battery charging current for efficient energy storage replenishment.

Generator Compatible: Supports diesel generator input with dry contact start and stop control for reliable backup power.

Flexible Energy Supply: Supports battery free operation, allowing PV and grid power to supply loads directly under suitable operating conditions.

Multiple Communication Interfaces: Supports USB, RS485, WiFi, GPRS and dry contact communication for monitoring and system management.

Basic Specifications

Applications

Residential Solar Energy Storage

Suitable for home solar systems combining photovoltaic generation, battery storage and grid power.

Home Backup Power

Provides backup power for critical household loads during grid outages.

Off Grid Solar Systems

Can be integrated with PV modules and batteries for off grid power applications.

Small Commercial Solar Systems

The 6500W output and parallel capability make it suitable for small commercial and distributed energy applications.

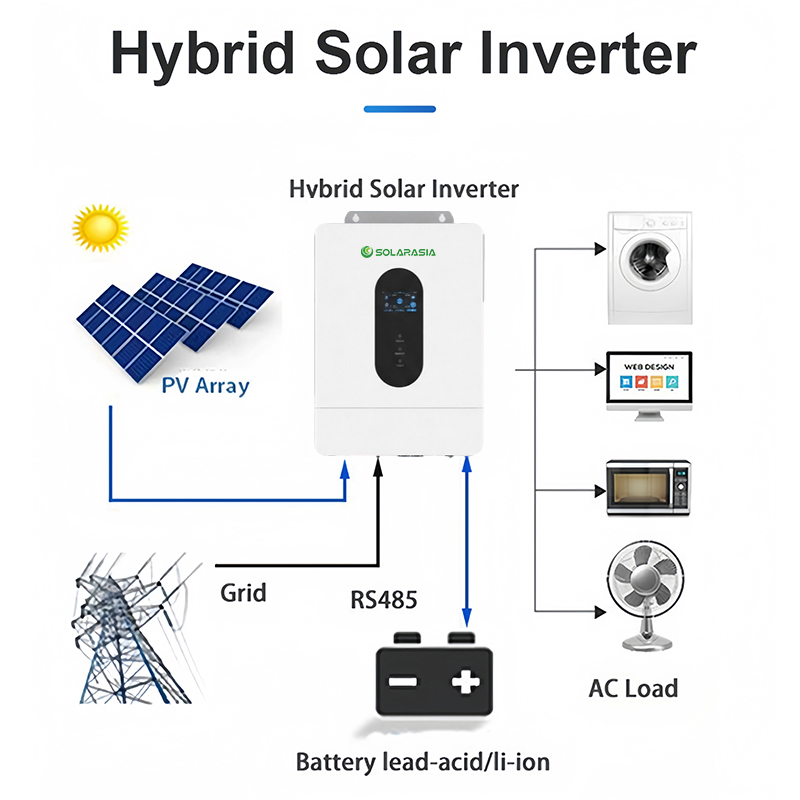

Solar + Battery Storage

Supports PV generation, battery charging and load management in integrated energy storage systems.

Solar + Generator Systems

Can work with diesel generators to provide an additional backup power source.

FAQ

What is a 6500W hybrid solar inverter?

A 6500W hybrid solar inverter combines solar PV conversion, battery charging, battery backup and grid power management in one system. This model provides up to 6500W rated split phase output.

Is this inverter suitable for the US market?

Yes. It supports 120V/240V split phase output, making it designed for US residential and small commercial applications.

Can the 6500W hybrid inverter work with lithium batteries?

Yes. It supports lithium batteries as well as lead acid batteries and uses a nominal 51.2V battery system.

How much solar power can the inverter handle?

The detailed specification lists a maximum PV input power of 8000W, with 4000W + 4000W across two MPPT channels.

How many solar panels can be connected?

The actual number of panels depends on the panel power, string voltage and system design. The PV array must remain within the inverter's 500V maximum open circuit voltage and specified current and power limits.

Does it support split phase operation?

Yes. The inverter supports 120V/240V split phase operation, suitable for US electrical systems.

Can multiple units be connected together?

Yes. Up to 6 units can be connected in parallel, allowing the system capacity to be expanded.

Does it provide UPS backup?

Yes. The inverter has a typical 10ms bypass/inverter switching time, providing fast transfer for backup applications.

Can it operate without batteries?

Yes. It supports battery free operation, allowing PV and grid power to directly supply loads under suitable operating conditions.

Does the inverter support a diesel generator?

Yes. It supports diesel generator input and provides dry contact start/stop control.
