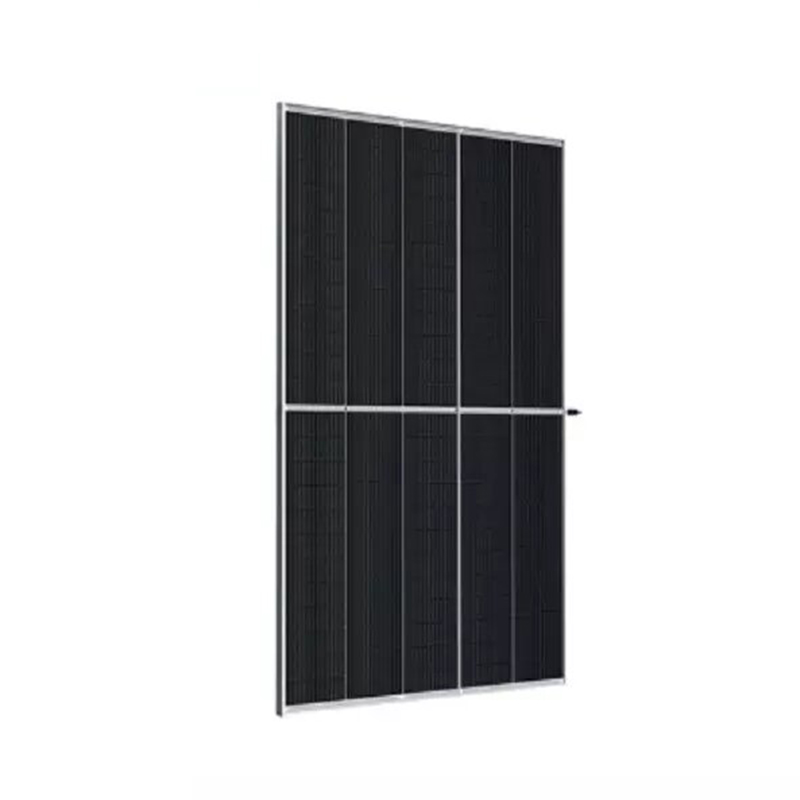

Trina Solar Panel 425W-445W N-type Mono Perc

TSM-445 Trina Solar Panel has a smaller size and bigger power. It generates up to 445W, 22.3 % module efficiency with hiqh density interconnect technology. With a double-glazed design and high reliability, the TSM-445 is a flexible installation solution for system deployment.

  • Model No :

    TSM-445

  • Weight :

    21.1kg

  • Dimension :

    1762x1134x30 mm

  • Cell Orientation :

    144 cells

  • Maximum Power (Pmax) :

    445W

  • Maximum Power Voltage (Vmp) :

    44.3V
Inquiry now
categories
New Products

Trina Solar Panel 425W-445W N-type Mono Perc

Small in size, bigger on power

  • Generates up to 445 W, 22.3 % module efficiency with hiqh density interconnect technology.
  • Multi-busbar technology for better light trapping,lower series resistance, improved current collection andenhanced reliability.
  • Reduces installation cost with higher power bin and efficiency.

Dual-glass Design, High Reliability

  • Excellent fire rating and resistance to harsh environmental conditions.
  • 5,400 Pa snow load and 4,000 Pa wind load (test loads).

Maximize Energy Harvest

  • Up to 25 years product warranty and 30 years power warranty.
  • 1 % first-year degradation and 0.4 % annual degradation enabledby N-type technology.

Universal solution for residential and C&l rooftops

  • Designed for compatibility with existing mainstream inverters.
  • Optimizers and mounting systems.
  • Perfect size and low weight for easy handling.
  • Optimized transportation cost.
  • Flexible installation solutions for system deployment.

Trina N-type Solar Panels 445W

Mechanical Characteristics
Cell Type N-type Mono-crystalline
No. of cells 144
Dimensions 1762x1134x30 mm
Weight 21.1kg
Junction Box IP68 Rated
SPECIFICATIONS
Module Type

TSM-425

NEG9R.28

TSM-430

NEG9R.28

TSM-435

NEG9R.28

TSM-440

NEG9R.28

TSM-445

NEG9R.28
Maximum Power 425Wp 430Wp 435Wp 440Wp 445Wp
Maximum Power Voltage
 42.9V 43.2V 43.6V 44.0V 44.3V
Maximum Power Current
 9.92A 9.96A 9.99A 10.01A 10.05A
Open-circuit Voltage 50.9V 51.4V 51.8V 52.2V 52.6V
Short-circuit Current 10.56A 10.59A  10.64A 10.67A 10.71A
Maximum system voltage
 1500 V DC(IEC)
Maximum series fuse rating 20A
Power tolerance 0/+5
Front Glass 1.6 mm, High Transmission, AR Coated Heat Strengthened Glass
Back Glass 1.6 mm, HeatStrengthened Glass
