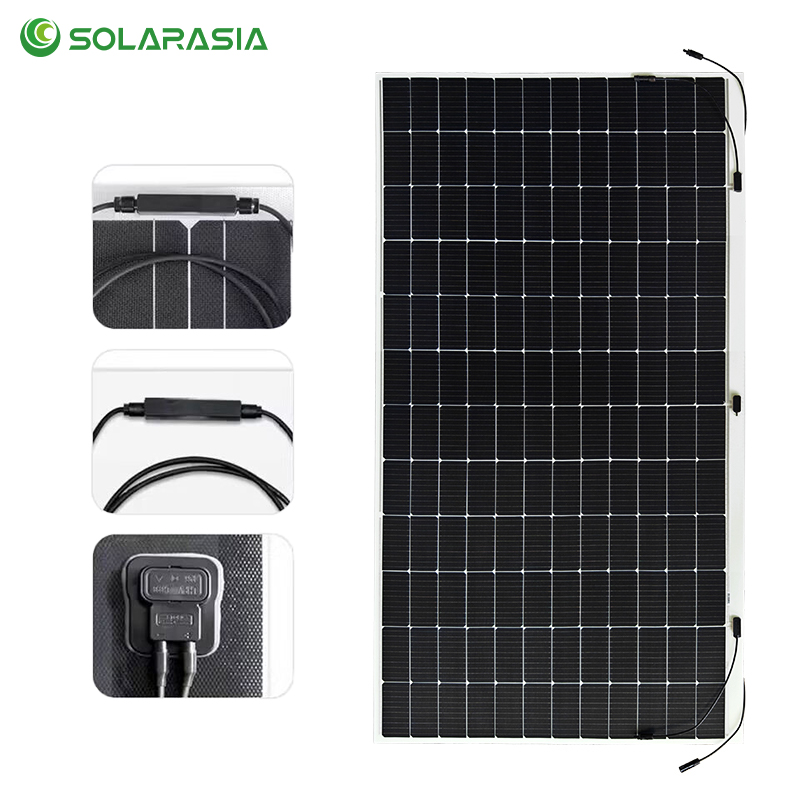

Sunman Flexible Solar Panel 520W Technology High Effciency
Ultra-light: Glass free module weighs 8.6 kg,70% lighter than conventional glass modules.
Fast-Installation: Through "Quick-Bonding” installation, eArc requires no penetration, reduces time on roof by 40% and eliminates the use of mounting hardware.
Model No :
SMF520J-12X12UWWeight :
8.6kgDimension :
2246x1197x2 mmMaximum Power (Pmax) :
520Maximum Power Voltage (Vmp) :
42.3Cell Orientation :
144 (12*12)Sunman Flexible Solar Panel 520W Technology High Effciency
Detailed Parameters
| MECHANICAL CHARACTERISTICS | |
| Solar Cell | Monocrystalline silicon(182mm half cell) |
| No. of Cells | 144 (12*12) |
| Module Dimensions | 2246x1197x2 mm |
| Weight | 8.6kg |
| Backsheet | White |
| Frame | Frameless |
| J-box | IP 68 rated |
| Output Cables | Photovoltaic technology cable 4.0 mm 2 , (+)450 / (-)450 mm |
| Connector | MC4 compatible |
| ELECTRICAL CHARACTERISTICS | |
| STC | SMF520J-12X12UW |
| Maximum Power | 520 |
| Maximum Power Voltage | 42.3 |
| Maximum Power Current | 12.31 |
| Open-circuit Voltage | 49.5 |
| Short-circuit Current | 13.56 |
| Module Efficiency | 19.3 |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 1500 V DC (IEC) |
| Maximum Series Fuse Rating | 25 A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
Why Choose Us
Details Images
Applications
Packaging&Shipping
Company Profile
Anhui solarasia Energy Technology co., Ltd., established in 2016, stands as apreeminent energy technology enterprise.We expertise in Solar Panel ,solar inverter,Lithium battery,Solar system etc.Qur products have traversed 100 countries,earning great reputation from loval customers.Besides, Qur products have been distributed in over 100 countries.earning a remarkable reputation from our loyal customers, Additionally, our collaborative manufacturers possess state-of-the-art production equipment and technology, ensuring the quantity and quality of our products while adhering to lso TuV and CE standards..All client can enjoy timely response,product guidance and perfect after-sales service.We desire to build friendly relationship with everyone.Let's start the journey of sustainable energy innovation and development.
FAQ
A: The Sunman SMF520J-12X12UW is a 520W ultra light flexible solar panel featuring eArc glassless technology. It uses 144 half cell monocrystalline solar cells and is designed for applications where traditional heavy glass solar panels are difficult to install.
A: Compared with conventional glass solar modules, the Sunman eArc solar panel is much lighter, weighing only 7.2kg. Its flexible and lightweight design helps reduce roof load requirements and makes installation easier on various surfaces.
A: The Sunman SMF520J-12X12UW provides a maximum power output of 520W with a positive power tolerance of 0/+5W, delivering high energy generation for residential, commercial, and special solar applications.
A: The SMF520J-12X12UW uses monocrystalline silicon 182mm half cells with a 144-cell configuration (12×12), providing high efficiency and reliable power output.

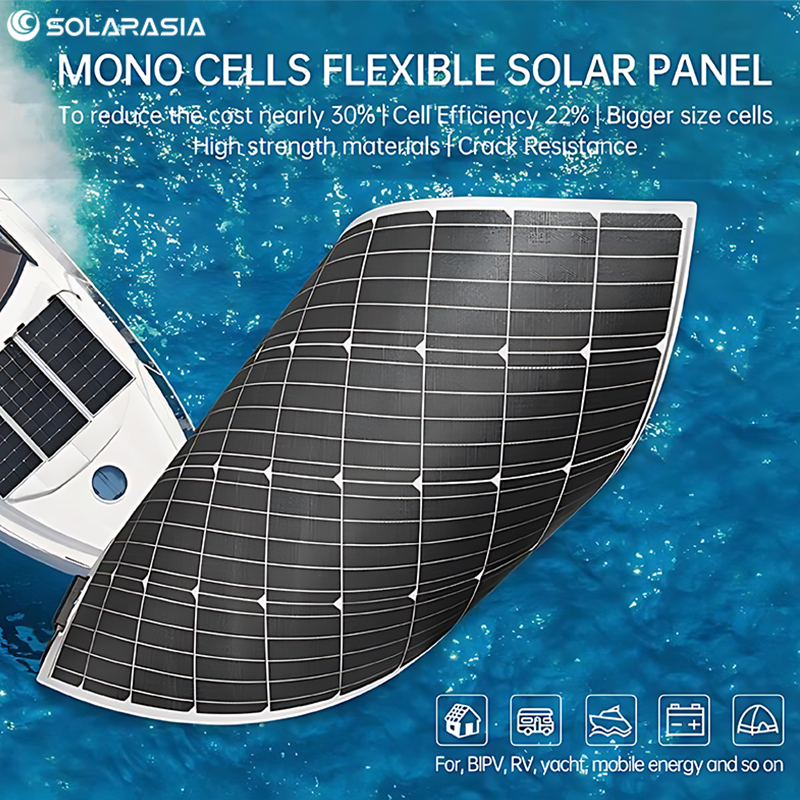

A: Yes. The ultra light design makes it suitable for lightweight roofs, commercial buildings, curved surfaces, RVs, marine applications, and other projects where reducing structural load is important.
A: No. The eArc flexible solar panel supports quick bonding installation, which can reduce installation time and avoid traditional roof penetration methods, helping protect the waterproof performance of the roof.
