Lightweight Flexible Solar Panel 550W 560W 570W 580W n Type Topcon Monocrystalline Solar Panels

550W 560W 570W 580W Flexible Solar Panel Series

Key Features

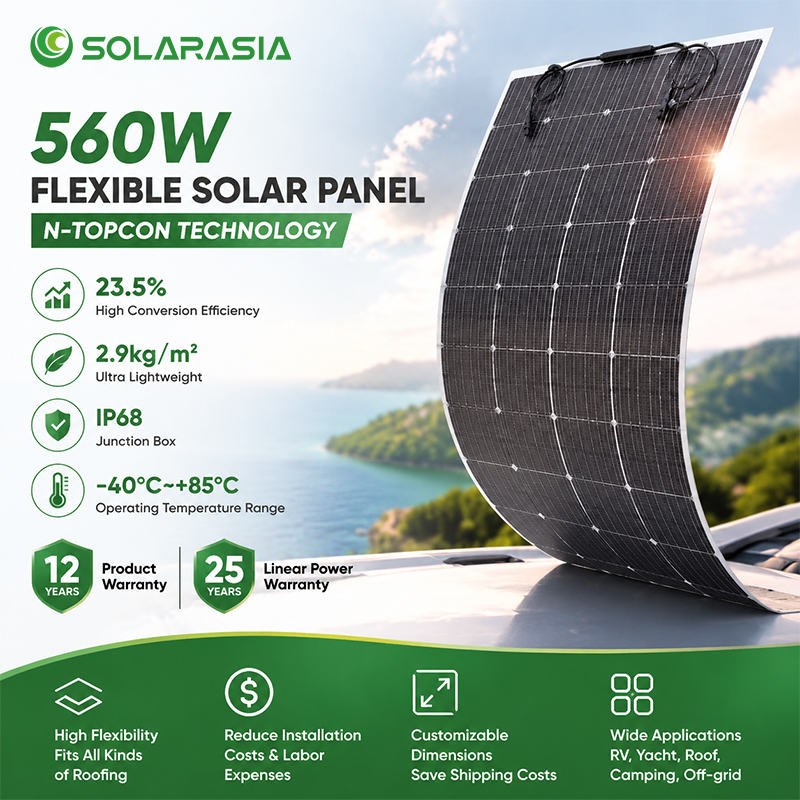

Up to 580W Power Output:The series provides four power options from 550W to 580W, allowing customers to select the appropriate power level according to different system and project requirements. The 580W version reaches up to 580W rated power.

Up to 23.5% Conversion Efficiency:The flexible solar panel series achieves a maximum conversion efficiency of 23.5%, providing high power generation performance within a lightweight module design.

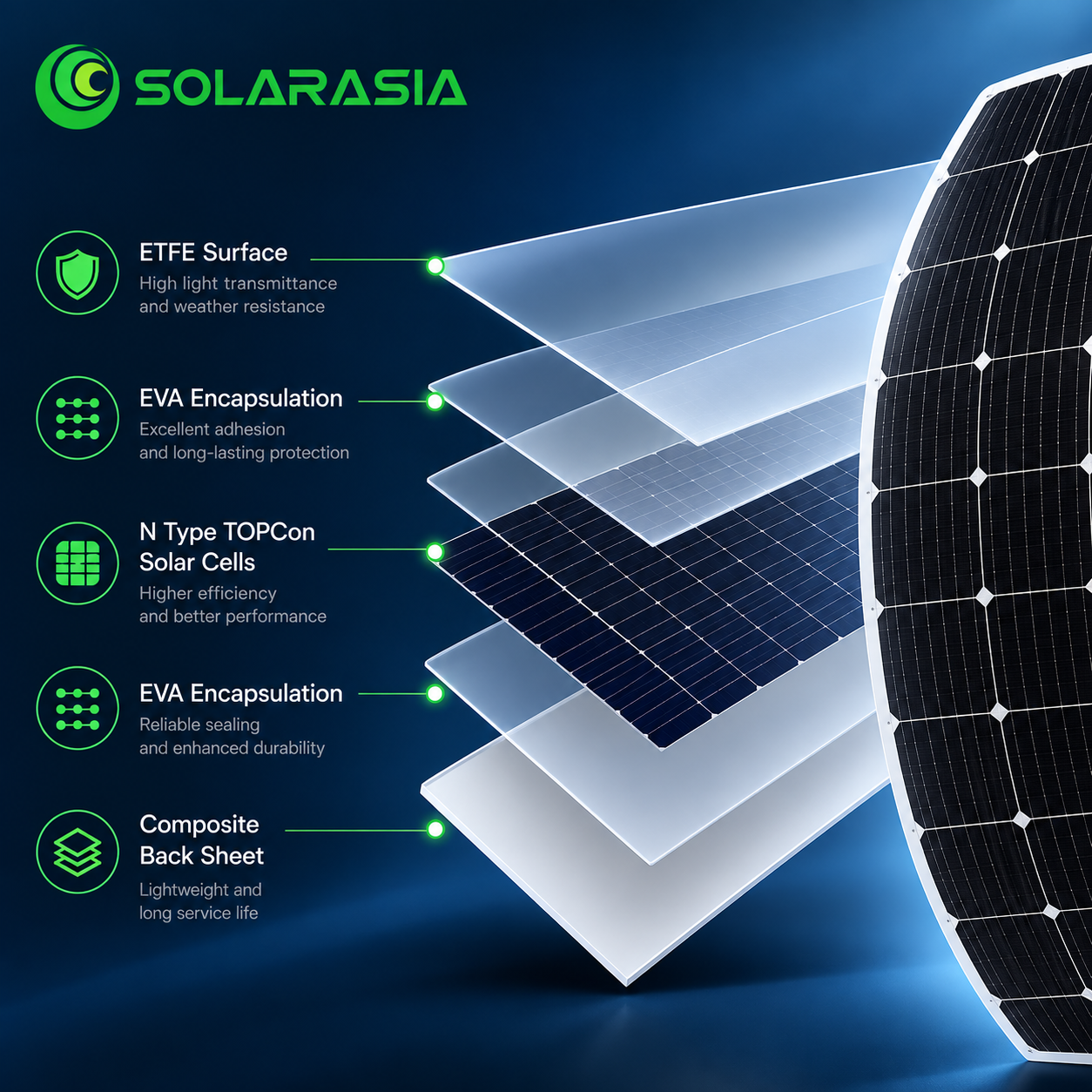

N-TOPCon Solar Cell Technology:The modules use N-TOPCon solar cells measuring 182*91mm. Each module contains 144 cells arranged in a 12*12 configuration.

Ultra Lightweight Design:With an area weight of approximately 2.7kg/m² and a module weight of 7.44kg, the lightweight structure helps reduce the additional structural requirements associated with conventional framed solar panels.

Slim 2.7mm Structure:The module dimensions are 2260*1209*2.7mm. The frameless construction provides a slim and lightweight PV solution for projects where installation space and structural weight are important considerations.

Flexible Installation:The product is designed around a lightweight, flexible module structure. Its flexible characteristics allow it to adapt to various application requirements and can help reduce installation complexity in suitable projects.

Reduced Mounting and Labor Requirements:The product is designed for applications where conventional support structures may not be necessary. Its lightweight construction and flexible installation concept can help reduce installation labor and overall system costs.

High Load Performance:The modules are rated for 5400Pa front static load and 2400Pa rear static load, providing durability for outdoor photovoltaic applications.

IP68 Junction Box:The junction box features an IP68 protection rating, supporting reliable outdoor operation. The module also uses MC4-compatible connectors and 4mm² output cables.

Technical Specifications

Durable and Reliable PV Design

The flexible solar panel is designed for outdoor photovoltaic applications with a 5400Pa front static load and 2400Pa rear static load. The product specifications also highlight resistance to hail and stepping, reduced risk of microcracking, and lightweight flexible construction.

The module is classified as Class II and uses an IP68-rated junction box for additional protection in outdoor operating environments.

Flexible Solar Panel Applications

The lightweight and flexible design makes this series suitable for a variety of applications where conventional framed modules may not be ideal.

Lightweight Rooftops

Suitable for applications where reducing additional roof loading is an important consideration.

Customized Solar Installations

The flexible structure can support customized solar projects and different installation requirements.

Mobile Energy

The product specifications highlight applications for mobile energy, providing a flexible option for mobile photovoltaic solutions.

Special Installation Surfaces

The lightweight and flexible construction can be considered for surfaces where conventional rigid PV modules are difficult to accommodate.

Commercial and Industrial Projects

The high power 550W-580W range provides a suitable option for lightweight commercial and industrial PV applications where installation flexibility is important.

Installation and Cost Advantages

The lightweight flexible structure is designed to simplify photovoltaic installation in suitable applications.

Compared with conventional framed modules, the product concept focuses on:

• Lightweight construction
• Flexible installation
• Reduced need for conventional support structures
• Lower installation labor requirements
• Reduced transportation requirements
• Customizable dimensions
• Flexible application scenarios

These features can help reduce the overall installation and transportation requirements of suitable PV projects.

Frequently Asked Questions

1. What power options are available for this flexible solar panel series?

The series is available in four power options: 550W, 560W, 570W, and 580W, allowing customers to select the appropriate power output for different solar projects.

2. What is the maximum efficiency of the flexible solar panel?

The series offers a maximum conversion efficiency of 23.5%.

3. How lightweight is the flexible solar panel?

The module has an approximate area weight of 2.7kg/m², while the module weight is approximately 7.44kg.

4. Does the solar panel have a frame?

No. The product uses a frameless design, which contributes to its lightweight and slim construction.

5. What applications are suitable for this flexible solar panel?

The product is designed for various application scenarios, including lightweight PV installations, customized solar projects, mobile energy applications, and projects where reduced installation structure and labor requirements are important.

6. Can the solar panel be customized?

The datasheet indicates that the product supports customized dimensions and customizable cable length, making it suitable for specific project requirements.
