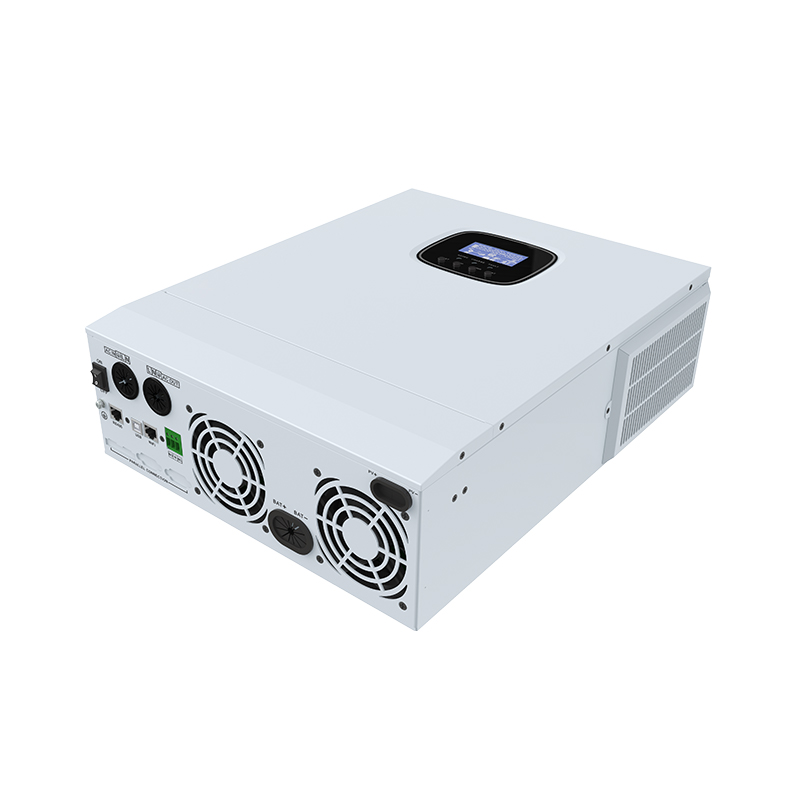

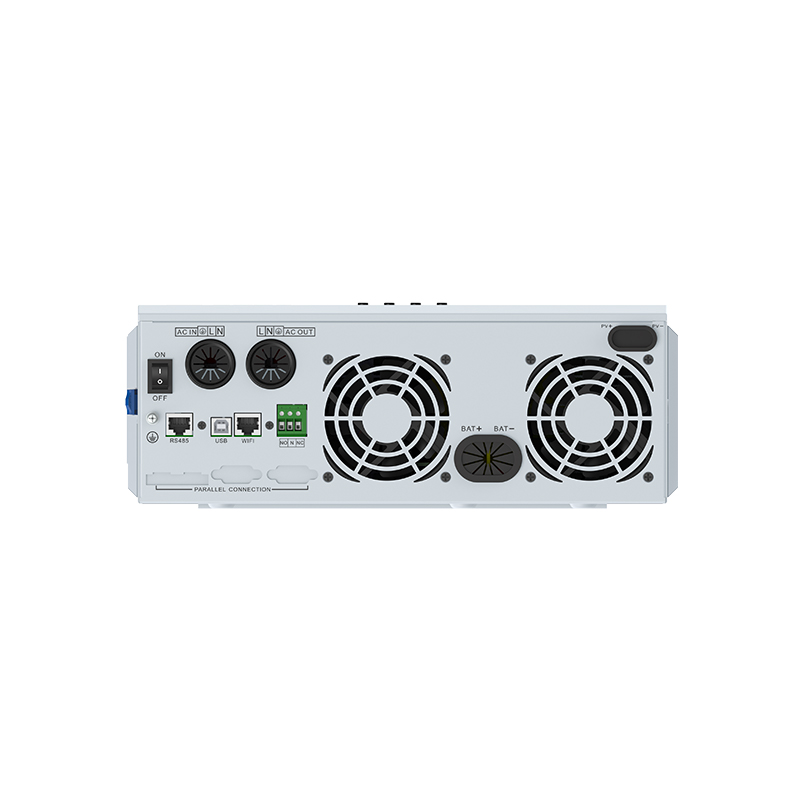

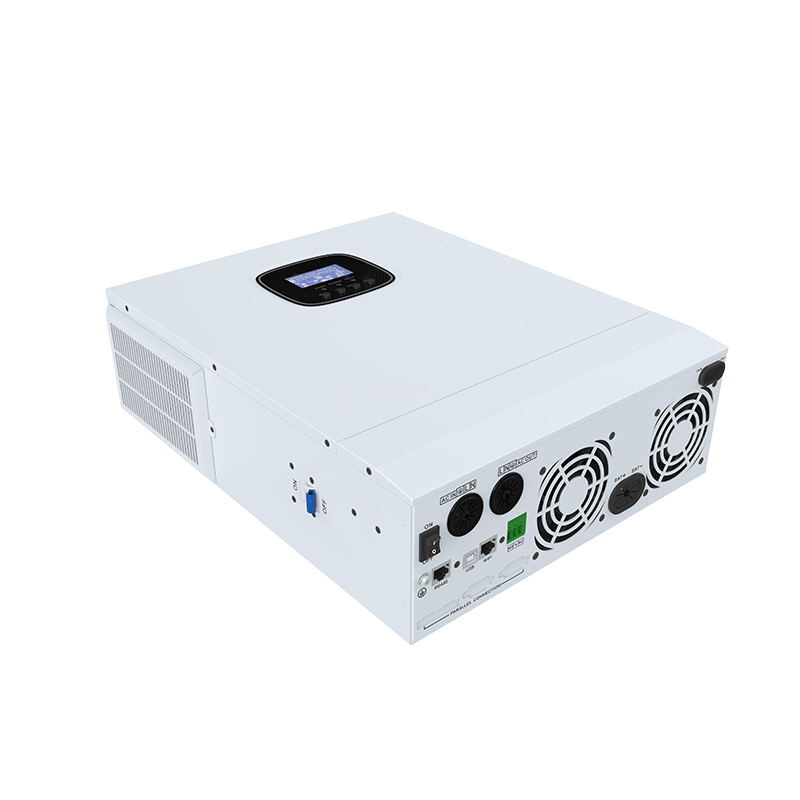

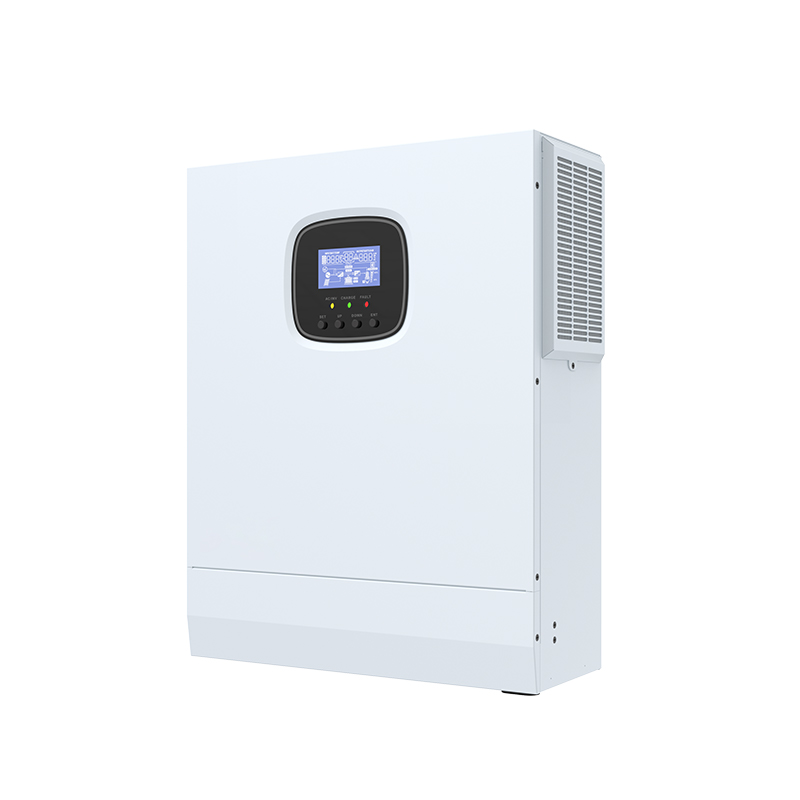

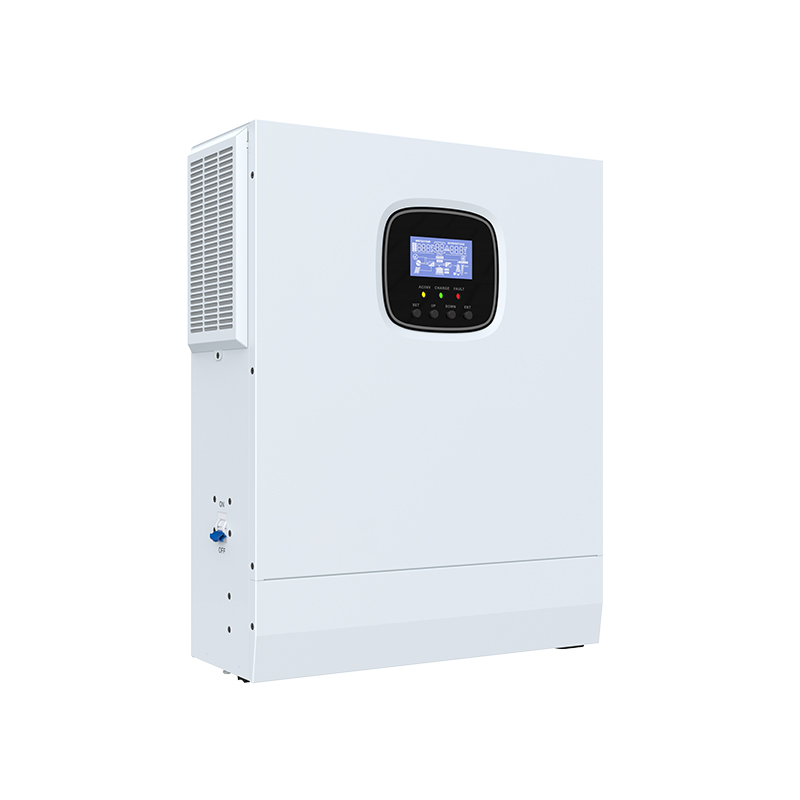

HSI 5000U 5KW 48V Split Phase Off Grid Solar Inverter with a Good Price
The SRNE HSI 5000U is a 5KW 48V off grid split phase hybrid solar inverter specially designed for the North American market. It supports a wide MPPT voltage range, high efficiency battery charging, and seamless integration with 48V lithium or lead acid batteries making it ideal for residential solar energy storage and home backup power systems.
Model No :
SRNE HSI 5000UWeight :
11.6kg (25.57lb)Dimension :
426*322*126mm (1.40*1.06*0.41ft)
Product Parameters
|
MODEL
|
HSI 5000U
|
CAN BE
SET
|
|
INVERTER OUTPUT
|
||
|
Rated Output Power
|
5,000W
|
|
|
Max. Peak Power
|
11,000VA
|
|
|
Rated Output Voltage
|
120Vac
|
✓
|
|
Load Capacity of Motors
|
4HP
|
|
|
Rated AC Frequency
|
50Hz/60Hz
|
✓
|
|
Waveform
|
Pure Sine Wave
|
|
|
Switch Time
|
10ms（typical）
|
|
|
BATTERY
|
||
|
Battery Type
|
Lead-acid / Li-ion / User defined
|
✓
|
|
Rated Battery Voltage
|
48V
|
|
|
Voltage Range
|
40～60Vdc
|
✓
|
|
Max. MPPT Charging Current
|
80A
|
✓
|
|
Max. Mains/Generator Charging Current
|
40A
|
✓
|
|
Max. Hybrid Charging Current
|
80A
|
✓
|
|
PV INPUT
|
||
|
Num. of MPPT Trackers
|
1
|
|
|
Max.PV Array Power
|
6,000W
|
|
|
Max.Input Current
|
22A
|
|
|
Max.Voltage of Open Circuit
|
500Vdc
|
|
|
MPPT Voltage Range
|
120-450Vdc
|
|
|
UTILITY/ GENERATOR INPUT
|
||
|
Input Voltage Range
|
90～140Vac
|
✓
|
|
Frequency Range
|
50/60Hz
|
|
|
Bypass Overload Current
|
63A
|
|
|
EFFICIENCY
|
||
|
MPPT Tracking Efficiency
|
99.9%
|
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
|
GENERAL
|
||
|
Dimensions
|
426*322*126mm (1.40*1.06*0.41ft)
|
|
|
Weight
|
11.6kg (25.57lb)
|
|
|
Protection Degree
|
IP20, indoor onIy
|
|
|
Operating Temperature Range
|
-10℃~55℃
|
|
|
Noise
|
≤60dB
|
|
|
Cooling Method
|
Forced air cooling with adjustable air speed
|
|
|
Warranty
|
18 Months
|
|
|
COMMUNICATION
|
||
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
✓
|
|
External Modules（Optional）
|
Wi-Fi / GPRS
|
✓
|
|
CERTIFICATION
|
||
|
Safety
|
CE(IEC 62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA
|
|
|
EMC
|
EN61000
|
|
|
RoHS
|
Yes
|
|
FAQ
Q1: What is the SRNE HSI 5000U solar inverter?
A: The SRNE HSI 5000U is a 5kW 48V split phase hybrid solar inverter designed for residential solar energy storage and off grid power systems. It integrates solar charging, battery management, and pure sine wave AC output to provide reliable backup power solutions.
Q2: Is the SRNE HSI 5000U a hybrid or off grid solar inverter?
A: The HSI 5000U is a hybrid off grid solar inverter that supports solar power generation, battery storage, and backup power applications. It can efficiently manage energy flow between solar panels, batteries, and household loads.
Q3: What battery voltage does the HSI 5000U support?
A: The SRNE HSI 5000U supports 48V battery systems, including lithium-ion batteries and lead acid batteries. It also supports lithium battery BMS communication for safer and smarter energy management.
Q4: Is this inverter suitable for the North American market?
A: Yes. The HSI 5000U is specially designed for the North American market with split phase AC output, making it suitable for residential backup power systems, off grid homes, cabins, and solar energy storage applications.
Q5: What is the maximum efficiency of the SRNE HSI 5000U?
A: The inverter features advanced MPPT technology with up to 99.9% MPPT efficiency, helping maximize solar energy harvesting and improve overall system performance.
Q6: Can the HSI 5000U work with lithium batteries?
A: Yes. The SRNE HSI 5000U is compatible with lithium batteries and supports lithium battery BMS communication. This allows intelligent battery monitoring, protection, and optimized charging and discharging performance.
Q7: Does the SRNE HSI 5000U provide pure sine wave output?
A: Yes. The inverter provides high-quality pure sine wave AC output, ensuring stable and reliable power for sensitive household appliances and electronic devices.
Q8: What applications can use the 5kW 48V split phase inverter?
A: The HSI 5000U is ideal for residential solar systems, off grid houses, backup power systems, remote areas, RV solar applications, and small commercial energy storage projects.
