51.2V 314Ah Residential Low Voltage ESS Growatt 16kWh Home Storage Lithium Battery
51.2V 314Ah Residential Low Voltage ESS Growatt 16kWh Home Storage Lithium Battery
Model No :
HOPE 16.0LM-A1Nominal Voltage :
51.2VRated Capacity :
314AhWeight :
120KG16kWh Low Voltage LiFePO4 Battery Energy Storage System

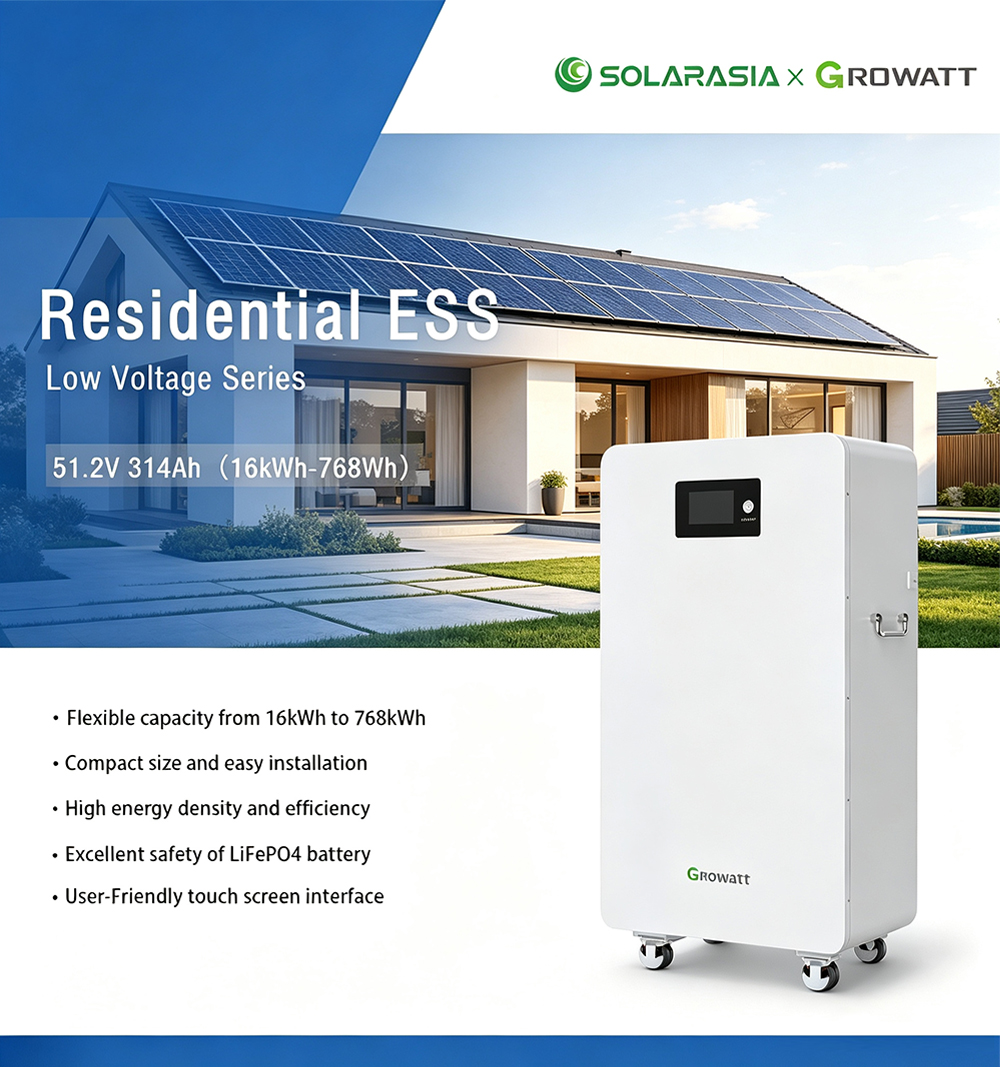

HOPE 16.0LM-A1 is a 16kWh 51.2V low voltage LiFePO4 battery energy storage system designed for residential solar energy storage, backup power, and small commercial energy storage applications. Equipped with advanced lithium iron phosphate battery technology, this system delivers high safety, excellent reliability, and long service life for modern solar power solutions.
With a modular design and support for up to 48 units connected in parallel, the battery storage system can be expanded from 16kWh to 768kWh, providing flexible energy capacity for different application requirements. It is an ideal solution for homeowners, installers, and energy solution providers seeking a scalable and efficient solar battery storage system.
Key Features
The HOPE 16.0LM-A1 provides 16kWh nominal energy capacity and 15.3kWh usable capacity, offering sufficient energy storage for daily household electricity consumption, solar self-consumption, and emergency backup power.
Built with LiFePO4 (Lithium Iron Phosphate) battery cells, this energy storage system provides excellent thermal stability, high safety performance, and reliable operation. The advanced battery chemistry helps reduce safety risks while maintaining long-term energy output.

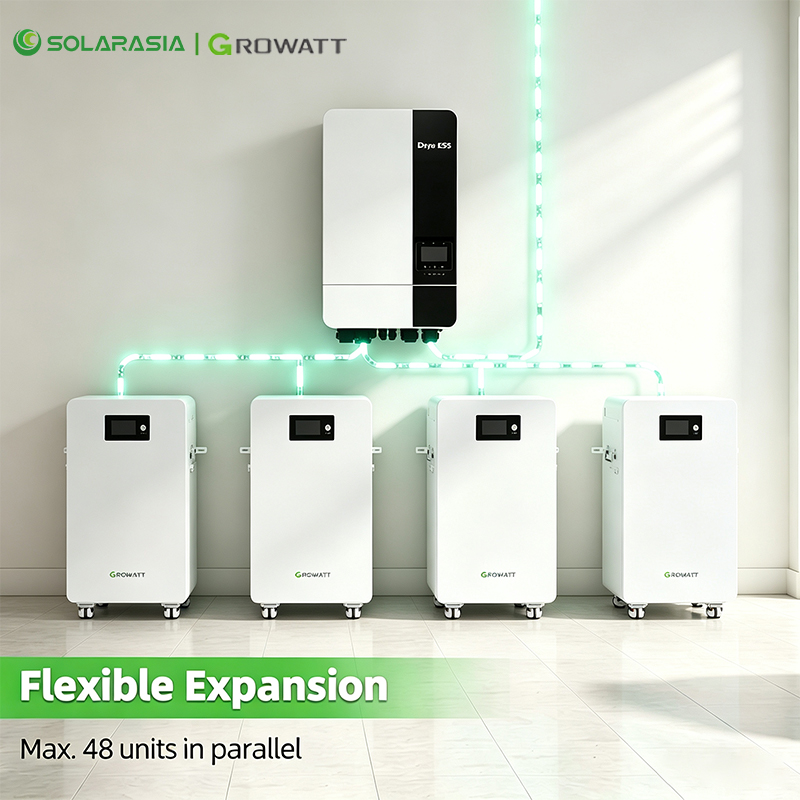

The modular battery design supports up to 48 units in parallel, allowing flexible system expansion from 16kWh to 768kWh. Users can easily increase storage capacity according to future energy demands without replacing the existing system.
With a 51.2V nominal voltage and low voltage architecture, HOPE 16.0LM-A1 is compatible with various low voltage hybrid solar inverters. It provides an efficient solution for residential solar systems, off-grid applications, and backup power systems.
The battery supports up to 6000 cycles under standard testing conditions, ensuring reliable performance and long-term value. With 95% depth of discharge (DOD), it maximizes usable energy and improves overall system efficiency.
Equipped with CAN and RS485 communication interfaces, the battery system enables intelligent monitoring and seamless integration with compatible solar inverters and energy management systems.

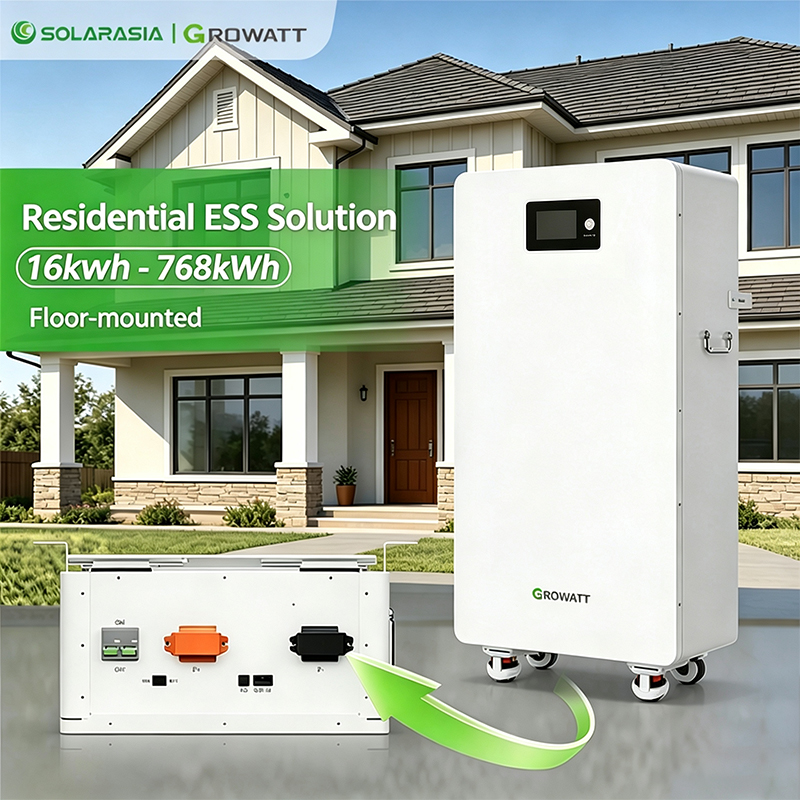

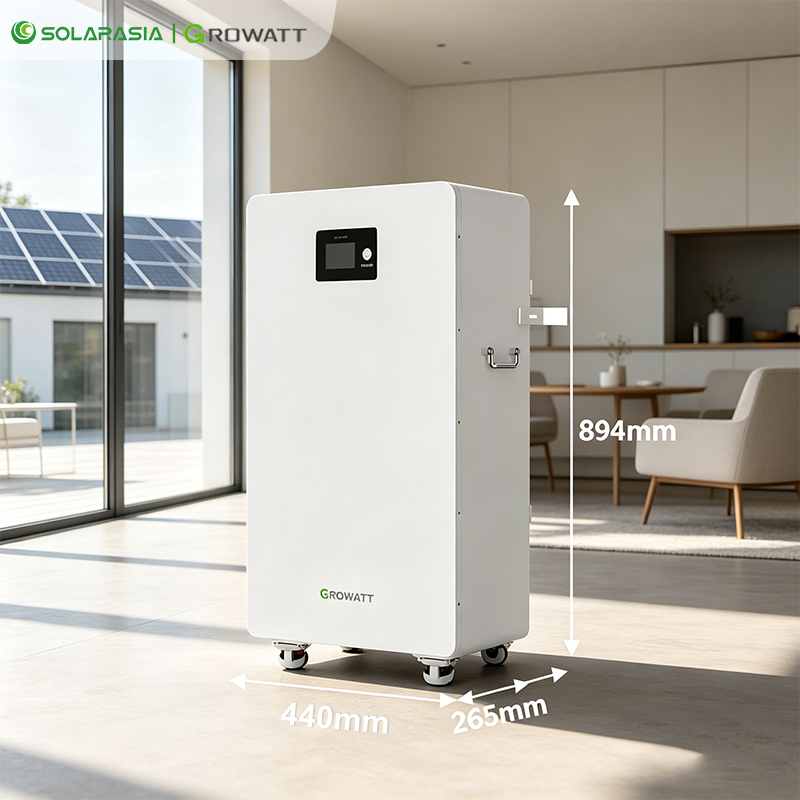

The floor-standing design provides convenient installation and maintenance. The compact structure makes it suitable for residential buildings, villas, small businesses, and distributed solar energy projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HOPE 16.0LM-A1 |
| Battery Type | LiFePO4 |
| System Type | Low Voltage Energy Storage System |
| Nominal Voltage | 51.2V |
| Rated Capacity | 314Ah |
| Nominal Energy | 16kWh |
| Usable Capacity | 15.3kWh |
| Operating Voltage | 40~58.4V |
| Max. Charge/Discharge Current | 150A/200A |
| Depth of Discharge | 95% |
| Cycle Life | 6000 Cycles |
| Expansion Capacity | Up to 768kWh |
| Parallel Connection | Max. 48 Units |
| Communication | CAN / RS485 |
| Installation | Floor Standing |
| Battery Chemistry | Lithium Iron Phosphate |
Applications
Store excess solar power generated during the day and use it at night to increase solar self-consumption and reduce electricity costs.
Provide reliable backup electricity during grid outages to keep essential household appliances running.
Combine with solar panels and hybrid inverters to create independent energy solutions for remote areas.
Support small businesses with scalable energy storage for peak shaving, energy management, and backup power.
FAQ
Q1: What is the capacity of HOPE 16.0LM-A1 battery?
HOPE 16.0LM-A1 has a 16kWh nominal energy capacity and 15.3kWh usable capacity. The system can be expanded up to 768kWh through parallel connection.
Q2: Is HOPE 16.0LM-A1 a high voltage battery?
No. It is a 51.2V low voltage LiFePO4 battery energy storage system designed for residential and small commercial applications.
Q3: How many batteries can be connected in parallel?
Up to 48 battery units can be connected in parallel to expand the total storage capacity.
Q4: What inverter can work with this battery?
The battery supports CAN and RS485 communication and can work with compatible low voltage hybrid solar inverters.
Q5: How long is the battery lifespan?
The battery provides up to 6000 cycles under standard conditions, ensuring reliable long-term operation.
