Custom Solar Panel System 70 Kw 80Kw 90 Kw 100Kw 110Kw On Grid Solar System Project
Custom Solar Panel System 70 Kw 80Kw 90 Kw 100Kw 110Kw On Grid Solar System Project
Custom Solar Panel System 70kW–110kW On Grid Solar System using Deye inverter delivers high efficiency power generation for commercial and industrial projects, reducing electricity costs with reliable grid tied performance and smart monitoring. This on grid solar system project supports customized design with Tier-1 solar panels and Deye on grid inverter, and is available with flexible configuration options; MOQ: 1 set.
Complete 100kw On Grid Solar Panel System Kit Components
| Item | Model | Description | Quantity |
| 1 | 630Watt | Mono solar panel | 159pcs |
| 2 | On grid Solar Inverter | Power: 100kw | 1 set |
| 3 phase:380V | |||

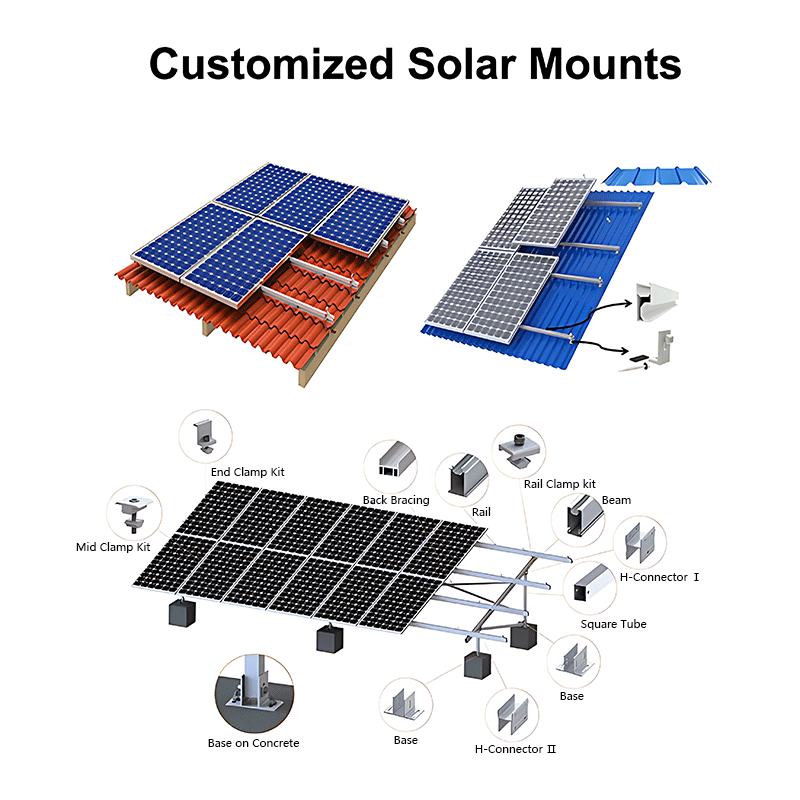

| 3 | Mounting System | Whole set for roof and ground | 1 set |

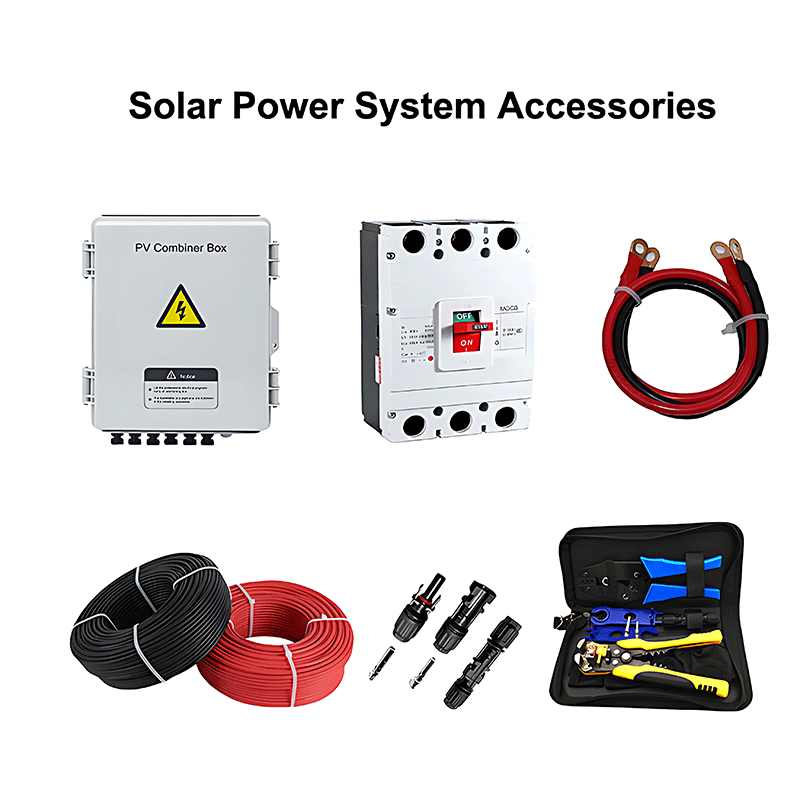

| 4 | PV Cables | 6mm2 PV cables | 300m |
| 5 | PV connector | Rated Voltage:1000V | 20 pairs |

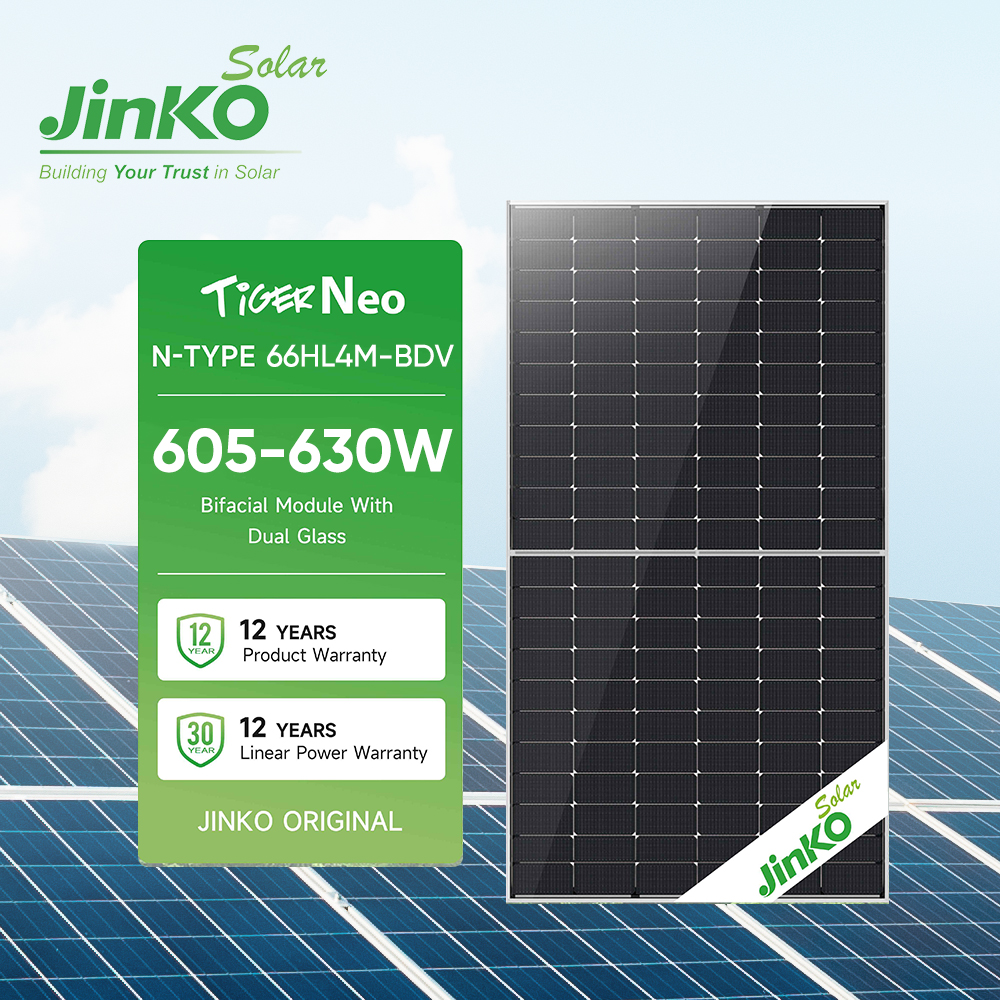

1.Solar Panel Efficiency:22.32%
2.Solar Panel Size:2382×1134×30 mm
3.Cell size:182mmx182mm
4.Maximum system Voltage: 1500 VDC (IEC)
5.Warranty:25 years

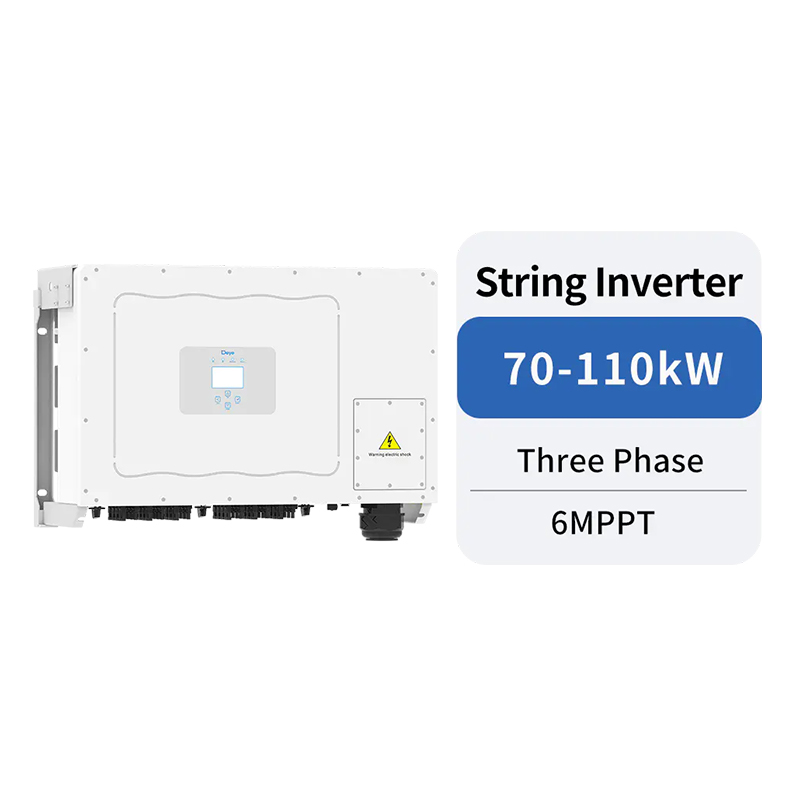

100KW On Grid Solar Inverter
1.MPPT voltage range(V):200-850
2.Max. Efficiency：98.80%
3.Ingress Protection(IP) Rating：IP65
4.Warranty:5 years
FAQ
Q1: What is a 70kW–110kW on grid solar system?

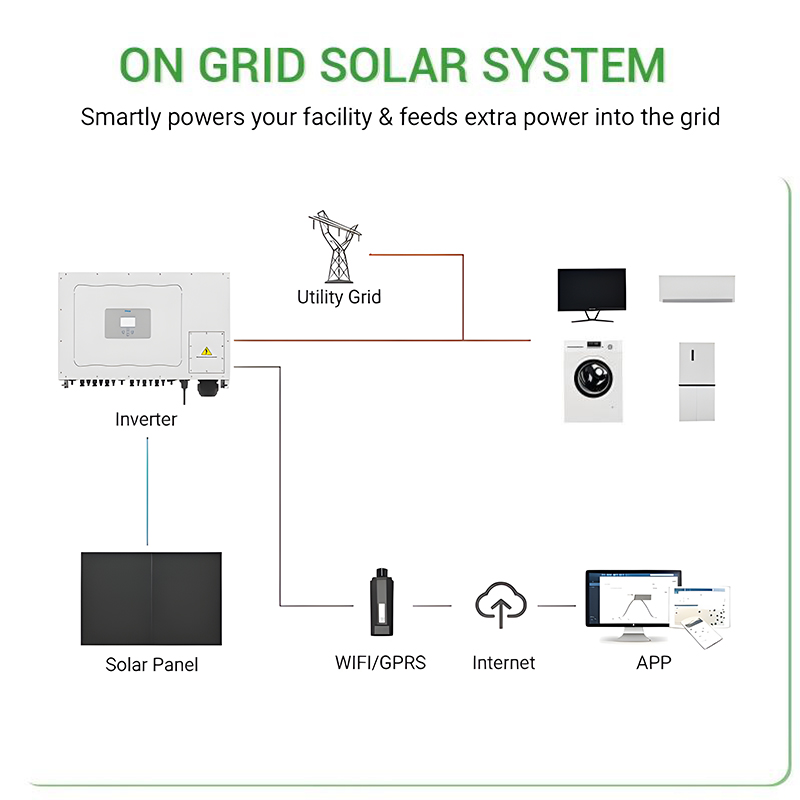

A1: A 70kW–110kW on grid solar system is a commercial and industrial solar power solution connected directly to the utility grid. It generates solar electricity from solar panels and uses a Deye on grid inverter to synchronize power with the grid, helping reduce electricity bills and operational costs.
Q2: Does the system include a Deye inverter?
A2: Yes, this solar system is specially designed with a Deye inverter to ensure high conversion efficiency, stable grid connection, and smart monitoring through app or web platform.
Q3: What applications are suitable for this solar system range?
A3: The 70kW, 80kW, 90kW, 100kW, and 110kW on grid solar systems are ideal for factories, warehouses, farms, schools, shopping centers, and commercial buildings requiring large scale power generation.
Q4: Can the solar panel system be customized?
A4: Yes, the custom solar panel system can be fully tailored, including panel type, mounting structure, cable length, monitoring options, and system capacity based on site conditions and power demand.
Q5: What is the MOQ (minimum order quantity)?
A5: The minimum order quantity (MOQ) for this on grid solar system project is 1 set.
Q6: Does the system include batteries?
A6: No, this is an on grid solar system without battery storage. If you need energy storage, we can also provide hybrid solar systems and BESS energy storage systems.
