1500V 6250kVA 6600kVA Central Solar Inverter MV Turnkey Solution for Utility Scale Solar Power Plant

Central Solar Inverter MV Turnkey Solution for Utility Scale PV Power Plants

The Central Solar Inverter MV Turnkey Solution is an integrated power conversion system designed for 1500V utility scale photovoltaic power plants. Combining a central solar inverter, medium voltage transformer, and MV switchgear into one compact station, it significantly reduces installation time, simplifies system integration, and lowers overall project costs.

Available in 6250kVA and 6600kVA models, this solution delivers up to 99.02% conversion efficiency and supports 10kV to 35kV medium voltage output for direct grid connection. It is an ideal choice for EPC contractors, utility developers, and large scale solar energy projects worldwide.

Key Features

1. 1500V Utility Scale Solution: Designed for large scale photovoltaic power plants, supporting 1500V DC systems to reduce BOS costs and improve overall project efficiency.

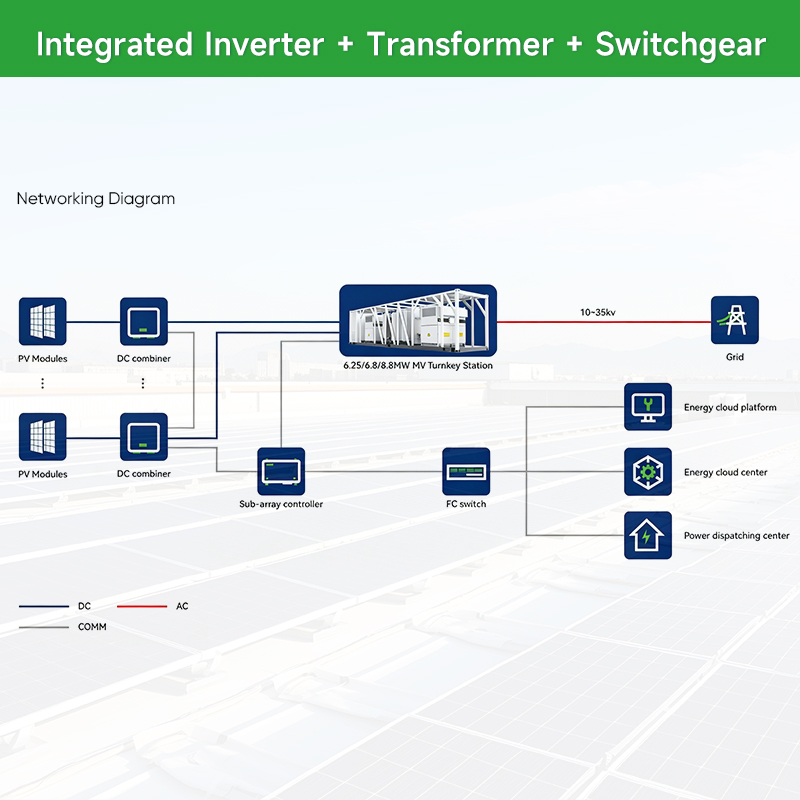

2. Integrated Inverter Transformer Station: Combines a central solar inverter, medium voltage transformer, and MV switchgear into one compact unit for faster installation and simplified operation.
3. High Conversion Efficiency: Delivers up to 99.02% maximum efficiency, maximizing energy yield and ensuring reliable power conversion for utility scale solar projects.
4. Medium Voltage Output: Supports 10kV to 35kV medium voltage output for direct grid connection, reducing additional equipment requirements and installation complexity.
5. Reliable Grid Support: Provides advanced grid support functions including reactive power control, low voltage ride through, and stable operation under various grid conditions.
6. Smart Monitoring and Communication: Equipped with a touch screen, RS485, Ethernet, and optional optical fiber communication for convenient remote monitoring and system management.
7. Industrial Grade Protection: Features IP65 protection for the inverter section, integrated surge protection, and multiple electrical safety functions for long term outdoor operation.
8. Easy Installation and Maintenance: Factory integrated design minimizes onsite work while improving system reliability and maintenance efficiency.
9. High Power Capacity: Available in 6250kVA and 6600kVA models, providing reliable and efficient power conversion for large utility scale photovoltaic power plants.

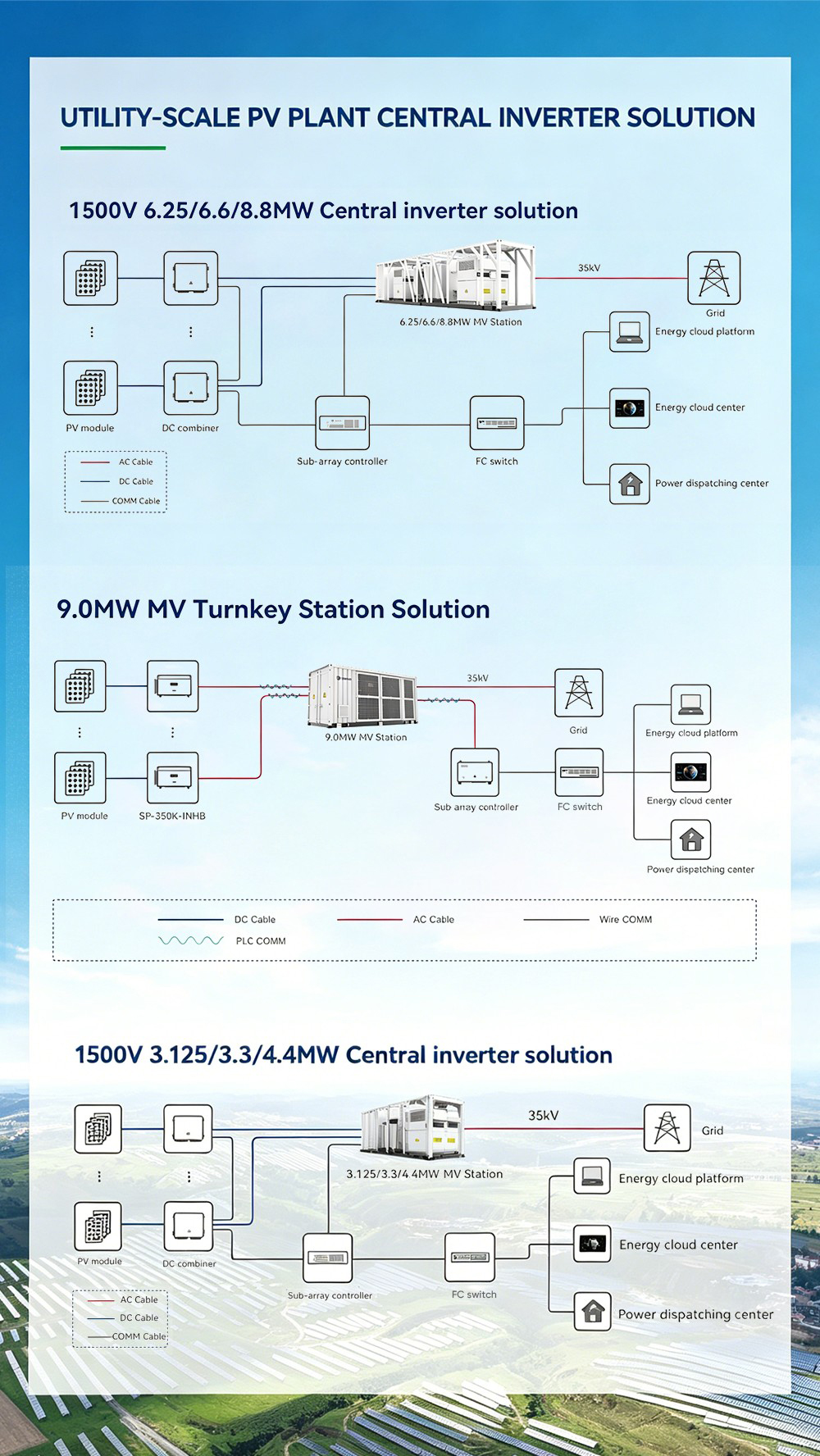

Common Solutions

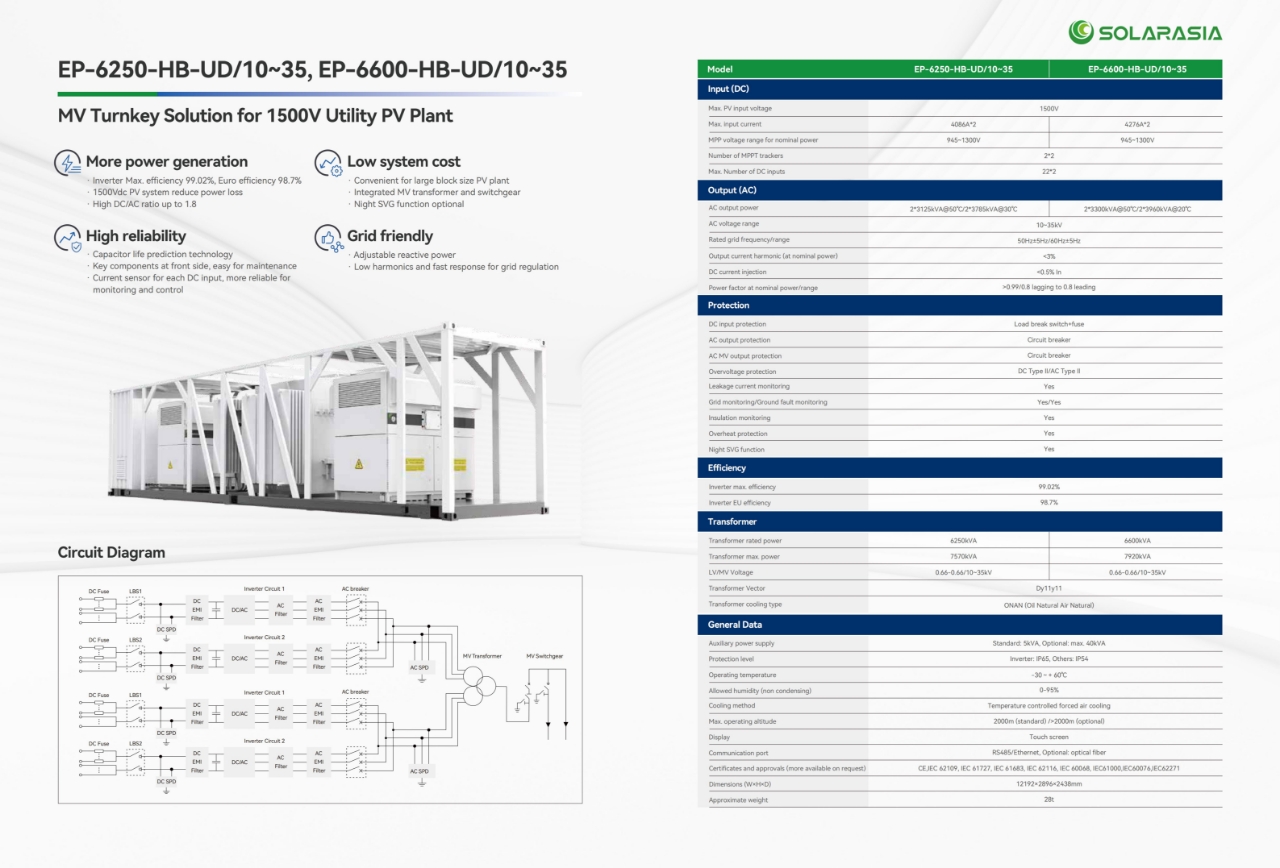

Technical Specifications

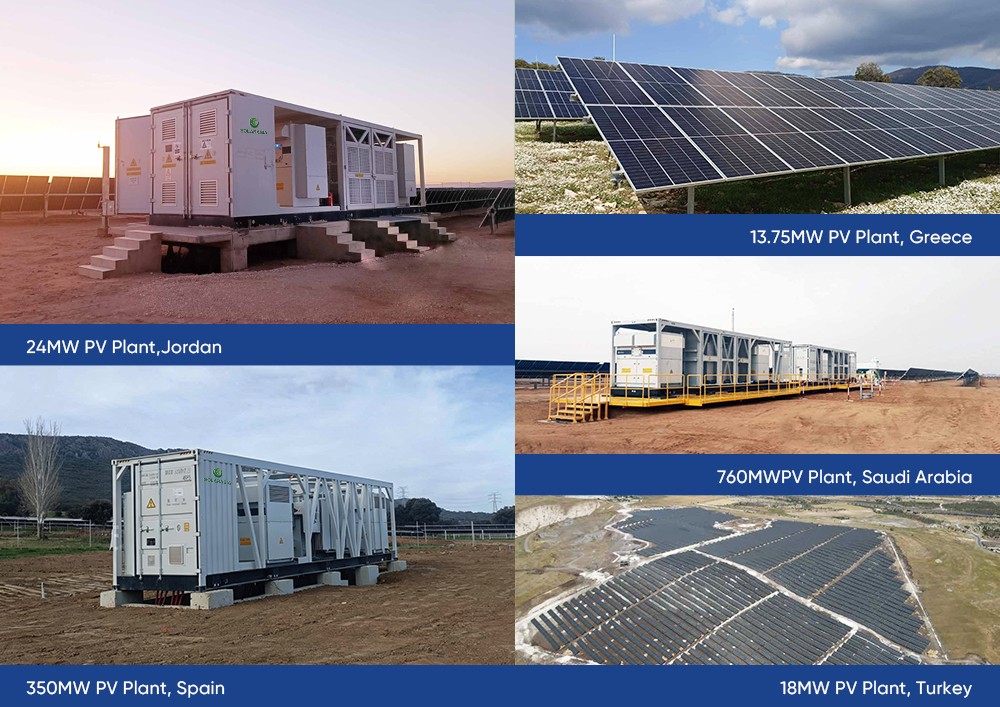

Project Case Studies

Applications

The Central Solar Inverter is widely used in:

• Utility scale photovoltaic power plants
• Large ground mounted solar farms
• Industrial and commercial solar projects
• Independent power producer projects
• Government renewable energy projects
• Utility grid connected photovoltaic systems

OEM and Customization

We provide comprehensive OEM, ODM, and project customization services for global customers. Voltage level, transformer configuration, communication interfaces, monitoring functions, and other technical specifications can be customized according to project requirements. Our experienced engineering team supports EPC contractors, distributors, and solar project developers with reliable products and professional technical assistance.

Frequently Asked Questions

Q1:What is included in the MV Turnkey Solar Inverter Transformer Integrated Station?

A:The system integrates a central solar inverter, medium voltage transformer, MV switchgear, monitoring system, and protection devices into one compact solution, reducing installation time and simplifying project deployment.

Q2:What type of solar projects is this product suitable for?

A:It is designed for utility scale photovoltaic power plants, large ground mounted solar farms, and commercial renewable energy projects requiring medium voltage grid connection.

Q3:What DC input voltage does the system support?

A:The system supports up to 1500V DC photovoltaic input, making it compatible with modern high efficiency solar module configurations.

Q4:What is the output voltage of this integrated station?

A:The output voltage can be configured from 10kV to 35kV, depending on the project and local grid requirements.

Q5:What is the maximum inverter efficiency?

A:The central inverter provides up to 99.02% maximum conversion efficiency, helping maximize energy production and system performance.

Q6:Can you provide OEM or customized solutions?

A:Yes. We support customized voltage, transformer configuration, communication interfaces, and project specific solutions according to customer requirements.
