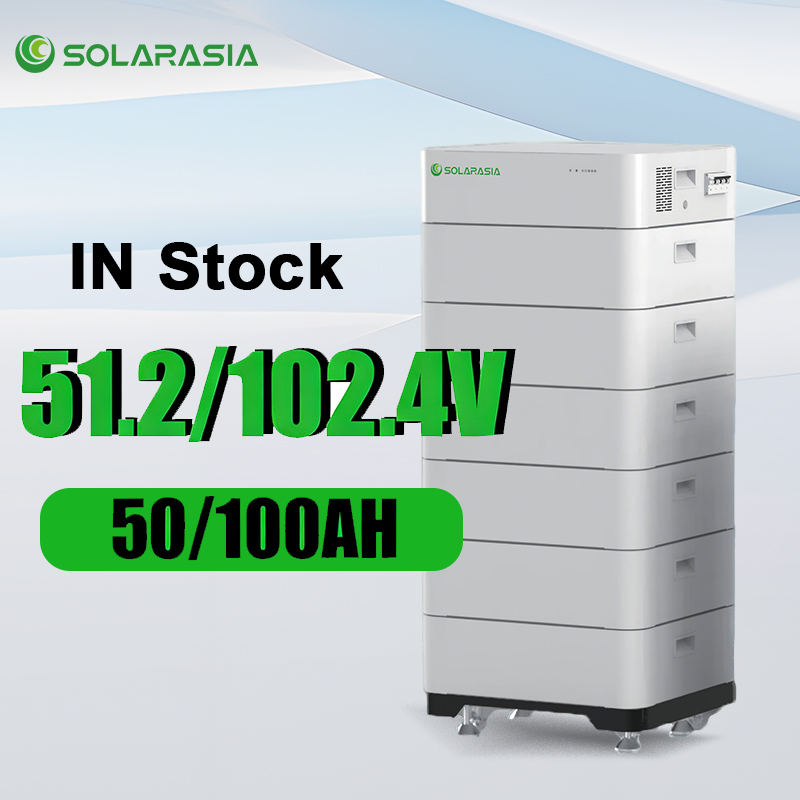

51.2V 100Ah Stacked Lithium ion Battery

Home

Stacked Lithium Battery

51.2V 100Ah Stacked Lithium ion Battery

51.2V 100Ah Stacked Lithium ion Battery

Perfect Compatibility; Compact Design; Fast Installation; Flexible Investment; Safety; Long Life.

  • Model No :

    TG-SS-51LVP2 / TG-SS-51LVP3 / TG-SS-51LVP4
  • Nominal Voltage :

    51.2V
  • Weight :

    14+(48*2 / 48*3 / 48*4)
  • Dimension :

    480*600*150mm / 480*650*180mm / 480*650*225mm / 490*840*242mm
  • Maximum Solar Charge Current :

    100A

51.2V 100Ah Stacked Lithium ion Battery

  • Perfect Compatibility: Compatible to mostinverter brands on the market;
  • Compact Design: Small footprint/640*205mm;
  • Fast Installation: Plug & Play battery interface/Plug in modular design;
  • Flexible Investment: Upto 20kWH per systemand supporting up to 5 pcsparallel configuration;
  • Safety: BMS & Breaker modularlevel protection;
  • Long Life: 6000 cycleslong working lifespan.

51.2V 100Ah Stacked Lithium ion Battery

Model TG-SS-51LVP2 TG-SS-51LVP3 TG-SS-51LVP4
Energy storage(KWH) 10.24 15.36
20.48
Cycle life 6000 cycles @80% DOD, 0.5C
Rate voltage(Vdc) 51.2V
Months self discharge ≤ 2%
Charge voltage(W) 56
Max. charge current(A) 100
Max. discharge current(A) 100
Discharge cut-off voltage(VDC) 43.2
Charge cut-off voltage(VDC) 58.4
Charge temperature 0°C to 55°C@60-25% Relative Humidity
Discharge temperature -20°C to 55°C@60-25% Relative Humidity
Storage temperature -20°C to 55°C@60-25% Relative Humidity
IP class IP65
Case type Stand Stack
Pack dimension L*W*H(mm) 640*205*897 640*205*1239
640*205*1581
Package dimension L*W*H(mm)

760*335*450*2

705*395*240*1

760 335*450*3

705*395*240*1

760*335*450*4

705*395*240*1

Net weight(kg) 14+48*2
14+48*3
14+48*4
Gross weight(kg) 21+53*2
21+53*3
21+53*4
Protocol(Optional) CANBUs/RS485/RS232
Monitoring Bluetooth/WLAN Optiona
Cell UN38.3, MSDS
Pack UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
                                                                   15S(48V) models also available
