How Solar Panels and Inverters Work Together in a PV System
A solar PV system is more than a collection of solar panels. Solar panels generate DC electricity, while solar inverters convert that DC electricity into AC electricity for use by electrical loads or connection to the grid. When battery storage is added, a BESS can store and later discharge electrical energy according to the system design and operating strategy.
Understanding how these components work together is important when designing or purchasing a complete solar energy system.
For residential, commercial, industrial and utility scale projects, choosing compatible solar panels, inverters and battery storage can affect system design, installation and overall project performance.
This guide explains how solar panels, solar inverters and BESS work together, what specifications need to be considered, and how to approach system selection.
What Is a Solar PV System?
A photovoltaic (PV) system converts sunlight into electricity using semiconductor-based solar cells.

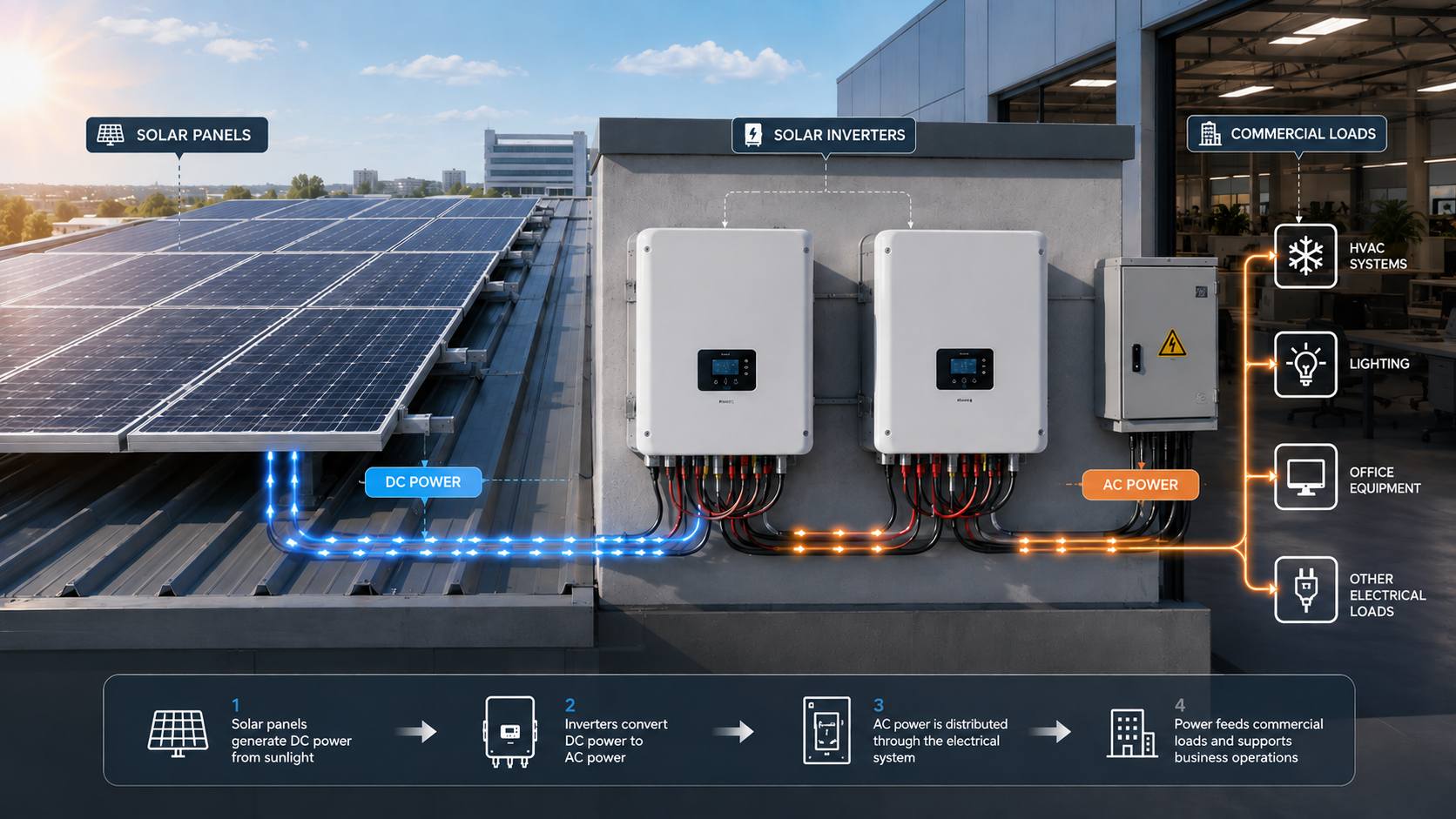

At its simplest, the energy flow looks like this:
Sunlight → Solar Panels → DC Electricity → Solar Inverter → AC Electricity → Loads / Grid
A system with battery storage adds another pathway:
Solar Panels → Inverter / Charging System → BESS → Inverter → Loads / Grid
The exact architecture depends on the equipment selected and the project's requirements.
A typical complete system may include:
The solar panels and inverter are therefore closely connected, but they perform different functions.
How Do Solar Panels Generate Electricity?
Solar panels contain photovoltaic cells that convert sunlight into direct current (DC) electricity.
The electrical output of a module changes depending on factors such as:
A solar panel's datasheet normally provides important electrical specifications, including:
These specifications are essential when designing the connection between the PV array and inverter.
What Does a Solar Inverter Do?
A solar inverter is a key component between the PV array and the AC electrical system.
Solar panels generate DC electricity, while most building electrical loads and conventional utility grids operate using AC electricity.
The inverter performs the conversion from DC to AC.
Depending on the inverter type and system configuration, it may also provide functions related to:
The exact functions depend on the inverter model.
This makes inverter selection just as important as solar panel selection.

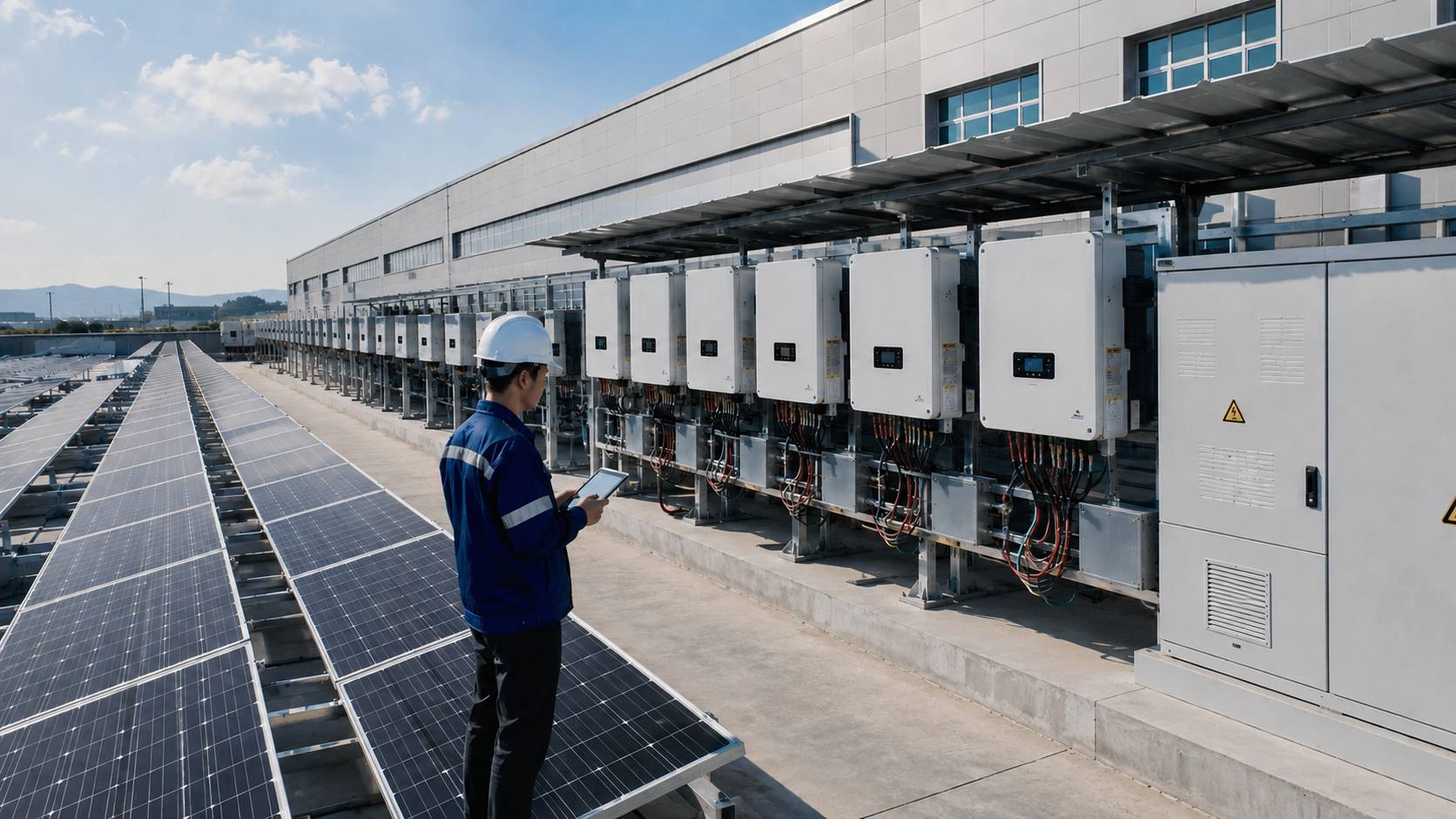

How Solar Panels and Inverters Work Together
The relationship can be summarized in four basic steps.
Step 1: Solar Panels Capture Sunlight
Solar modules receive sunlight and generate DC electricity.
The amount of electricity generated varies throughout the day according to solar conditions.
Step 2: PV Modules Are Connected Into Strings
Individual modules can be connected in series to create PV strings.
When modules are connected in series, their voltages add while the current remains approximately that of the string under the relevant operating conditions.
Multiple strings can then be connected to the inverter according to the system design.
The final configuration must remain within the inverter's electrical limits.
Step 3: The Inverter Tracks and Converts the DC Power
The inverter uses its MPPT system to operate the PV array around its maximum power point within the inverter's operating range.
It then converts the DC electricity into AC electricity.
The AC output can be directed toward the project's loads, grid connection or other equipment depending on the system architecture.
Step 4: Electricity Is Used, Exported or Stored
Once electricity reaches the AC side, the system can use it according to its configuration.
For a grid-connected system, electricity may:
When BESS is integrated, some electricity can also be directed to battery storage.
Why Solar Panel and Inverter Compatibility Matters
Choosing a solar panel and inverter independently can create unnecessary design problems.
The PV array needs to operate within the inverter's electrical specifications.
Important parameters include:
Maximum DC Voltage
The PV string's voltage should not exceed the inverter's maximum allowable DC input voltage.
Temperature must be considered because PV module voltage changes with temperature.
MPPT Voltage Range
The PV array's operating voltage should fall within the inverter's MPPT operating range under expected conditions.
Maximum DC Input Current
The current from connected PV strings needs to comply with the inverter's input current limitations.
Number of MPPTs
The number of MPPT channels can influence how different PV strings are configured, particularly when roof orientations or shading conditions vary.
For professional projects, these calculations should be verified by a qualified system designer using the exact module and inverter datasheets.
What Is MPPT and Why Does It Matter?
MPPT stands for Maximum Power Point Tracking.
A solar panel does not produce exactly the same amount of power at all operating points.
The inverter's MPPT system continuously adjusts the electrical operating point to obtain available power from the PV array within its design limits.
For example, a commercial rooftop may contain different roof orientations.
If separate PV sections have significantly different operating characteristics, multiple MPPT inputs can provide greater design flexibility.
This is one reason buyers should consider more than the inverter's nominal power rating.

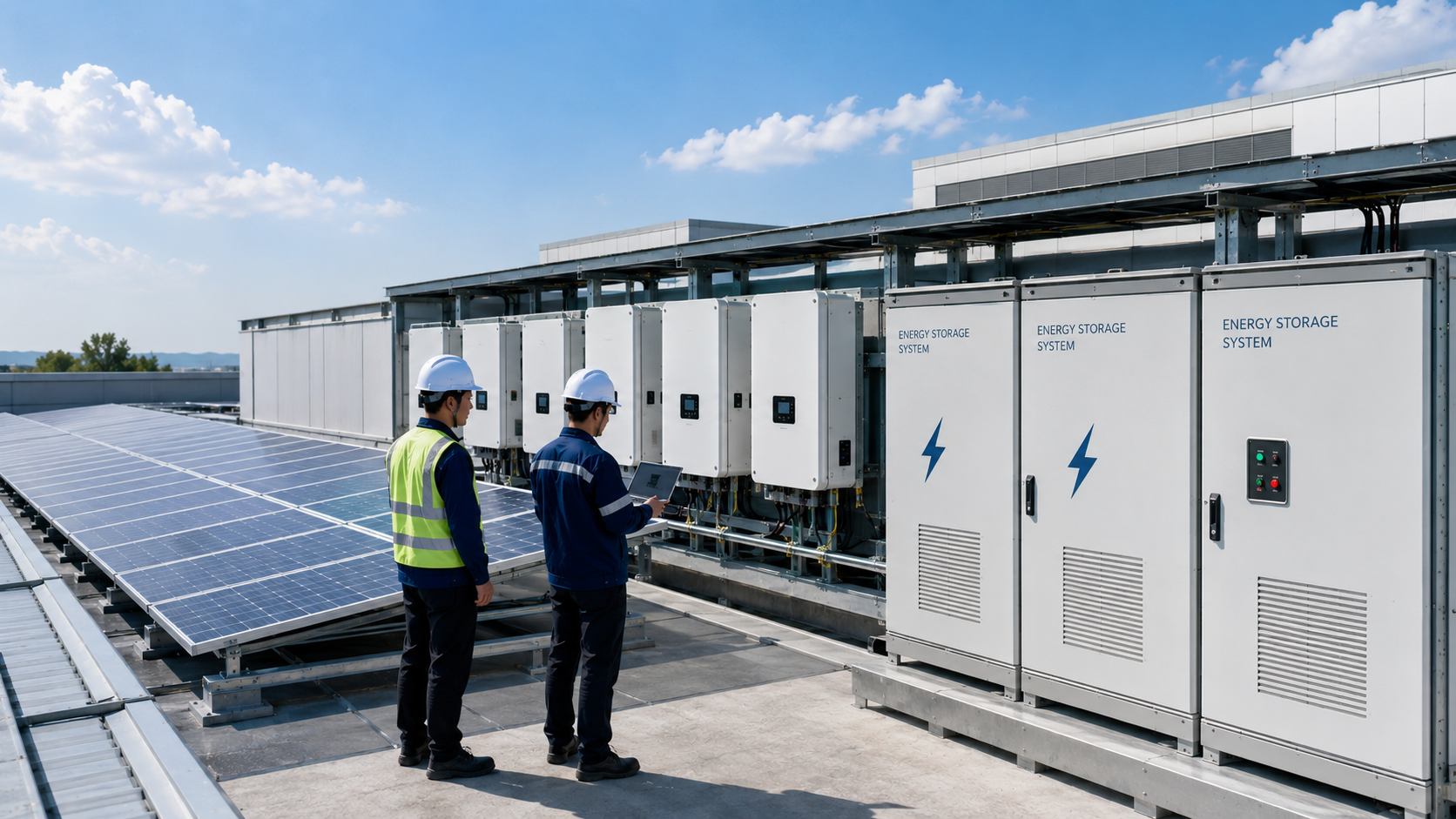

How Does BESS Work With Solar Panels and Inverters?
Battery Energy Storage Systems, commonly called BESS, add energy storage capabilities to a solar PV system.
Instead of using all solar generation immediately, the system can store some electrical energy for later use when the system architecture and operating strategy support it.
A simplified energy flow is:
Solar Panels → Inverter / Energy Management → BESS → Loads
Depending on the configuration, energy can also move between the grid, inverter, BESS and loads.
This can make solar-plus-storage systems useful for applications where energy needs to be managed beyond the period of solar generation.
Why Add BESS to a Solar PV System?
The reasons for adding battery storage vary by project.
Potential applications include:
Storing Excess Solar Generation
When solar generation exceeds immediate demand, a compatible system can direct some energy toward battery storage.
Using Stored Energy Later
Stored energy can potentially be discharged when solar generation is lower, subject to system design and battery operating limits.
Energy Management
Commercial and industrial projects may use BESS as part of a broader energy management strategy.
Backup Applications
Some systems can provide backup power when appropriately designed and equipped. The actual backup capability depends on the inverter, BESS, electrical architecture and applicable requirements.
BESS should therefore be viewed as part of an integrated energy system rather than simply “a larger battery.”

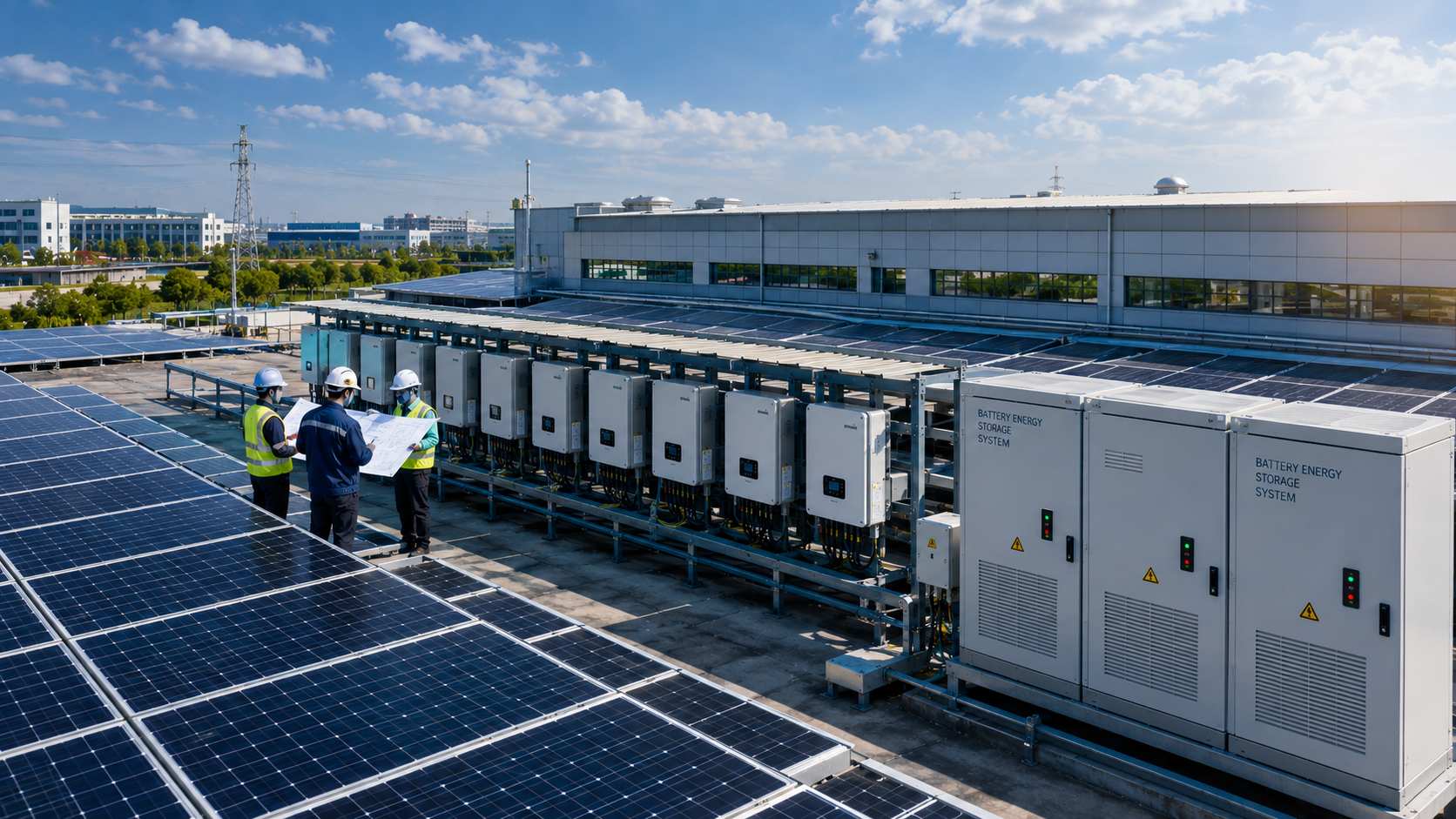

Solar Panels + Inverter + BESS: A Complete Energy System
When solar panels, an inverter and BESS are combined, the system can be designed around multiple energy flows.
A simplified example is:
SUNLIGHT
↓
SOLAR PANELS
↓
DC POWER
↓
SOLAR INVERTER
↙ ↘
AC LOADS BESS
↑ ↓
└──────────┘
↓
GRID / LOAD
The actual architecture varies.
Some systems use hybrid inverters that integrate PV and battery management functions, while larger projects may use separate equipment for different parts of the energy system.
The correct architecture depends on:
How to Choose Solar Panels for an Inverter Based System
When selecting solar panels, start with the inverter and overall project design rather than looking only at module wattage.
1. Check Module Power
Higher power modules can reduce the number of modules needed for a particular DC capacity.
However, physical dimensions and electrical characteristics should also be considered.
2. Check Module Efficiency
High efficiency modules can be particularly useful where installation space is limited.
3. Check Voltage and Current
Compare:
with the inverter's DC input specifications.
4. Consider Temperature Characteristics
Module voltage changes with temperature, so string design should account for expected temperature conditions.
5. Consider Module Technology
Depending on the application, buyers may evaluate:
Technology selection should be based on project requirements and verified product specifications.
How to Choose the Right Solar Inverter
The inverter should be selected according to both the PV array and the electrical requirements of the project.
Important considerations include:
Inverter Capacity
The inverter's rated output should be appropriate for the intended system design.
DC Input Range
The inverter must accommodate the designed PV string voltage and current.
MPPT Configuration
Multiple MPPTs can provide greater flexibility for systems with different orientations or operating conditions.
Grid Requirements
Grid connected projects need to comply with applicable local requirements and the inverter's certifications.
Battery Compatibility
If BESS is planned, confirm whether the inverter supports the intended battery architecture and operating strategy.
Should You Oversize the Solar Array?
In some PV designs, the installed DC capacity of the solar array can be higher than the inverter's nominal AC output capacity.
This is often described using the DC-to-AC ratio.
For example:
PV array DC capacity ÷ inverter AC capacity
The appropriate ratio depends on the project, equipment specifications, site conditions and design objectives.
A higher ratio can increase the amount of DC generation available during periods when irradiance is lower, but it can also increase potential clipping under certain conditions.
Therefore, there is no universal DC-to-AC ratio that is best for every project.
The ratio should be determined through proper system design and energy yield analysis.
Solar + Inverter + BESS for Commercial Projects
Commercial buildings often have substantial daytime electricity consumption, which can make solar PV attractive for reducing reliance on grid electricity during periods of generation.
A commercial system might include:
Rooftop Solar Panels + Solar Inverters + BESS + Building Loads
The system can be designed around the building's actual energy consumption profile.
Before selecting equipment, project developers should evaluate:
The right equipment combination will vary from project to project.
Solar + Inverter + BESS for Utility Scale Projects
Large solar farms can also incorporate energy storage.
At this scale, the system architecture can become significantly more complex.
Design considerations may include:
For utility scale projects, the PV module should therefore be evaluated as one component of the complete power system.
Common Mistakes When Selecting Solar Panels and Inverters
Mistake 1: Choosing Panels Only by Wattage
A higher wattage does not automatically mean better overall project economics.
Mistake 2: Ignoring Electrical Compatibility
PV voltage and current must remain within the inverter's applicable limits.
Mistake 3: Selecting the Inverter After the Panels
Panel and inverter selection should be coordinated during system design.
Mistake 4: Treating BESS as an Independent Product
Battery storage should be evaluated alongside the inverter, load profile and energy management strategy.
Mistake 5: Focusing Only on Equipment Price
A complete evaluation should consider installation, logistics, system configuration and long-term project requirements.
Why Choose a Supplier That Understands the Complete System?
For professional buyers, the supplier's capabilities can be just as important as individual product specifications.
An EPC contractor or distributor may need access to several product categories, including:
Working with a supplier that understands how these products interact can simplify project communication and procurement.
This is particularly valuable when a customer is looking for a complete solar energy solution rather than individual solar components.
For Solar Asia Power, this broader solution-oriented approach can help connect the solar panel business with inverter and BESS applications while keeping the content relevant to real project requirements.
Solar Panels and Inverters: A Practical Selection Checklist
Before purchasing equipment, use the following checklist:
| Item | What to Check |
|---|---|
| Solar panels | Power and efficiency |
| Module technology | TOPCon, HJT, bifacial or other technology |
| Voc | Open-circuit voltage |
| Isc | Short-circuit current |
| Vmp | Voltage at maximum power |
| Imp | Current at maximum power |
| Inverter | DC voltage and current limits |
| MPPT | Voltage range and number of trackers |
| BESS | Compatibility and required capacity |
| Application | Residential, commercial, industrial or utility |
| Environment | Temperature, shading, humidity and other conditions |
| Certification | Requirements for the target market |
| Warranty | Applicable product terms |
| Supplier | Technical and project support |
This approach helps buyers evaluate the system as a whole.
FAQs
How do solar panels and inverters work together?
Solar panels generate DC electricity from sunlight. The solar inverter receives this DC power, tracks an appropriate operating point and converts it into AC electricity for electrical loads or grid connection, depending on the system configuration.
Can solar panels work without an inverter?
Solar panels can generate DC electricity without an inverter, but a conventional grid-connected PV system generally requires an inverter to convert the DC output into usable AC electricity and interface with the electrical system.
How do I match solar panels with a solar inverter?
Compare the solar module's Voc, Isc, Vmp and Imp with the inverter's maximum DC voltage, maximum input current and MPPT operating range. String design should also account for temperature and other site conditions.
Can BESS be added to a solar PV system?
Yes. A battery energy storage system can be integrated into a compatible solar PV architecture. The appropriate configuration depends on the inverter, battery system, load profile, grid requirements and project objectives.
What is the difference between a solar inverter and a hybrid inverter?
A conventional solar inverter is primarily designed to convert PV-generated DC electricity into AC electricity. A hybrid inverter can integrate PV generation and battery storage functions within a compatible system. The exact functionality varies by product.
Are bifacial solar panels compatible with solar inverters?
Yes, bifacial modules can be used with suitable inverters. Compatibility is determined by the module's electrical characteristics and the inverter's input specifications rather than whether the module is bifacial alone.
Is a high power solar panel always better?
No. High-power modules can reduce the number of modules required for a particular system capacity, but physical dimensions, electrical specifications, installation conditions, price and total system economics also matter.
Why is MPPT important in a solar PV system?
MPPT helps the inverter operate the PV array around an appropriate maximum power point within its operating range. This allows the system to make effective use of the available PV generation under changing conditions.
Do all solar PV systems need BESS?
No. Battery storage is not required for every solar PV system. A grid-connected PV system can operate without BESS. Storage becomes relevant when a project has specific energy-management, backup or other storage-related requirements.
What should EPC contractors consider when buying solar panels and inverters?
EPC contractors should evaluate module and inverter compatibility, system capacity, electrical specifications, installation conditions, certifications, warranties, logistics, supplier support and overall project economics.
Conclusion
Solar panels and inverters perform different but interconnected roles in a photovoltaic system.
The basic relationship is straightforward:
Solar panels generate DC electricity → the inverter converts DC to AC → the electricity supplies loads or interacts with the grid.
When battery storage is included, BESS adds another layer of energy management, allowing compatible systems to store and later discharge electricity according to the project's design and operating strategy.
For this reason, choosing the best equipment should not be based on one specification alone.
A professional system evaluation should consider:
Solar panels + inverter + BESS + site conditions + load profile + electrical requirements + project economics.
For distributors, EPC contractors and project developers, this system-level approach can also make it easier to identify suppliers capable of supporting complete solar energy projects.
Solarasia Power's Solar Panel product range can be explored here:
https://www.solarasiapower.com/solar-panel
As your content strategy develops, this type of article can also serve as a bridge between the Solar Panel, Solar Inverter and BESS sections of the website, helping establish a broader topical relationship around solar energy solutions.
Address : Room 908-909, Building 2, No. 469 Huatuo Lane, Shushan District, Hefei City, Anhui Province
Please read on, stay posted, subscribe, and we welcome you to tell us what you think.
Copyright 2026 @ Anhui Solarasia Energy Technology Co.,Ltd .All Rights Reserved. Sitemap | Blog | XML | Privacy Policy
Network Supported
